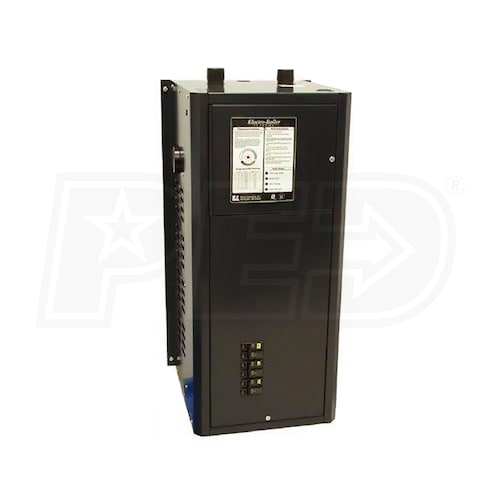

Electro Industries 92K BTU Electric Hot Water Boiler 27 kW 240V 1 Ph

Model:

EB-S-27

Write A Review
$3,568.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
synchrony card logo
$63 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Electro Industries 92K BTU Electric Hot Water Boiler 27 kW 240V 1 Ph
Electro Industries 92K BTU Electric Hot Water Boiler 27 kW 240V 1 Ph
Model: EB-S-27
$3,568.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Our most deluxe model is designed for multiple temperature and zoning applications. This model has the ability to sense water temperature and maintain an accurate boiler temperature output by only energizing the electric elements for needed output (not full capacity). This model eliminates extra costs associated with relays, extra temperature controls, zone boxes, etc. More experienced installers use this boiler to avoid the extra cost of the above.Outdoor sensing with outdoor reset capability. The target supply temperature ramps up as it is colder outside. As part of our EB-S TS Series Electric Boiler Series, the hot water electric boiler offers complete application flexibility. Features - 185 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money. EB-S TS Series Electro Boiler is Modulates at a tighter temperature control-Modulating.
  • Electro Industries EB-S-27 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays
  • Circulator switching relay - 10-amp maximum
  • Thermostat or end switch connection (R and W)
  • Load management control provisions
  • Heavy duty sheet metal enclosure
  • Supply pressure/temperature gauge
  • Safety relief valve (30 PSI)
  • Heating elements (20-year warranty)
  • 2-year parts warranty
  • Supply water sensing
  • Temperature range 90 F to 185 F
  • ASME/CSA listings
  • Made in the USA
  • Factory tested.

Specifications

EB-S-27
specs product image PID-18290
Overview
Product Category
Boiler
Additional Model Numbers

EB-S-27, EB-S-27

General Information
Product Line
EB-S
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Mount Type
Wall
Includes Pump
No
Assembly Type
Packaged
Performance
Heating Capacity
92151 BTU
Heating Capacity (kW)
27 kW
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
113 Amps
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
38 Inches
Product Width
17 Inches
Product Depth
17 Inches
Product Weight
155 Pounds
Shipping Weight
155 Pounds
Warranty Information
Vessel Warranty
20 Years
