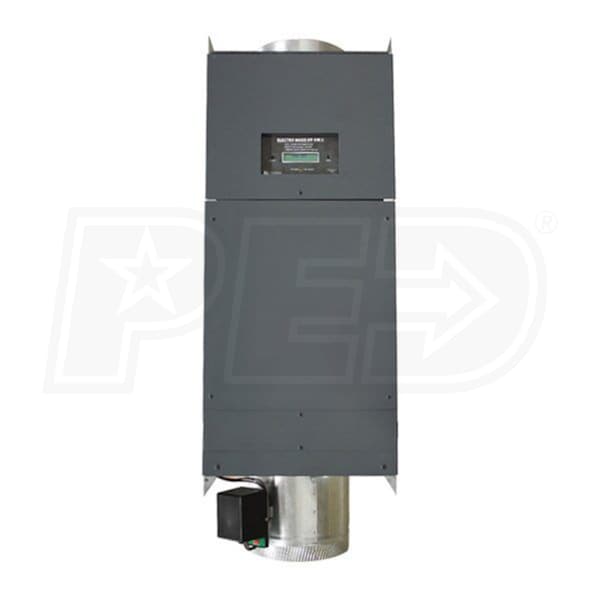

Electro Industries Make-Up Air II - Packaged Electric Make-Up Air Heater - 10 kW - 240 V - 1 Phase - 41.6 Amps - 600 CFM

Model:

EM-MD10-240-1-10

Write A Review
$2,884.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Electro Industries Make-Up Air II - Packaged Electric Make-Up Air Heater - 10 kW - 240 V - 1 Phase - 41.6 Amps - 600 CFM
Electro Industries Make-Up Air II - Packaged Electric Make-Up Air Heater - 10 kW - 240 V - 1 Phase - 41.6 Amps - 600 CFM
Model: EM-MD10-240-1-10
$2,884.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    In today's tightly built homes, unhealthy negative pressure can be created by appliances such as kitchen vent hoods, fireplaces, dryers, gas furnaces or any other appliance without sealed combustion. The Electro Industries Packaged Make-Up Air II units are designed to provide fresh air and positive pressure, reducing backdrafting combustion gases that could pose a health risk. Available in models with electric heat, Make-Up Air II units feature WarmFlo® Digital Proportion Temperature Control that use full element modulation and temperature sensors to maintain precise temperature settings.
  • Fresh Air, Positive Pressure
  • To combat unhealthy negative pressure in the home, Electro Industries Make-Up Air II units provide fresh air that reduces backdrafting combustion gasses from other household appliances.
  • WarmFlo® Digital Proportional Temperature Control
  • Units with electric heat feature WarmFlo® technology that utilize full element modulation as well as inlet and outlet temperature sensors to maintain a precise, user-defined temperature setpoint.
  • Multi-Speed Output
  • 5-22 kW Make-Up Air II models feature low, medium and high output speeds for accurate CFM control, making these units perfect for matching multi-speed range hoods.
  • Simple Installation and Maintenance
  • Electro Make-Up Air II units include a mounting kit for easy installation and a washable aluminum filter for simple maintenance.
  • LCD Display
  • An included LCD display allows for multiple fan speed calibration and real-time estimated CFM output. The display also shows desired target temperature as well as incoming and supply air temperatures.

Specifications

EM-MD10-240-1-10
specs product image PID-99414
Overview
Product Category
Make-Up Air
Additional Model Numbers

EM-MD10-240-1-10, EM-MD10-240-1-10

General Information
Product Line
Make-Up Air II
Product Category
Make-Up Air
Performance
Heating Capacity
34121 BTU
Heating Capacity (kW)
10 kW
Maximum Air Flow
600 CFM
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Current Draw
41.7 Amps
Dimensions
Duct Connection
10 Inches
Product Height
39 13/16 Inches
Product Width
13 9/16 Inches
Product Depth
14 1/16 Inches
Shipping Weight
67 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
