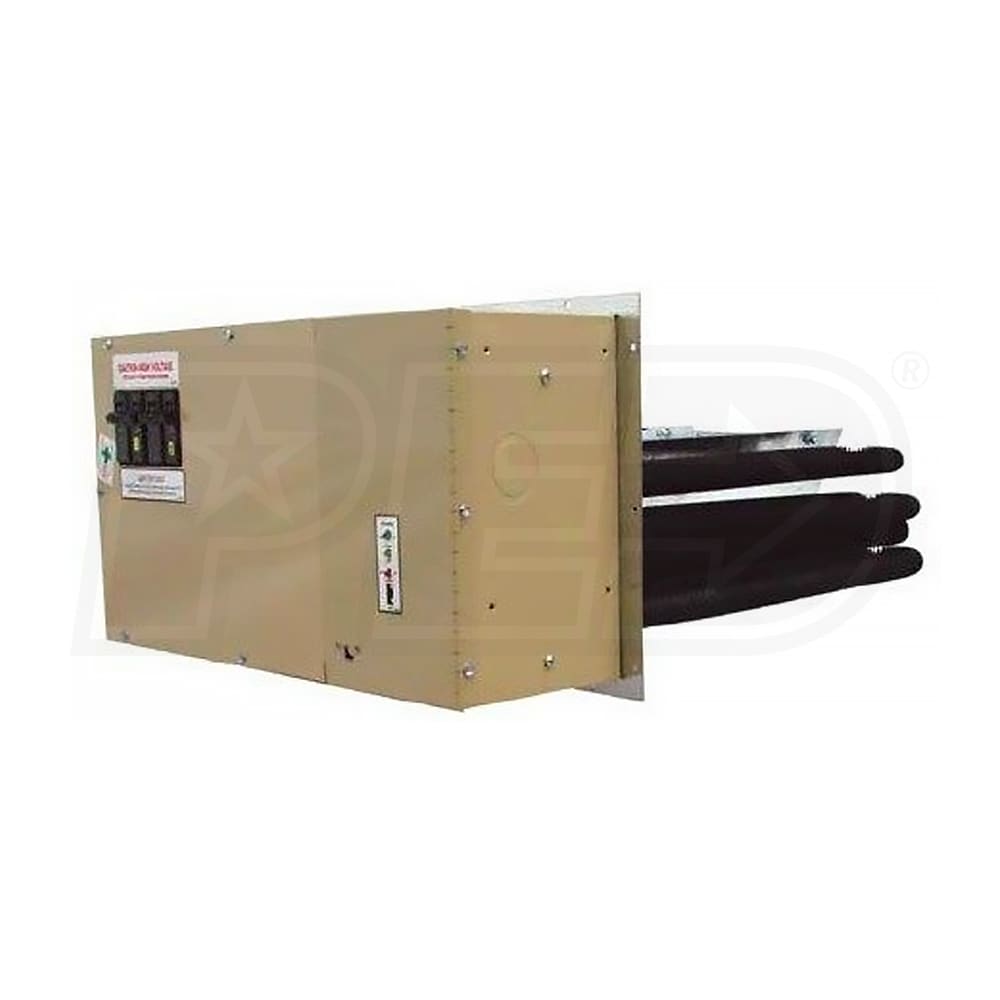

Electro Industries WarmFlo 20 kW Downflow Electric Plenum Heater 4 Stg

Model:

EM-WD204D8-SL2

Write A Review
$2,583.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$46 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Electro Industries WarmFlo 20 kW Downflow Electric Plenum Heater 4 Stg
Electro Industries WarmFlo 20 kW Downflow Electric Plenum Heater 4 Stg
Model: EM-WD204D8-SL2
$2,583.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Our WarmFlo Select Plenum Heater makes ordering and installing a WarmFlo plenum heater easier than ever. We have integrated the control and interface modules into one discrete system which includes all of the features and flexibility of WarmFlo plenum heaters. In other words, you no longer have to worry about which interface module or chip code you need whether you are installing the plenum heater in conjunction with air conditioning, without air conditioning, or with a single stage heat pump. The WarmFlo controller receives temperature information from the warm air plenum sensor and the outside sensor to monitor the heating system performance. Using data from the sensors, the WarmFlo intelligent controller automatically establishes a warm air delivery temperature ideal for the specific outdoor temperature. As outside temperature drops, the air source heat pump output decreases and the warm air required to heat the home increases. The WarmFlo plenum heater automatically adds heat in 500 watt increments to meet the heating requirements of the home.

Specifications

EM-WD204D8-SL2
specs product image PID-18369
Overview
Product Category
Electric Heater
General Information
Product Line
WarmFlo
Product Category
Electric Heater
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Performance
Heating Capacity
68000 BTU
Heating Capacity (kW)
20 kW
Minimum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
60 Amps
Dimensions
Product Height
11 1/8 Inches
Product Width
16 1/2 Inches
Product Depth
27 Inches
Product Weight
24 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
