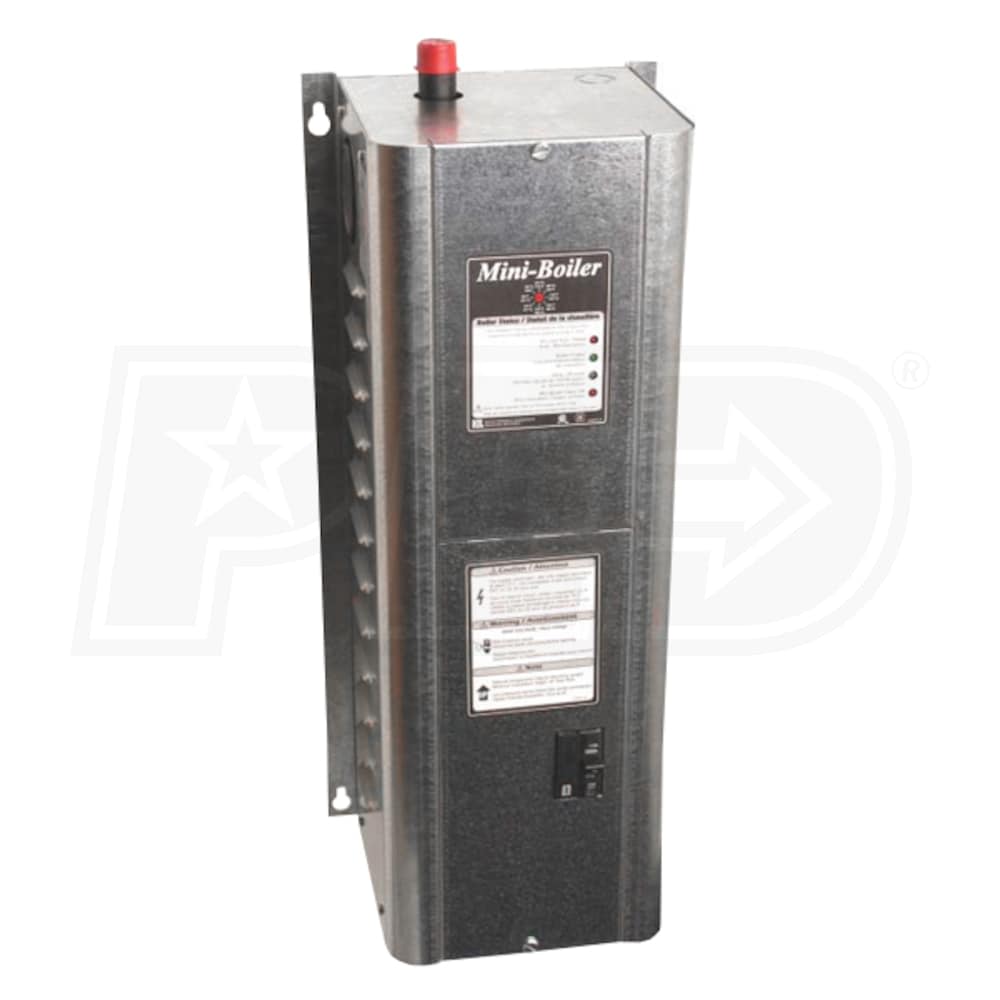

Electro Industries 9 kW 31K BTU Hot Water Electric Boiler 240V 1 Phase
Electro Industries 9 kW 31K BTU Hot Water Electric Boiler 240V 1 Phase
Model: EMB-S-9
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Our new Mini-Boiler has more features and is easier to install and use than ever before. One of the best features of this new unit is it comes to you at a lower price tag, all while maintaining our high quality and reliability that you have come to expect from Electro Industries. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money.
  • Electro Industries EMB-S-9 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays
  • Circulator switching relay - 10-amp maximum
  • Thermostat or end switch connection (R and W)
  • Load management control provisions
  • Heavy duty sheet metal enclosure
  • Supply pressure/temperature gauge
  • Safety relief valve (30 PSI)
  • Heating elements (20-year warranty)
  • 2-year parts warranty
  • Supply water sensing
  • Temperature range 90 F to 160 F
  • ASME/CSA listings
  • Made in the USA
  • Factory tested.

Specifications

EMB-S-9
specs product image PID-18277
Overview
Product Category
Boiler
Additional Model Numbers

EMB-S-9, EMB-S-9

General Information
Product Line
EMB-S
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Wall
Assembly Type
Packaged
Includes Pump
No
Performance
Heating Capacity
31000 BTU
Heating Capacity (kW)
9 kW
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
37.5 Amps
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
25 Inches
Product Width
11 Inches
Product Depth
9 Inches
Product Weight
53 Pounds
Shipping Weight
53 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
