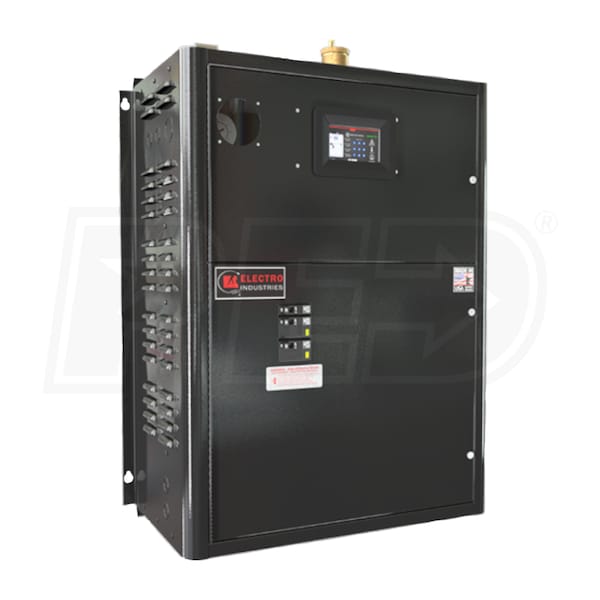

Electro Industries EZB-Edge - 2 Stg - Modulating, 30A Breaker - 5 kW - 17,000 BTU - Four Zone Controller
Model:
EZB-E4-05-240-1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Electro Industries EZB-Edge Features
- Temperature Sensing
- WarmFlo Modulation Control
- Dual Fuel Control
- Outdoor Reset Capability
- Four Zone Controller for Valves or Pumps
- ETL/Intertek Listed
- Product Includes
- ASME Pressure Vessel
- Incoloy Heating Elements
- Pressure/Temperature Gauge
- Supply and Return Outdoor Temperature Gauge
- 30 PSI Relief Valve
- Air Eliminator
- Pre-charged 12 PSI Expansion Tank
- Circulating Pump with Isolation Flanges
- Circuit Breakers
- Touch Screen Control Board
Designed for radiant floor heating or hot water baseboard applications, the Electro Industries EZB-Edge® is a complete boiler system in one simple package. Built with contractors in mind, the EZB-Edge® includes an ASME pressure vessel, touchscreen control board, pre-charged expansion tank, relief valve, air eliminator and circulation pump for simple installation. The EZB-Edge® features modulating operation with 100% efficiency, effectively warming your home to desired temperatures without breaking the bank on energy bills. Like all electric boilers, the EZB-Edge® is safe to operate and can be installed almost anywhere in your home.
Product Note
30 amp breaker included.
Specifications
EZB-E4-05-240-1
General Information
Product Line
EZB-Edge
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Includes Pump
Yes
Assembly Type
Packaged
Additional Model Numbers
EZB-E4-05-240-1, EZB-E4-05-240-1
Performance
Heating Capacity
17000 BTU
Heating Capacity (kW)
5 kW
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
20.8 Amps
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
36 Inches
Product Width
25 Inches
Product Depth
13 Inches
Product Weight
140 Pounds
Shipping Weight
175 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
