Electro Industries EZB-T1-20-240-1
Electro Industries EZB-T1-20-240-1
Hover to zoom
1 Of 5

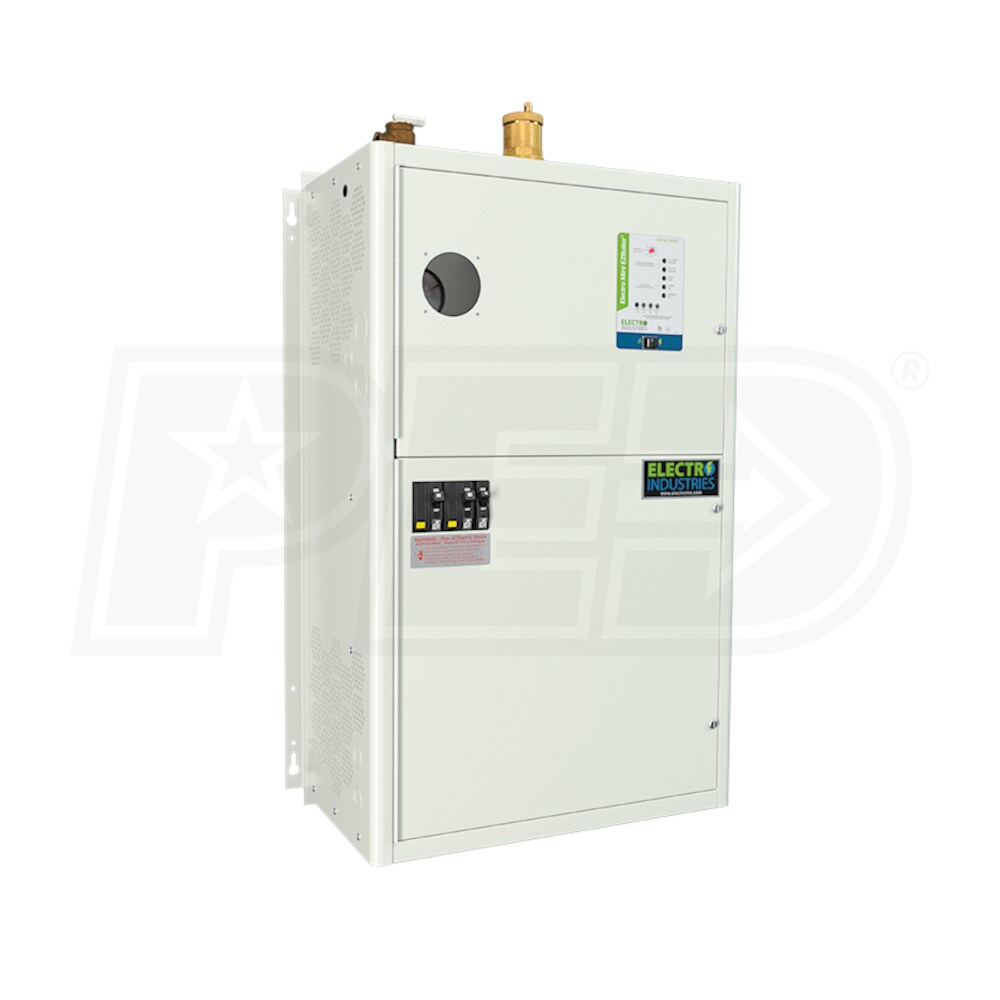

Electro Industries EZB-ECO® - Four Stage - 20 kW - 68,200 BTU - Modulating Electric Hot Water Boiler - 208/240 Volt

Model:

EZB-T1-20-240-1

Write A Review
$5,049.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks
synchrony card logo
$64 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Electro Industries EZB-ECO® - Four Stage - 20 kW - 68,200 BTU - Modulating Electric Hot Water Boiler - 208/240 Volt
Electro Industries EZB-ECO® - Four Stage - 20 kW - 68,200 BTU - Modulating Electric Hot Water Boiler - 208/240 Volt
Model: EZB-T1-20-240-1
$5,049.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Designed for radiant floor heating or hot water baseboard applications, the Electro Industries EZB-ECO® is a complete boiler system in one simple package. Built with contractors in mind, the EZB-ECO® includes an ASME pressure vessel, pre-charged expansion tank, relief valve, air eliminator and circulation pump for simple installation. The EZB-ECO® features modulating operation with 100% efficiency, effectively warming your home to desired temperatures without breaking the bank on energy bills. Like all electric boilers, the EZB-ECO® is safe to operate and can be installed almost anywhere in your home.
  • Electro Industries EZB-Eco Features
  • Temperature Sensing
  • WarmFlo Modulation Control
  • Outdoor Reset Capability
  • ETL/Intertek Listed
  • Product Includes
  • ASME Pressure Vessel
  • Incoloy Heating Elements
  • Pressure/Temperature Gauge
  • Supply & Outdoor Temperature Sensors
  • 30 PSI Relief Valve
  • Air Eliminator
  • Pre-charged 12 PSI Expansion Tank
  • Circulating Pump with Isolation Flanges
  • Circuit Breakers

Specifications

EZB-T1-20-240-1
specs product image PID-110255
Overview
Product Category
Boiler
Additional Model Numbers

EZB-T1-20-240-1, EZB-T1-20-240-1

General Information
Product Line
EZB-ECO
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Includes Pump
Yes
Assembly Type
Packaged
Performance
Heating Capacity
68200 BTU
Heating Capacity (kW)
20 kW
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
84 Amps
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
36 Inches
Product Width
25 Inches
Product Depth
13 Inches
Product Weight
140 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
