Fantech ATMO - 150 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 6" Duct

Model:

ATMO 150H

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fantech ATMO - 150 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 6
Fantech ATMO - 150 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 6" Duct
Model: ATMO 150H
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

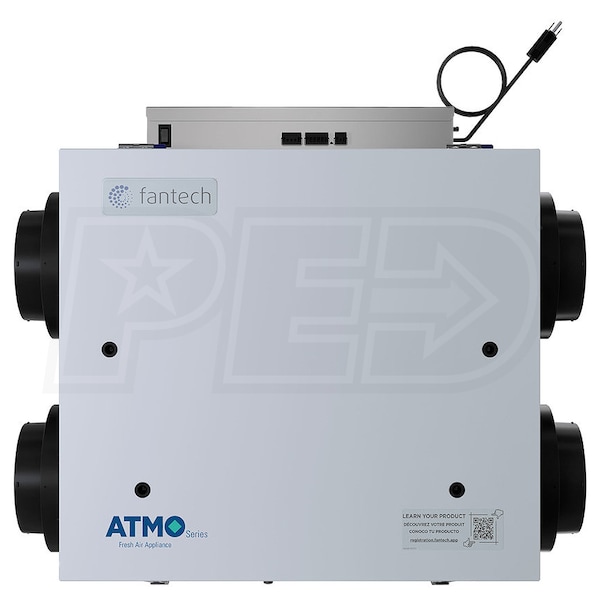

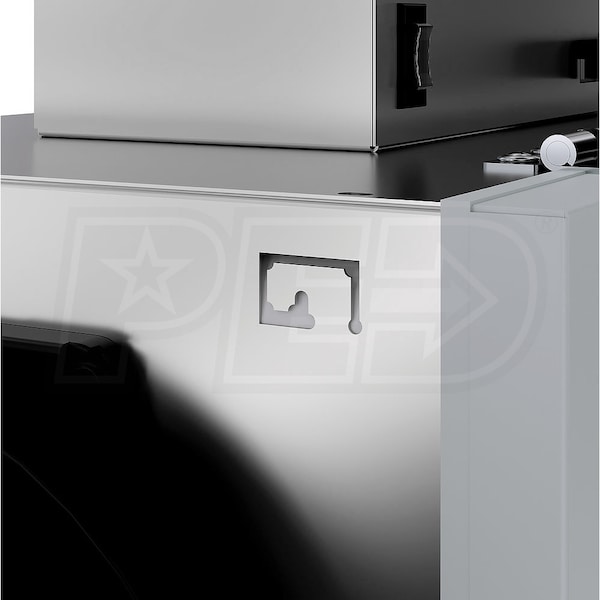

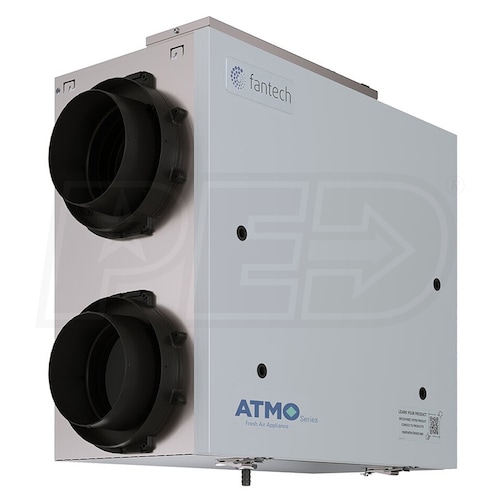

    The Fantech ATMO 150H Heat Recovery Ventilator (HRV) is a 150 CFM heat recovery ventilator with side ducts and polypropylene heat recovery core. The ATMO 150H is a 120-volt unit designed with 4 ports with 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and optional wall bracket make this HRV easy to mount. The ATMO 150H Heat Recovery Ventilator (HRV) features a crossflow core and washable electrostatic filters.
  • Exceptional Efficiency
  • The Fantech ATMO is capable of extracting up to 75% of the heat in the extract air is recovered by the heat exchanger and used to temper the fresh air coming from outside.
  • Healthier Home
  • Without proper ventilation, you are subject to indoor air pollutants like chemical products, pet dander or building materials. With an HRV, your home will be ventilated up to 20 times per day, making for a healthier home.
  • Defrost Cycle
  • The Fantech ATMO is equipped with an automatic defrost mechanism that is activated when outdoor air temperature drops to 23F (-5C) or lower.
  • Integrated Merv-3 Filter
  • The Fantech ATMO uses MERV3 a filter for unobstructed airflow and reducing textile fibers, pollen and dust mites.

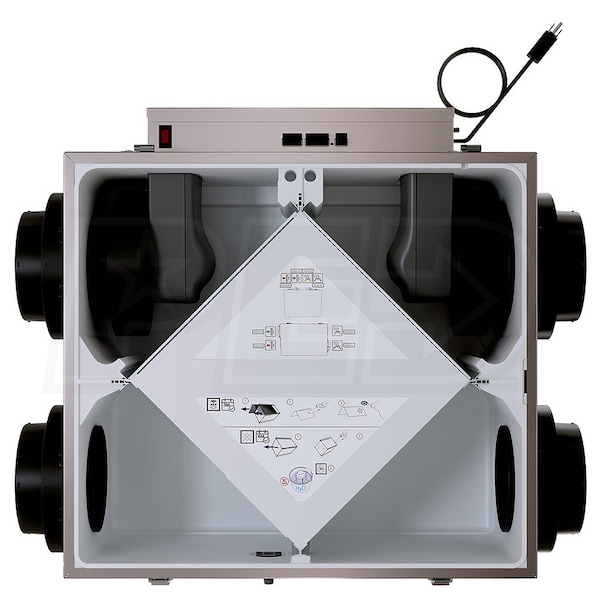

  • Crossflow Core
  • The Fantech ATMO features provides an efficient crossflow heat exchanger with SRE up to 75% of energy transfer.
  • Insulated One-Piece Foam Cabinet
  • The Fantech ATMO is UL rated with improved aerodynamics, insulation and sound proofing.
  • External Electrical Box
  • The Fantech ATMO has external access to the electrical box with easy connectors.

Specifications

ATMO 150H
specs product image PID-123284
Overview
Product Category
Heat Recovery Ventilators (HRVs)
UPC
650737638887
General Information
Type
HRV
Product Line
ATMO
Product Category
Heat Recovery Ventilators (HRVs)
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Fan Shutdown
Ports Quantity
4
Port Location
Side
Performance
Maximum Air Flow
150 CFM
Apparent Sensible Effectiveness
81 %
Sensible Recovery Efficiency
75 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
6 Inches
Product Height
22 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
44 Pounds
Shipping Width
29 Inches
Shipping Height
22 Inches
Shipping Length
29 Inches
Shipping Weight
55 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
