Features
- Permanently Lubricated Sealed Ball Bearings
- Permanently lubricated sealed ball bearings extend the service life of your fan.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
- External Rotor Motor
- An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.

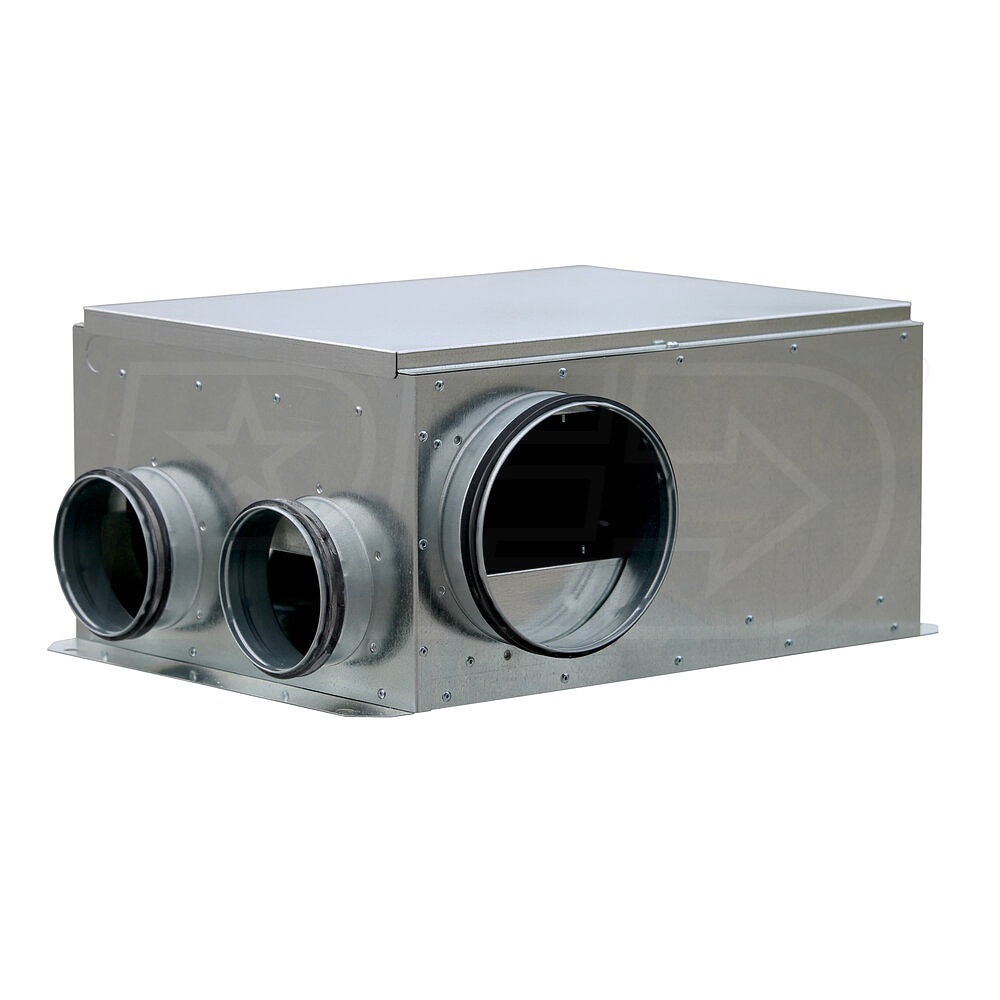

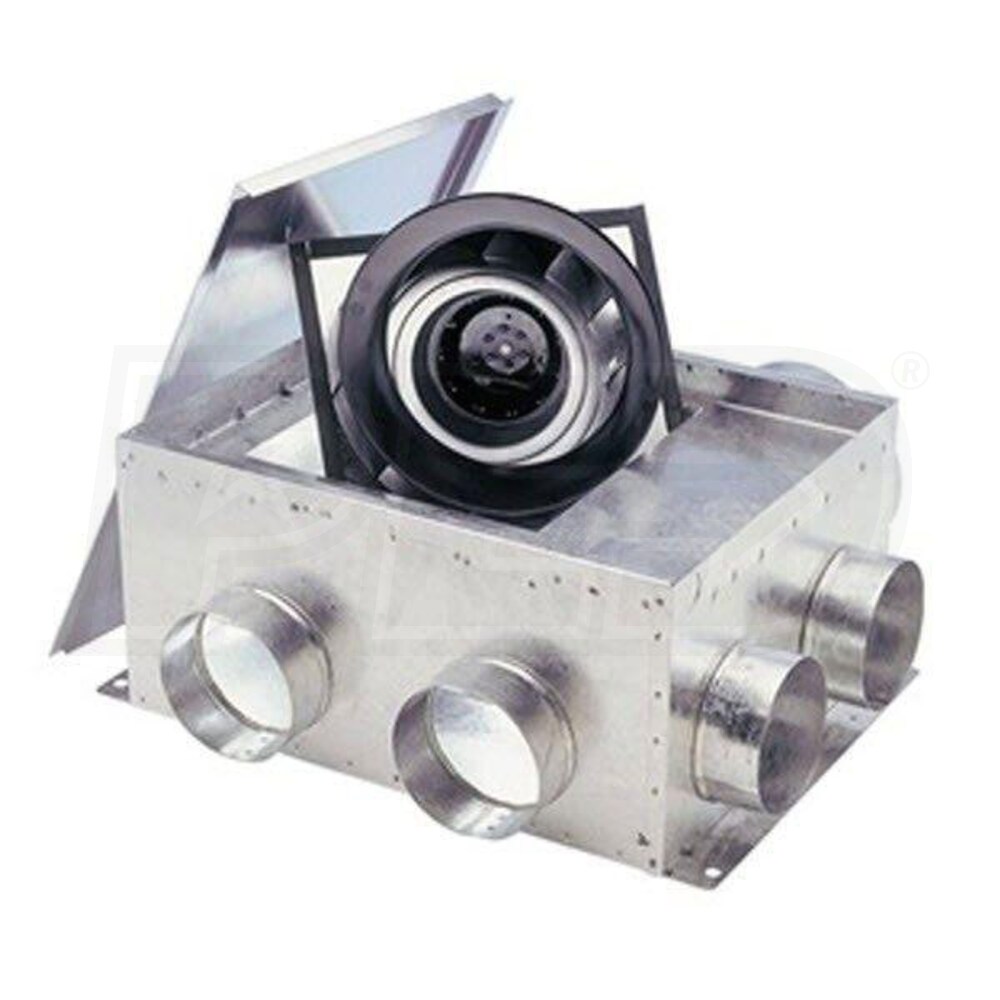

The Fantech CVS 300A Multi-Port Fan is designed for areas where ventilation is needed but space is limited. Commonly installed in the spaces between floors, the CVS 300A is a 4 port centrifugal fan with a maximum airflow of 355 CFM. Multi-port fans allow several exhaust points to connect to one centrally located fan. CVS Series fans are engineered for vibration free, quiet performance. They are capable of handling air flows up to 140 degrees Fahrenheit. Each unit is constructed with a galvanized steel housing and an external rotor motor with a backward-curved centrifugal fan wheel.
Specifications
CVS300A
Overview
Product Category
Fans
UPC
650737333003
General Information
Type
Ventilation Fan
Product Line
CVS
Product Category
Fans
Ports Quantity
4
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
355 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.07 Amps
Dimensions
Duct Connection
4 Inches
Product Height
8 1/4 Inches
Product Width
16 Inches
Product Length
13 Inches
Shipping Height
13 Inches
Shipping Width
21 Inches
Shipping Length
21 Inches
Shipping Weight
22 Pounds
Intake Diameter
4 Inches
Exhaust Diameter
6 Inches
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
