Features
- Backward Inclined Blades
- Backward inclined blades allow particles to easily pass through the fan blades preventing a build-up.
- Automatic Pressure Sensing Switch
- The switch directs power to the fan in five minute cycles providing a continuous boost when the fan is operating.
- Product Includes

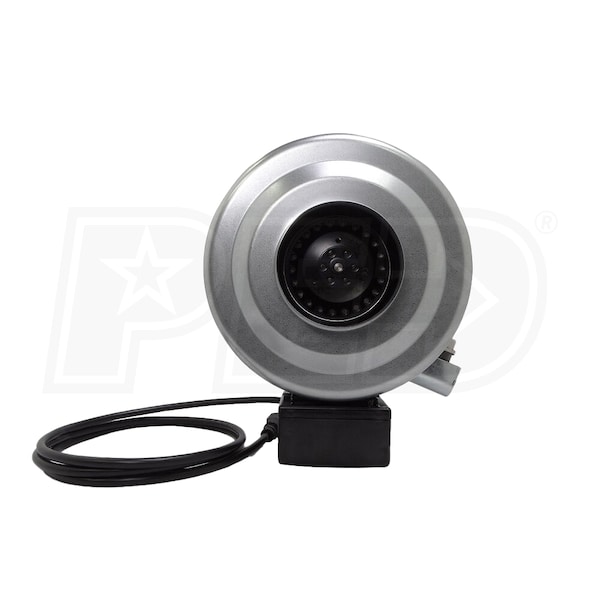

- FG 4XL Inline Fan

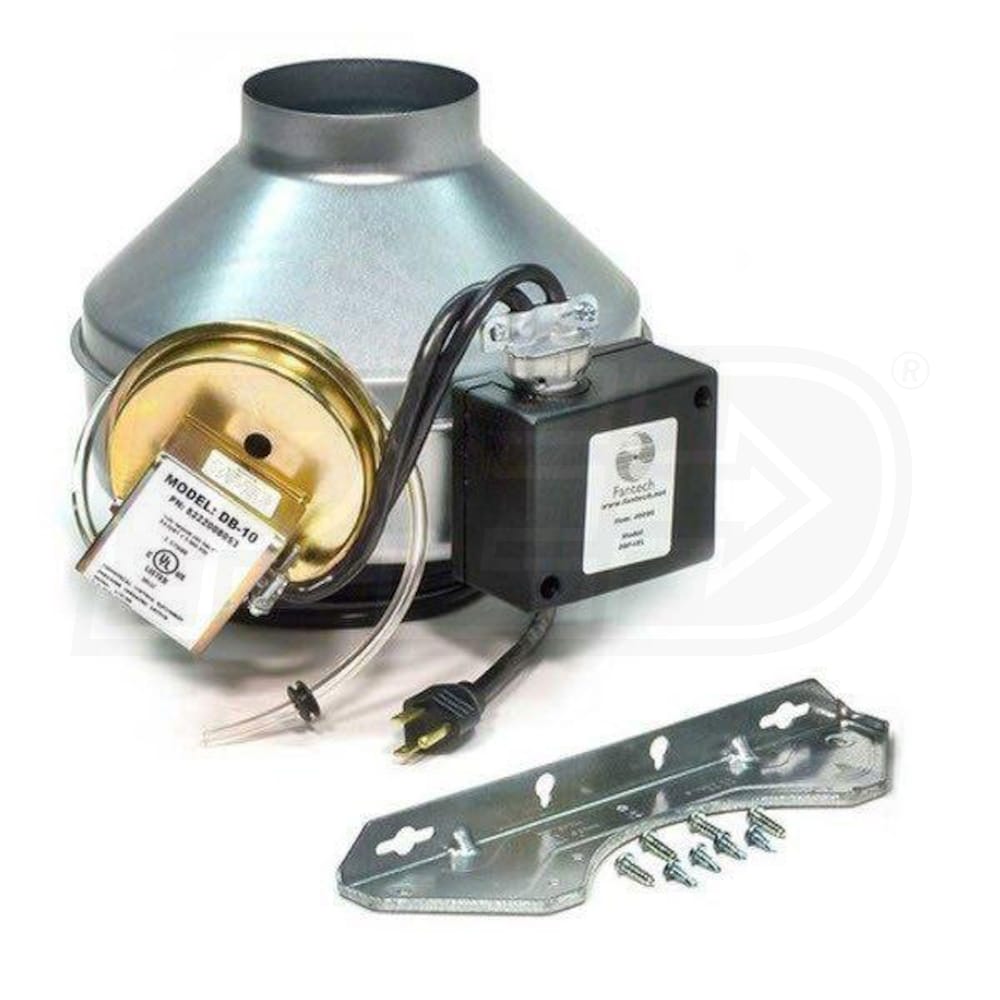

Constructed with a galvanized steel housing housing, the Fantech DBF 4XL Dryer Booster Kit uses a 170 CFM fan to support up to 130 feet of dryer duct run. It is specifically designed with backward inclined blades to allow lint to easily pass through the fan. The DBF 4XL features an automatic pressure sensing switch which automatically activates the fan when the dryer comes on. Dryer booster fans allow you to exhaust dryer fumes through extended ventilation.
Specifications
DBF4XL

Overview
Product Category
Fans
UPC
650737120405
General Information
Type
Dryer Boosters
Product Line
DBF
Product Category
Fans
Performance
Maximum Air Flow
170 CFM
Duct Run
130 Feet
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
4 Inches
Product Diameter
9 3/4 Inches
Product Height
8 15/16 Inches
Product Weight
8 Pounds
Shipping Height
11 Inches
Shipping Width
13 Inches
Shipping Length
13 Inches
Shipping Weight
10 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(7)
Fantech DBF4XL Reviews & Ratings

Architect Approved!
By Douglas H.
Duncan, South Carolina
Purchased 02/15/2018 |
Review Posted 03/09/2018
As an actively practicing commercial Architect, I recommend this product for improving long dryer vent situations. I continue to specify this fan not only on my clients' buildings, but on buildings I personally own and maintain.
Douglas H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Easy To Use, High Quality, I'd Buy It Again

works fine
By Bruce S.
Richmond, Texas
Purchased 09/05/2016 |
Review Posted 11/09/2016
Working fine and quiet.
Bruce S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5

Dryer fan
By Wallace D.
Maryville, Illinois
Purchased 08/18/2016 |
Review Posted 09/27/2016
Bought to replace S&P dryer booster fan. Much, much quieter. My S&P fan lasted almost two years. I'm hoping for much more from this fantech.
Wallace D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

business owner
By Mark H
IL
Review Posted 12/22/2014
Great product but found the pressure sensor only works if the world is working perfectly! Meaning the venting must be in excellent shape and does not come apart in the walls or the power is a reliable source. This was installed in one of our customer's homes. Installation straight forward and worked well but then it became a nightmare. Multiple calls back and a real money looser.
We put it to bed by bypassing the pressure switch (and installed a voltage sensor on the electric clothes dryer cord. Booster now comes on when it senses voltage, off if it doesn't. The booster has to be installed correctly. The sensitivity adjustment screw was on one side under a plate. Our particular installation required this plate to be against a wall in the attic. When we where fighting the sensitivity it required complete removal of booster to access screw.
We feel the product is great but save yourself time & money use a voltage sensor switch to activate booster your bottom line will be better and it will work great!
We put it to bed by bypassing the pressure switch (and installed a voltage sensor on the electric clothes dryer cord. Booster now comes on when it senses voltage, off if it doesn't. The booster has to be installed correctly. The sensitivity adjustment screw was on one side under a plate. Our particular installation required this plate to be against a wall in the attic. When we where fighting the sensitivity it required complete removal of booster to access screw.
We feel the product is great but save yourself time & money use a voltage sensor switch to activate booster your bottom line will be better and it will work great!
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

dbf4xl dryer booster vent
By Randy
IL
Purchased 06/19/2014 |
Review Posted 10/17/2014
purchased, delivered installed myself hooked up works great
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

homeowner
By wayne a.
IL
Review Posted 08/15/2014
Product received. Customer service was top cabin!
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Clothes Dryer
By Acoolguy
IL
Review Posted 03/14/2014
Best in the market. Customers very happy. Solved the problem.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Product Q&A
(2)

Product Questions
Answered by Ken, the eComfort Product Expert
Can this product be installed within a foot or two in back of the dryer as vent run is in ceiling of finished washroom?
Anthony
from New York
April 19, 2016
When the dryer is running does the booster fan run continuous?
Toby
from California
December 23, 2015
