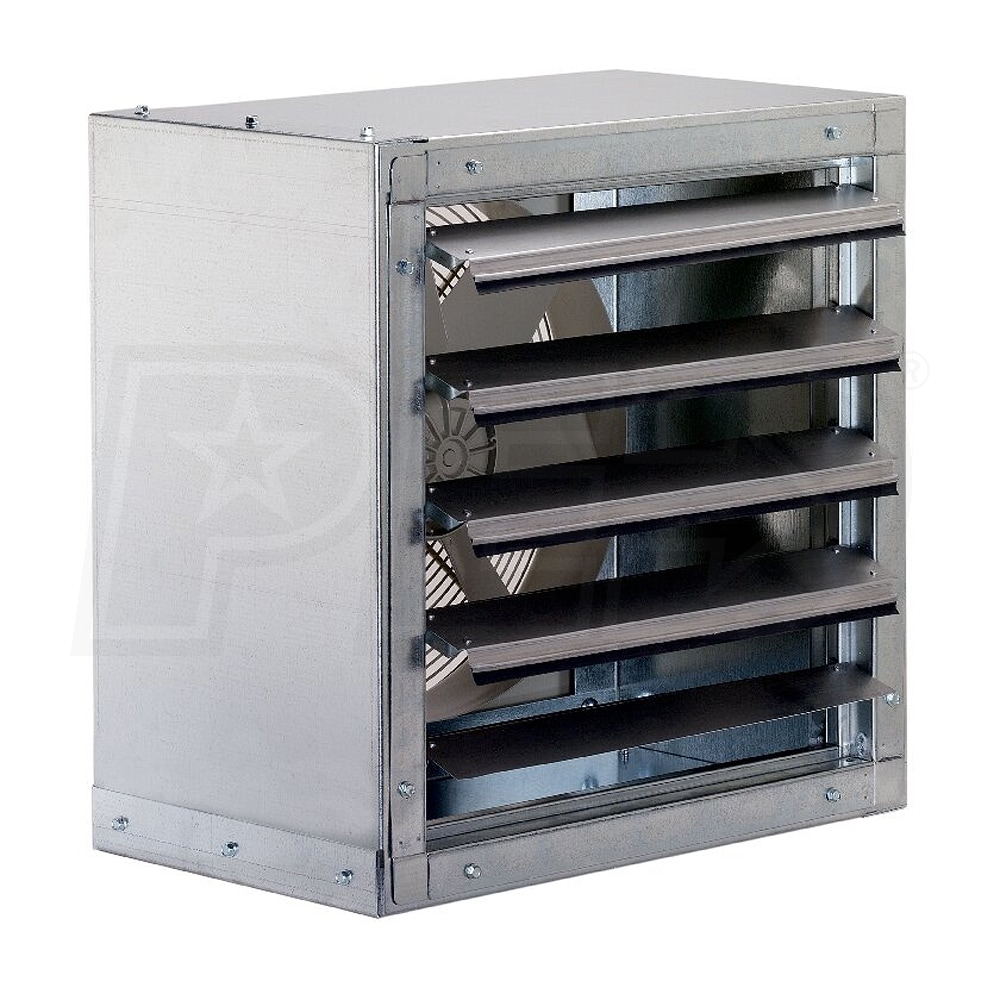

Fantech FADE - 3,054 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Assembled Housing and Damper

Model:

FADE16-4WHD

Write A Review
$824.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$138 / Month
Suggested monthly payments with 6 month financing.
Fantech FADE - 3,054 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Assembled Housing and Damper
Fantech FADE - 3,054 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Assembled Housing and Damper
Model: FADE16-4WHD
$824.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The Fantech FADE 16-4WHD Side Wall Exhaust Fan is a 3,054 CFM commercial axial fan with its assembled housing and damper designed to quietly ventilate large commercial areas while minimizing space requirements. FADE Series impellers are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 16-4WHD are statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.

Specifications

FADE16-4WHD
specs product image PID-31218
Overview
Product Category
Fans
UPC
650737454241
General Information
Type
Exhaust Fan
Product Line
FADE
Product Category
Fans
Mount Type
Wall
Assembly Type
Complete
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
3054 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
12 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
4.19 Amps
Dimensions
Product Height
21 Inches
Product Width
22 3/4 Inches
Product Length
16 1/2 Inches
Shipping Width
28 Inches
Shipping Height
21 Inches
Shipping Length
28 Inches
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years

Reviews

Fantech FADE16-4WHD Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Ken, the eComfort Product Expert
How do the shutters hold tight against strong winds? Can they be closed manually?
Christine W.
from Kansas
October 23, 2016
