Fantech FADE20-4
Fantech FADE20-4
Hover to zoom
1 Of 5

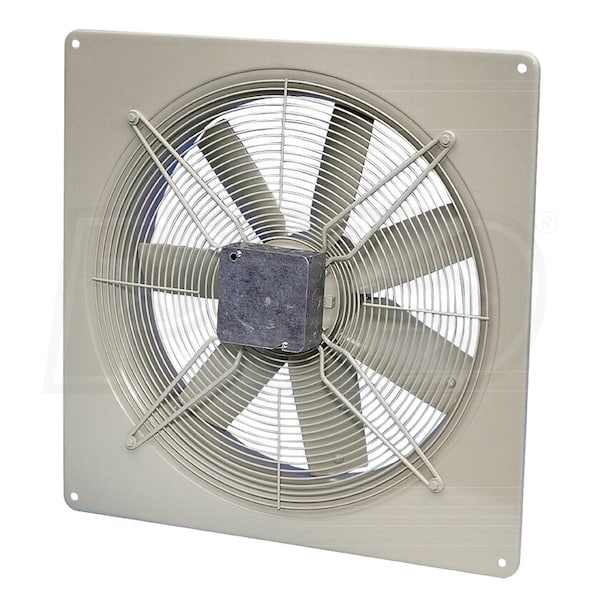

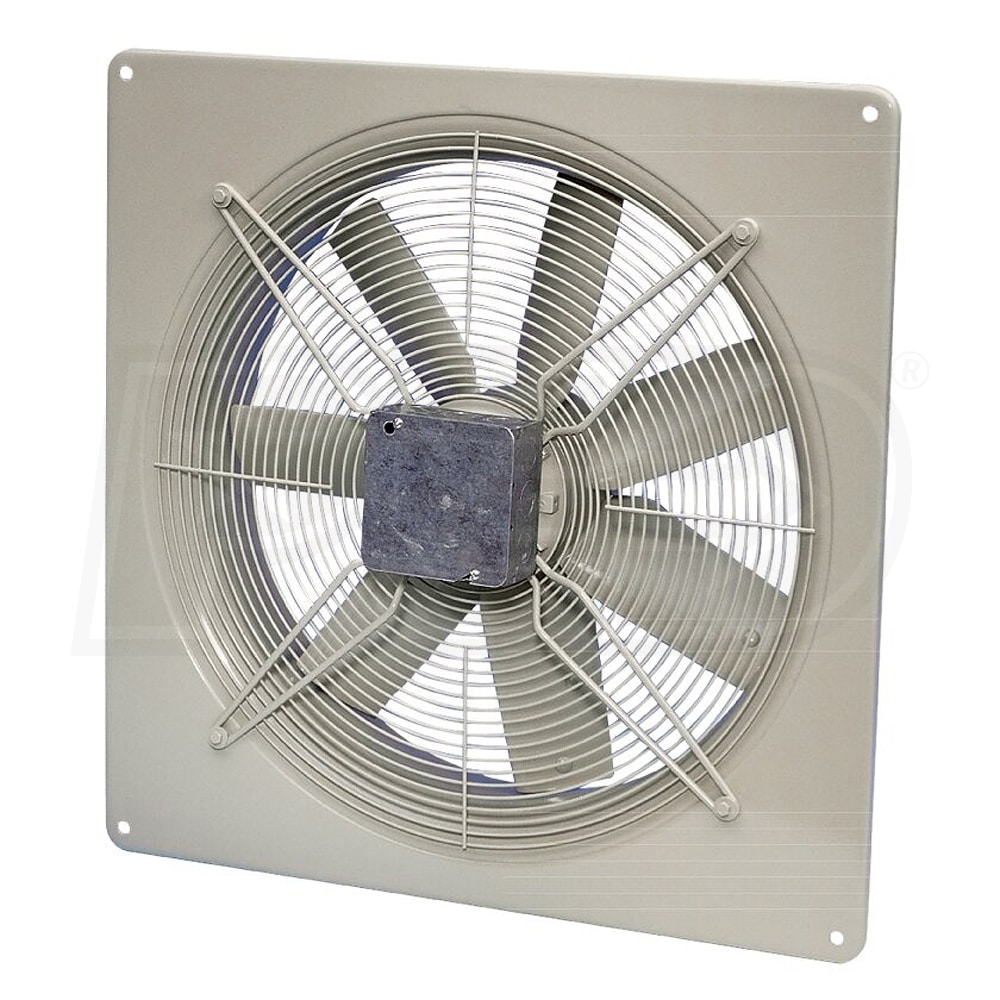

Fantech FADE - 4,949 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Fan Only

Model:

FADE20-4

Write A Review
$908.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$152 / Month
Suggested monthly payments with 6 month financing.
Fantech FADE - 4,949 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Fan Only
Fantech FADE - 4,949 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Fan Only
Model: FADE20-4
$908.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The Fantech FADE 20-4 Side Wall Exhaust Fan is a 4,949 CFM commercial axial fan without its assembled housing or damper designed to quietly ventilate large commercial areas while minimizing space requirements. FADE Series impellers are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 20-4 are statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.

Specifications

FADE20-4
specs product image PID-31210
Overview
Product Category
Fans
UPC
650737342043
General Information
Type
Exhaust Fan
Product Line
FADE
Product Category
Fans
Mount Type
Wall
Assembly Type
Fan Only
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
4949 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
16.4 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
8.39 Amps
Dimensions
Product Width
25 3/16 Inches
Shipping Height
12 Inches
Shipping Width
28 Inches
Shipping Length
28 Inches
Shipping Weight
45 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
