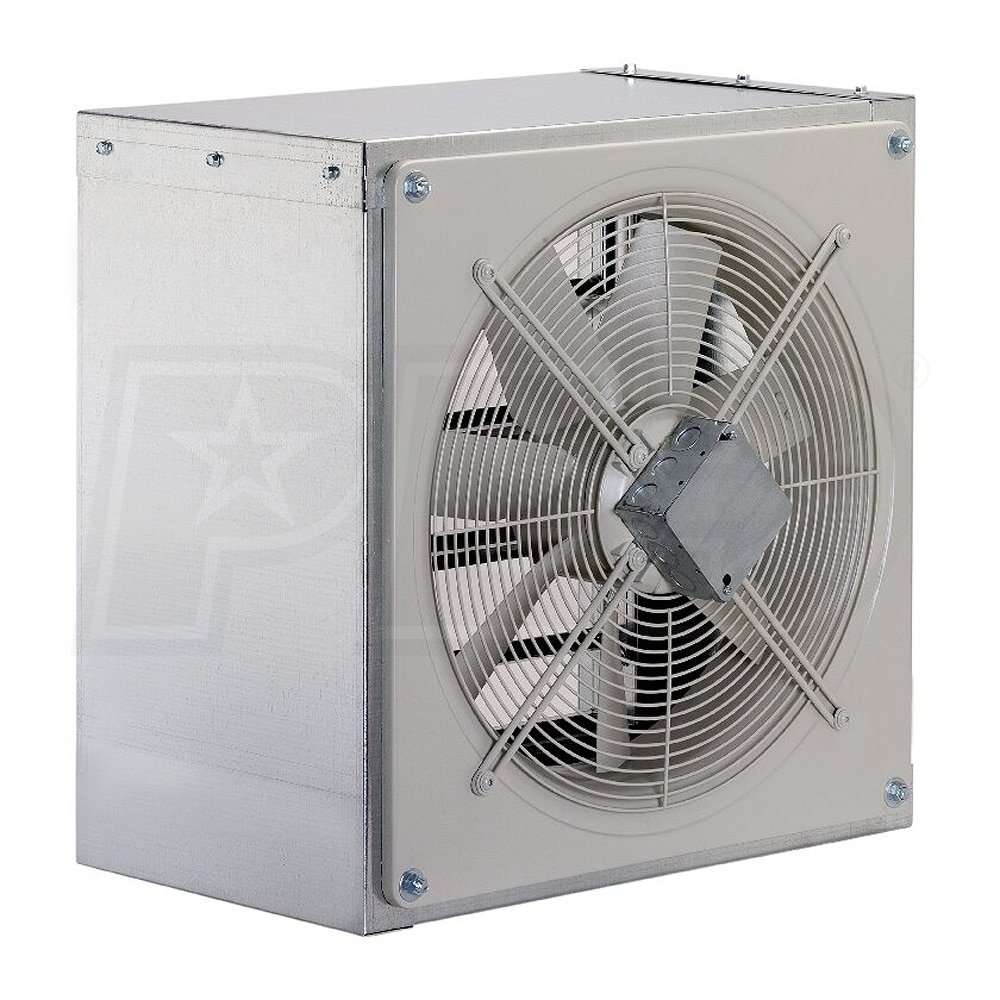

Fantech FADE - 3,693 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Assembled Housing and Damper
Model:
FADE20-6WHD
+
Share This Product
Features
- Permanently Lubricated Sealed Ball Bearings
- Permanently lubricated sealed ball bearings extend the service life of your fan.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
- External Rotor Motor
- An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
The Fantech FADE 20-6WHD Side Wall Exhaust Fan is a 3,693 CFM commercial axial fan with its assembled housing and damper designed to quietly ventilate large commercial areas while minimizing space requirements. FADE Series impellers are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 20-6WHD are statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
Specifications
FADE20-6WHD
Overview
Product Category
Fans
UPC
650737454265
General Information
Type
Exhaust Fan
Product Line
FADE
Product Category
Fans
Mount Type
Wall
Assembly Type
Complete
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
3693 CFM
Maximum Sound Level
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
10.7 Sones
Electrical Data
Phase
1
Frequency
60 Hz
Current Draw
3.98 Amps
Dimensions
Product Height
26 Inches
Product Width
25 3/16 Inches
Product Length
17 1/2 Inches
Product Weight
88 Pounds
Shipping Width
30 Inches
Shipping Height
22 Inches
Shipping Length
30 Inches
Shipping Weight
98 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
Fantech FADE20-6WHD Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
How do the shutters hold tight against strong winds? Can they be closed manually?
Christine W.
from Kansas
October 23, 2016
