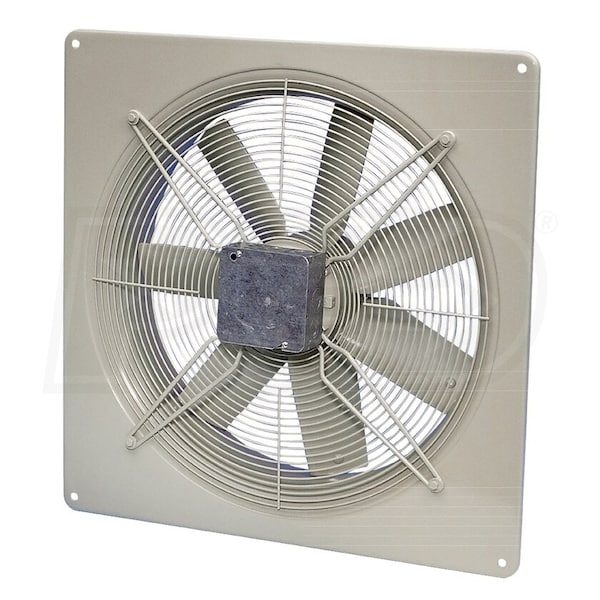

Fantech FADE - 7,858 CFM - Side Wall Exhaust Fan - Wall Mount - 208/460V - 3 Phase - Fan Only
Model:
FADE25-6/3
+
Share This Product
Features
- Permanently Lubricated Sealed Ball Bearings
- Permanently lubricated sealed ball bearings extend the service life of your fan.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
- External Rotor Motor
- An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
The Fantech FADE 25-6/3 Side Wall Exhaust Fan is a 7,858 CFM commercial axial fan without its assembled housing or damper designed to quietly ventilate large commercial areas while minimizing space requirements. FADE Series impellers are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 25-6/3 are statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
Specifications
FADE25-6/3
Overview
Product Category
Fans
UPC
650737454326
General Information
Type
Exhaust Fan
Product Line
FADE
Product Category
Fans
Mount Type
Wall
Assembly Type
Fan Only
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
7858 CFM
Maximum Sound Level
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
14.8 Sones
Electrical Data
Voltage
208/460 Volts
Phase
3
Frequency
60 Hz
Dimensions
Product Width
31 3/4 Inches
Shipping Width
35 Inches
Shipping Height
13 Inches
Shipping Length
35 Inches
Shipping Weight
65 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
Fantech FADE25-6/3 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
Whole House Fan Buyers Guide
What is a Whole House Fan? Do you enjoy the feeling of fresh, cool air flowing ...
How HRVs and ERVs work
Many find it unpleasant to breathe in frigid air after running on a cold day. Y...
Ventilation Solutions for Your Home
Ever pull your bed covers over your head for a warm, cozy feeling only to find ...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

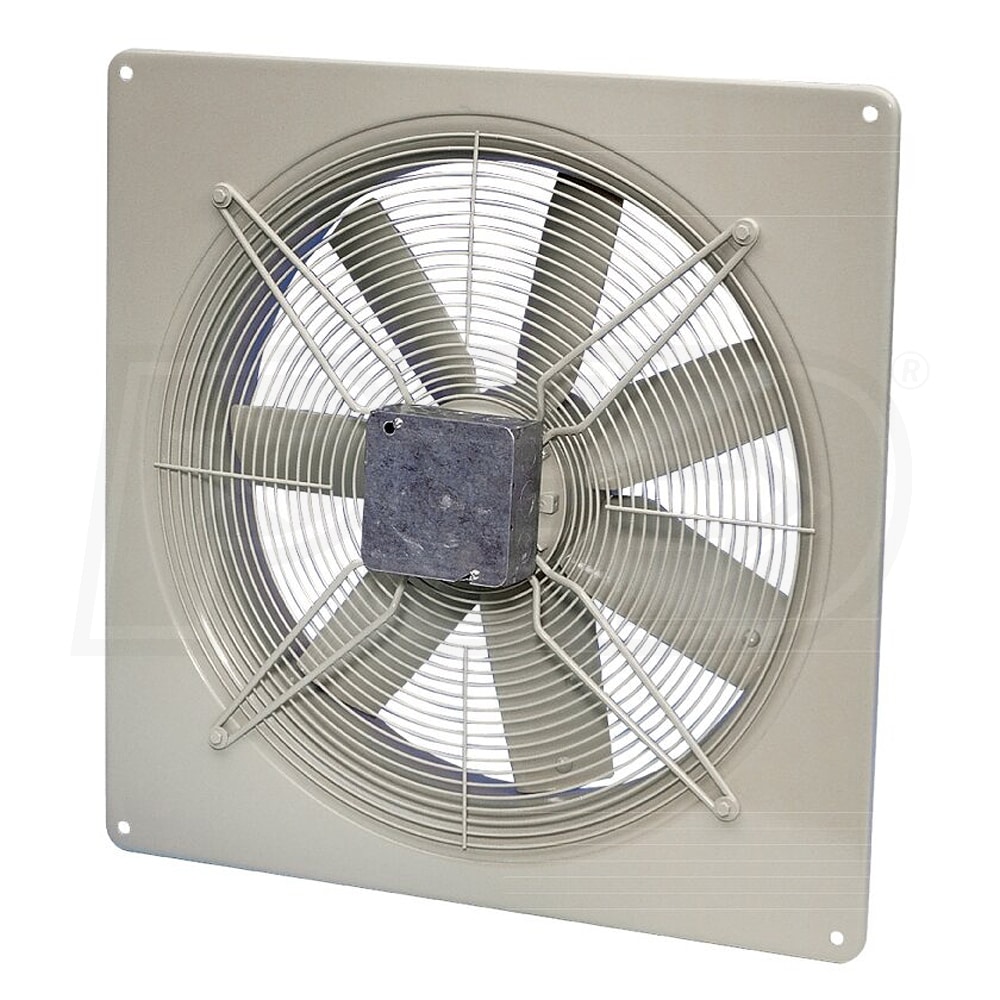

Fantech FADE - 7,858 CFM - Side Wall Exhaust Fan - Wall Mount - 208/460V - 3 Phase - Fan Only
