Fantech FG10EC
Fantech FG10EC
Hover to zoom
1 Of 5

Fantech FG EC 513 CFM Inline Duct Fan 10" Duct 120V

Model:

FG10EC

Write A Review
$412.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$69 / Month
Suggested monthly payments with 6 month financing.
Fantech FG EC 513 CFM Inline Duct Fan 10
Fantech FG EC 513 CFM Inline Duct Fan 10" Duct 120V
Model: FG10EC
$412.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

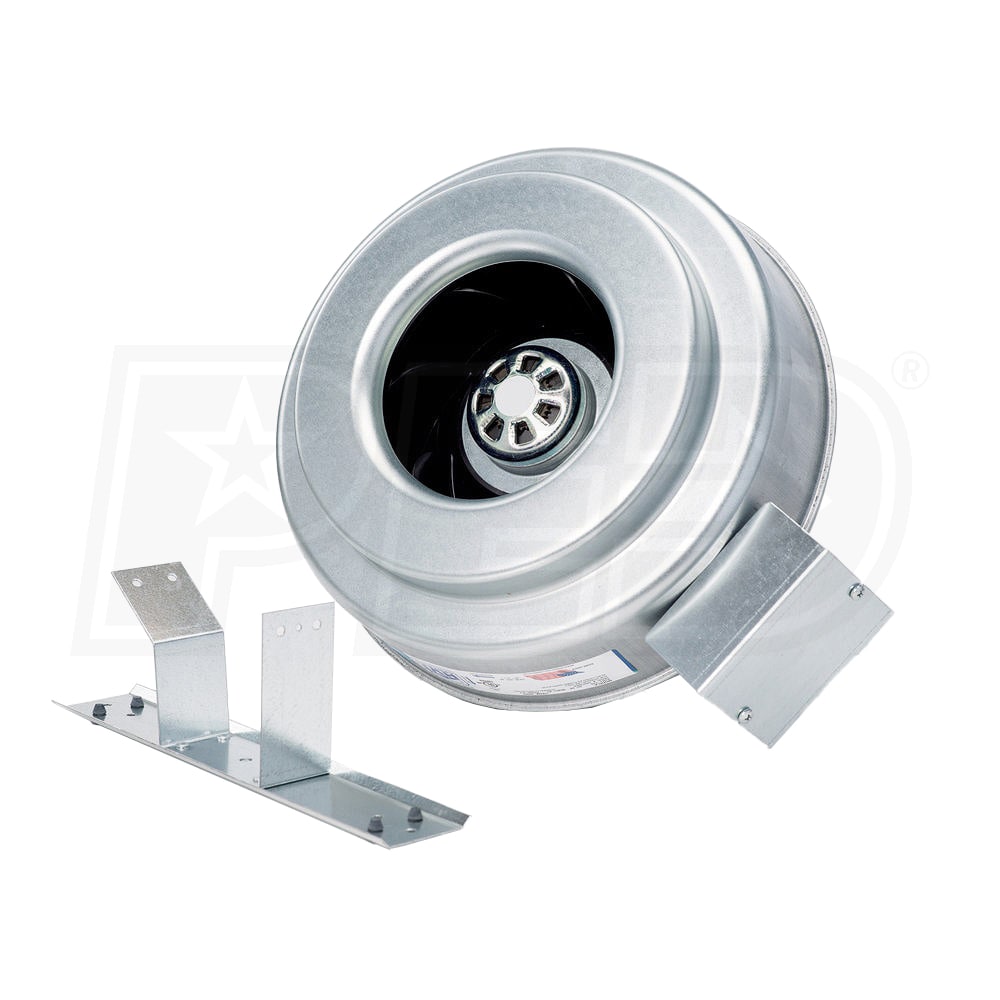

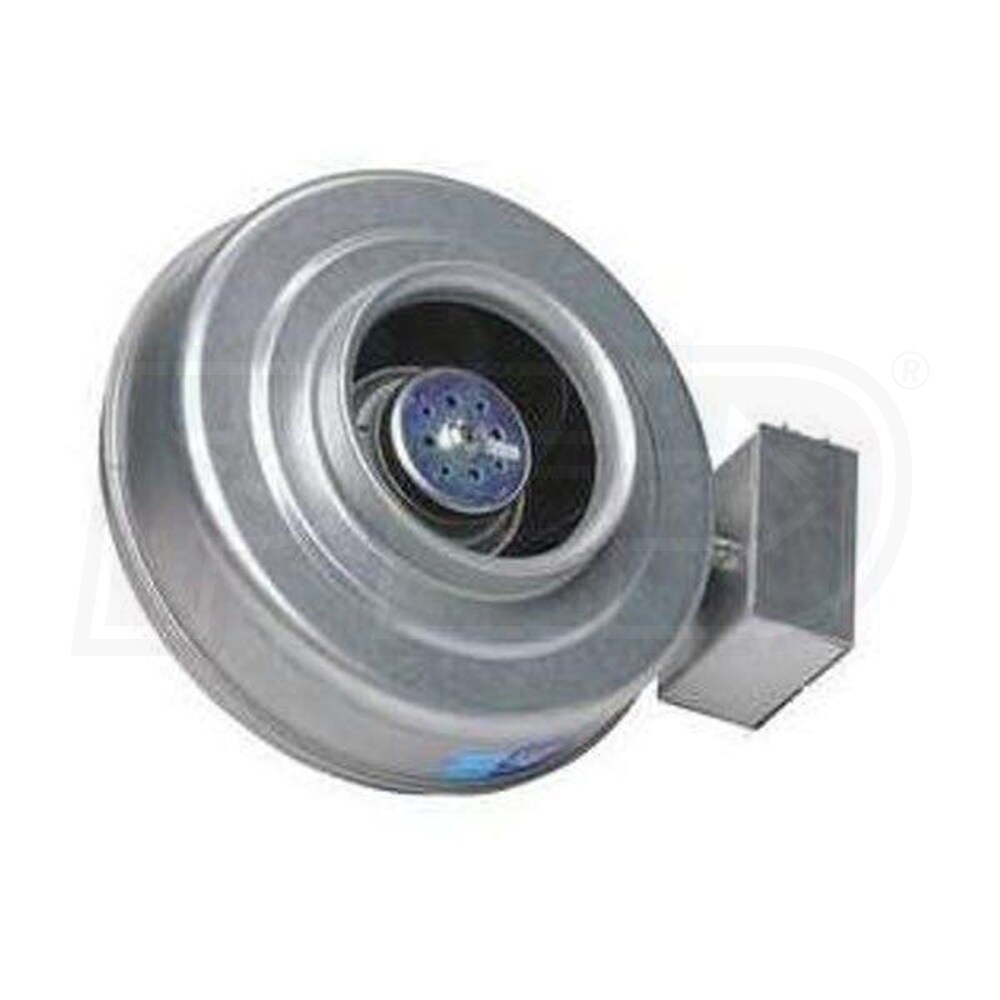

    Featuring a galvanized steel housing, the Fantech FG10 EC Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 513 CFM. The FG10 EC is constructed with a 10" round duct. Fans include a bracket for mounting to a ceiling or wall. FG EC Series Inline Fans are rated for outdoor use. These fans are equipped with electronically commutated energy-efficient motors which use up to 30% less energy than standard AC fans. Not only does energy-efficiency save on energy costs, but reduced heating during use increases the motor's lifespan and limits maintenance costs.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Electronically Commutated Motor
  • Uses 30% less energy than AC fans.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.

Specifications

FG10EC
specs product image PID-31448
Overview
Product Category
Fans
UPC
650737481001
General Information
Type
Duct Fan
Product Line
FG EC
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
513 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.32 Amps
Dimensions
Duct Connection
10 Inches
Product Diameter
13 3/8 Inches
Shipping Width
17 Inches
Shipping Height
12 Inches
Shipping Length
17 Inches
Shipping Weight
11 Pounds
Certifications
UL Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
