Fantech FG 4XL EC

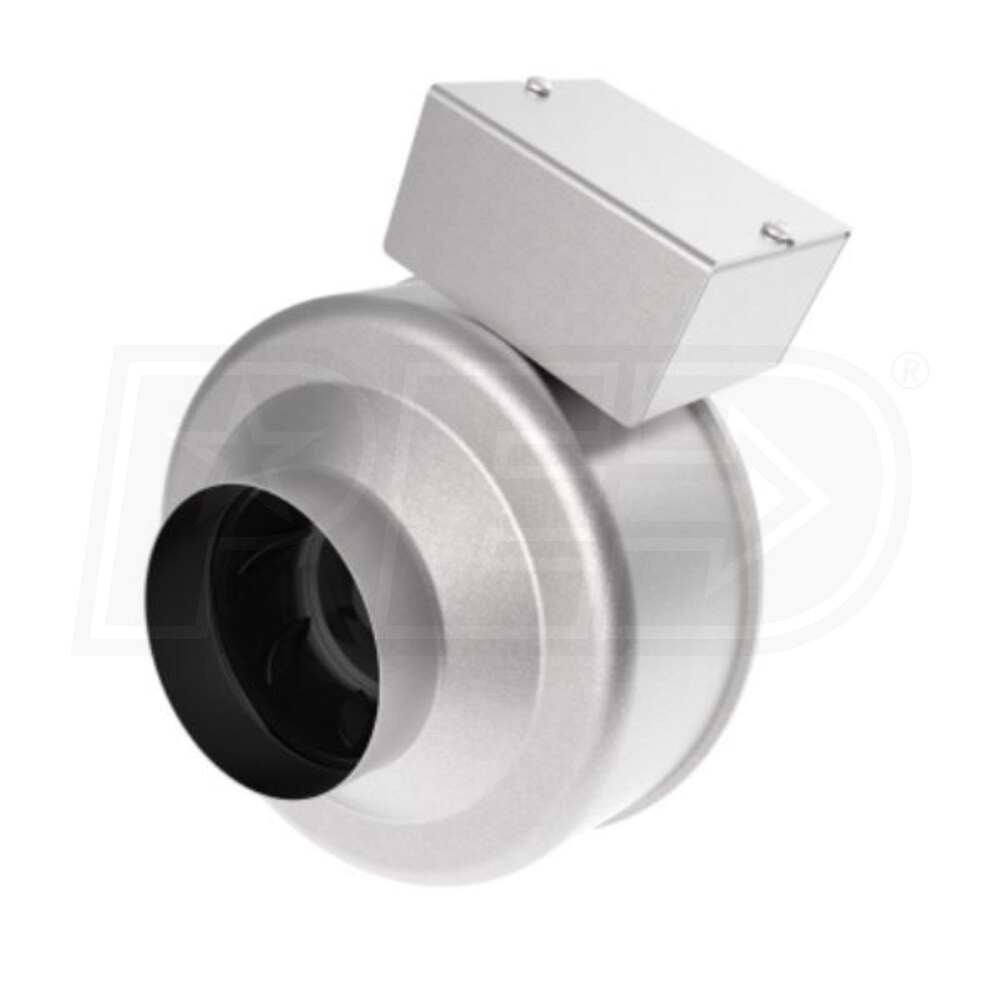

Fantech FG 4XL EC
Hover to zoom
1 of 1

Fantech FG EC - 166 CFM at 0.2" Static Pressure - Inline Duct Fan - 4" Duct - ECM Motor - 120V

Model:

FG 4XL EC

Write A Review
$273.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$46 / Month
Suggested monthly payments with 6 month financing.
Fantech FG EC - 166 CFM at 0.2
Fantech FG EC - 166 CFM at 0.2" Static Pressure - Inline Duct Fan - 4" Duct - ECM Motor - 120V
Model: FG 4XL EC
$273.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 4
$42.00
$98.00
$15.00
$16.00

Features

    Featuring a galvanized steel housing, the Fantech FG 4XL EC Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120-volt model can produce a maximum airflow of up to 180 CFM. The FG 4XL EC is constructed with a 4" round duct. Fans include a bracket for mounting to a ceiling or wall. FG EC Series Inline Fans are rated for outdoor use. The FG 4XL EC is equipped with electronically commutated energy-efficient motor which uses up to 30% less energy than standard AC fans. Not only does energy-efficiency save on energy costs, but reduced heating during use increases the motor's lifespan and limits maintenance costs.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Electronically Commutated Motor
  • The FG 4XL EC can be varied in speed to match your demand while using 30% less energy than traditional AC fans.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Speed Control
  • The FG 4XL EC's operation and speed can be controlled with the integrated potentiometer, a remote mounted potentiometer, an external 0-10Vdc signal, or through a Building Management System (BMS).

Specifications

FG 4XL EC
specs product image PID-82054
Overview
Product Category
Fans
UPC
650737601553
Additional Model Numbers

FG4XLEC, FG 4XL EC

General Information
Type
Duct Fan
Product Line
FG
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
180 CFM
Electrical Data
Voltage
120 Volts
Power Consumption
33 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.48 Amps
Dimensions
Duct Connection
4 Inches
Product Diameter
13 1/2 Inches
Shipping Weight
7 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years

Reviews

(1)
Fantech FG 4XL EC Reviews & Ratings
Verified Buyer
Verified Buyer
Works as expected
By Michael P
Roswell, Georgia
Purchased 11/20/2018 |
Review Posted 01/11/2019
The blower works as expected, smooth running starts well. Speed controller has a smaller range than expected but it does noticeably reduce the speed. Since I used rigid steel 6" duct the noise level is higher than I would like but it is quieter than my old kitchen exhaust fan. If I had to do this again I might spring for the muffler or try to isolate the blower connections to the duct work better.
Michael P Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the FG6.
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
