Fantech FG5XL
Fantech FG5XL
Hover to zoom
1 Of 5

Fantech FG - 220 CFM - Inline Duct Fan - 5" Duct - 120V

Model:

FG5XL

Write A Review
$195.00
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$33 / Month
Suggested monthly payments with 6 month financing.
Fantech FG - 220 CFM - Inline Duct Fan - 5
Fantech FG - 220 CFM - Inline Duct Fan - 5" Duct - 120V
Model: FG5XL
$195.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

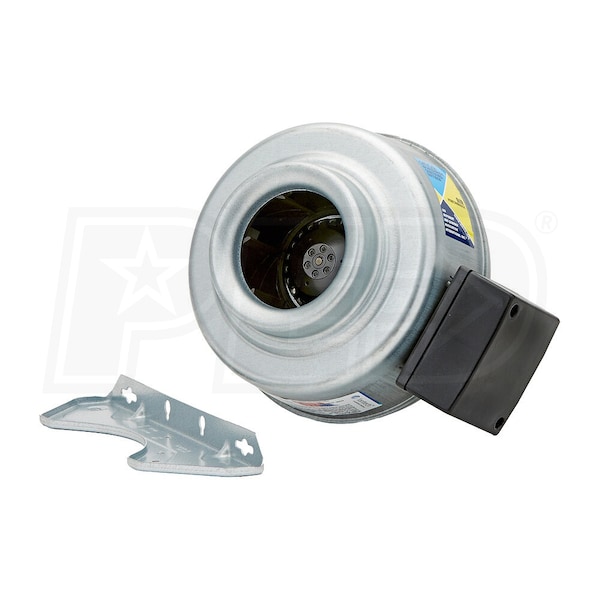

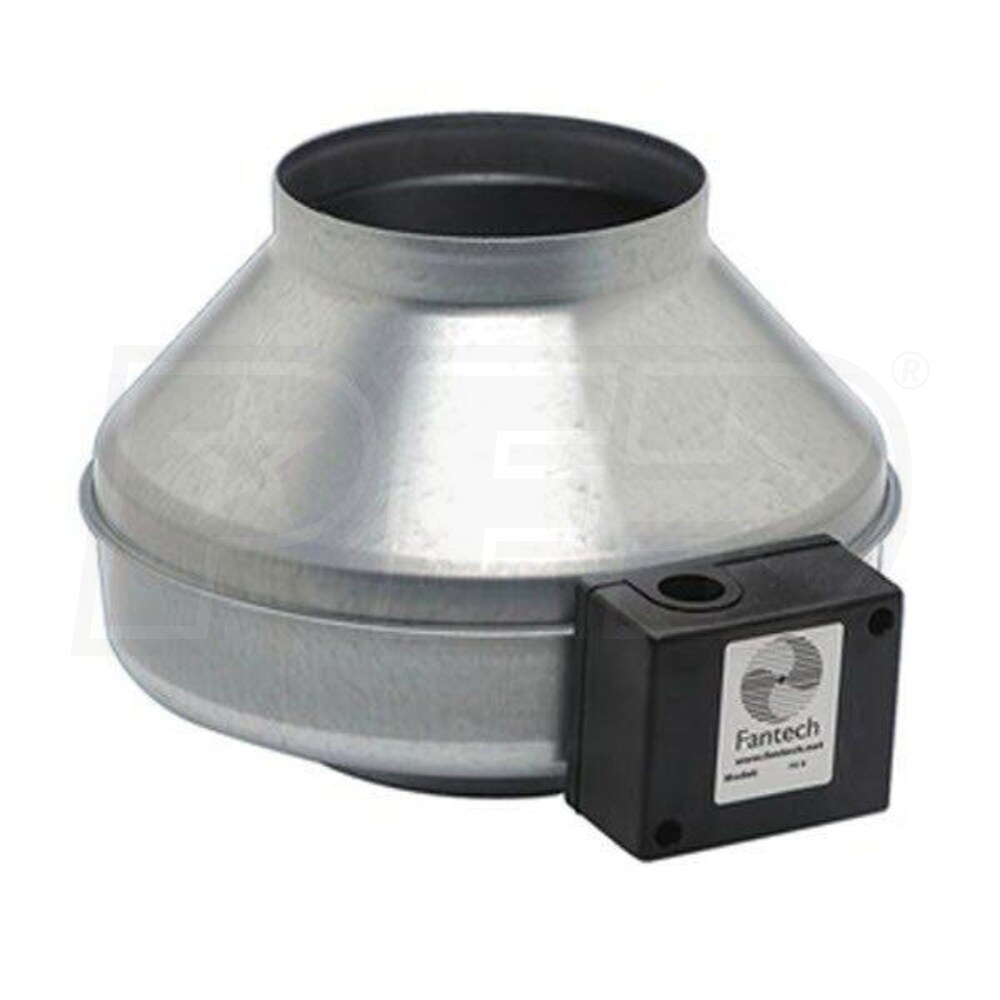

    Featuring a galvanized steel housing, the Fantech FG 5XL Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any inline application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 220 CFM. This inline duct fan is constructed with a 5" round duct. The FG 5XL duct fan is rated for air temperatures of up to 140 degrees Fahrenheit and feature a backward curved impeller for improved air flow. Fans include a bracket for mounting to a ceiling or wall. FG Series Inline Fans are rated for outdoor use.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.

Specifications

FG5XL
specs product image PID-31148
Overview
Product Category
Fans
UPC
650737562076
General Information
Type
Duct Fan
Product Line
FG
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
220 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.68 Amps
Dimensions
Duct Connection
5 Inches
Product Diameter
9 3/4 Inches
Shipping Width
13 Inches
Shipping Height
12 Inches
Shipping Length
13 Inches
Shipping Weight
8 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
