Features
- Thermal Overload Protection
- Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
- Backward Curved Impeller
- Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
- Permanently Lubricated Sealed Ball Bearings
- Permanently lubricated sealed ball bearings extend the service life of your fan.

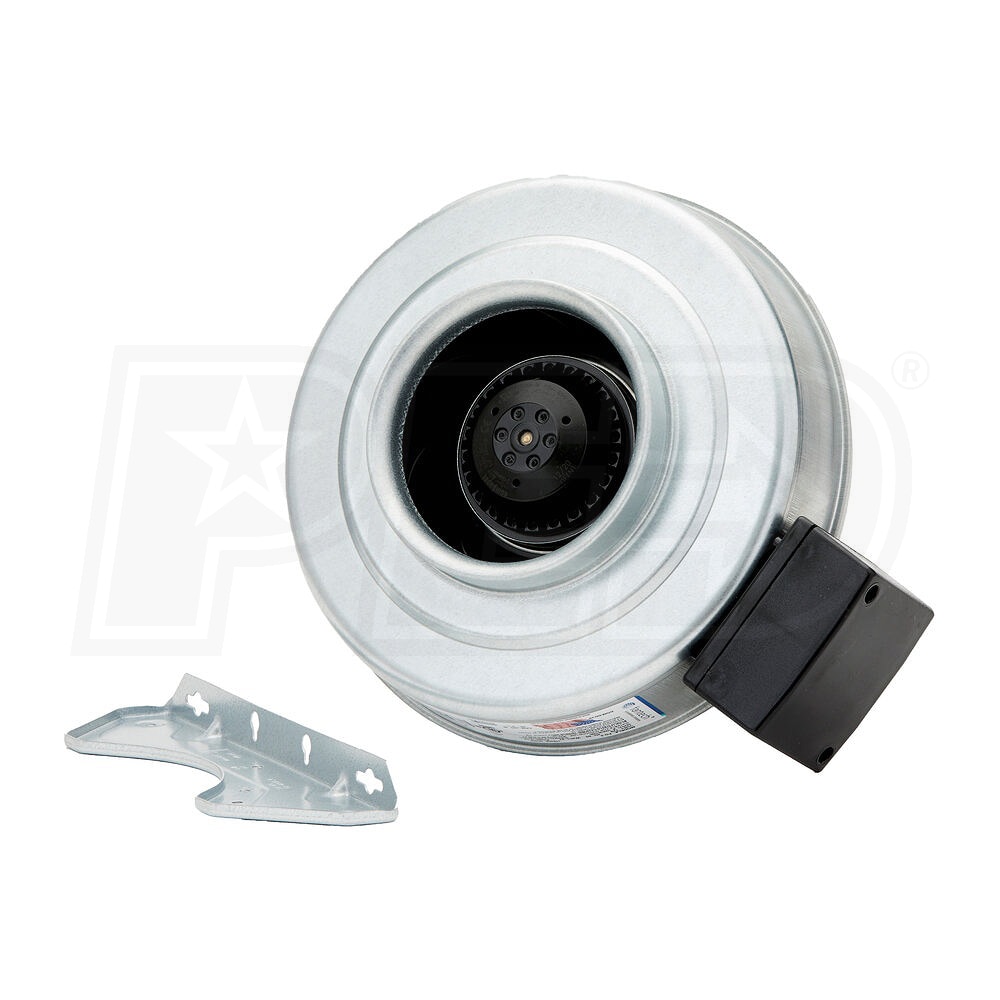

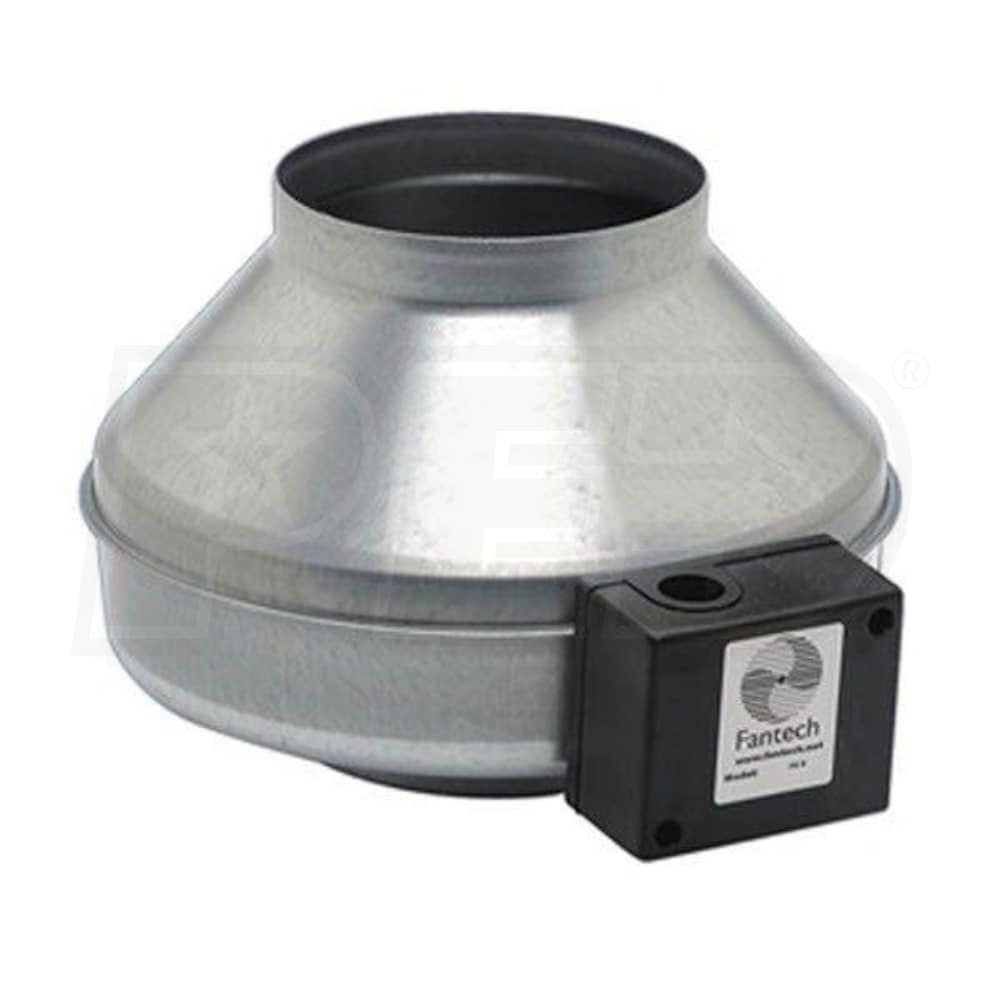

Featuring a galvanized steel housing, the Fantech FG 6XL Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any inline application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 483 CFM. This inline duct fan is constructed with a 6" round duct. The FG 6XL duct fan is rated for air temperatures of up to 140 degrees Fahrenheit and feature a backward curved impeller for improved air flow. Fans include a bracket for mounting to a ceiling or wall. FG Series Inline Fans are rated for outdoor use.
Specifications
FG6XL

Overview
Product Category
Fans
UPC
650737480653
General Information
Type
Duct Fan
Product Line
FG
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
483 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.48 Amps
Dimensions
Duct Connection
6 Inches
Product Diameter
13 1/8 Inches
Shipping Width
17 Inches
Shipping Height
12 Inches
Shipping Length
17 Inches
Shipping Weight
12 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(6)
Fantech FG6XL Reviews & Ratings

Works as expected
By Michael P
Roswell, Georgia
Purchased 11/20/2018 |
Review Posted 01/11/2019
The blower works as expected, smooth running starts well. Speed controller has a smaller range than expected but it does noticeably reduce the speed. Since I used rigid steel 6" duct the noise level is higher than I would like but it is quieter than my old kitchen exhaust fan. If I had to do this again I might spring for the muffler or try to isolate the blower connections to the duct work better.
Michael P Recommends This
Was this review helpful?
Rating Breakdown
3/5
5/5
4/5
4/5

Thank you for friendly service
By Stefan W.
New York, New York
Purchased 06/06/2016 |
Review Posted 07/07/2016
Thank you, good product!
Stefan W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
5/5

A great little fan
By Peter H.
Natick, Massachusetts
Purchased 03/02/2016 |
Review Posted 04/02/2016
I bought this in-line fan to pump warm air into a chase containing hot and cold water pipes. When outdoor temperatures drop below 15 degrees Fahrenheit, the air in the chase falls below freezing, so I was worried that the pipes would freeze.
This little fan together with flex duct (I stripped away the outer insulation) solved the problem. I have a thermostat in the chase and a control system that turns on the fan when the chase temperature drops below 40 degrees F.
Now I can spend time in warmer climates when New England gets too cold for most warm blooded creatures.
This little fan together with flex duct (I stripped away the outer insulation) solved the problem. I have a thermostat in the chase and a control system that turns on the fan when the chase temperature drops below 40 degrees F.
Now I can spend time in warmer climates when New England gets too cold for most warm blooded creatures.
Peter H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
4/5

Great price, fast service
By Tom
Washington
Review Posted 10/15/2014
The FG8 is not easily found on the market. E-Comfort has it at a very fair price and they were easy to work with. The E-comfort telephone operator was cheerful, helpful and informed. E-Comfort shipped the fan for free. The product works exactly as expected, which is excellent.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Love is FanTECH
By Banhxeo76
IL
Review Posted 08/18/2014
I used this inline fan to hook up to my vent hood in my kitchen. Even though this product was assembled in America, the motor was made in Germany and you certainly can't go wrong with German technology. I also brought LD10 silencer to attach directly to the fan and placed the silencer between the vent hood and the fan. I also purchased the FC10 clamp to hold the silencer and fan in place. I find the clamp itself was not good enough to hold fan and the silencer. To give me a piece of mind, I first used the metal tape to tape the silencer and motor together. Second, I snapped in 10" metal duct and screwed 8 Marco zip 1/2" screws (4 screws for silencer and 4 screws for motor). I applied another layer of metal tape over the screws to seal any potential air that may escape. Finally, I used the FC10 clamp to lock everything up. I used flexible duct for two sections. First section is to connect vent hood to the silencer and last one is to connect fan to the roof cap. The flexible duct is highly recommended to prevent any vibration from the fan. I turned on my vent hood at the lowest setting and you can tell immediately that there are some good suction going on. It was so quiet and my refrigerator was actually louder. At the highest setting, you can't hear the fan that is located in the attic. The only thing I heard at the highest setting is the wind (similar to the sound of A/C return air). Cooked bacon, curry, fish sauce, other various other pungent ingredients and fan will suck all of unwanted odor out of house. Just a fantastic design and my only regret is that I wish I done this long time ago. Next to replace the bathroom vent with Fantech fan.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

FGC 6XL, 483 cfm
By Dennis
IL
Review Posted 07/22/2014
One fan, and A coil is not freezing up has run from 6 am till now -- 7:30pm at 93 degrees outside temp---- other two should be coming to their new home soon
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
