Features
- Fans
- Two factory-balanced fans with backward curved blades. Motors have permanently lubricated sealed ball-bearings to guarantee long life and maintenance-free operation.
- Energy Recovery Core
- AHRI certified core made from water vapor transport durable polymer membrane that is highly permeable to humidity.
- Frost Prevention
- A preset frost prevention sequence is activated at an outdoor air temperature of 14F degrees (-10C ) and lower.
- Serviceability
- Core conveniently slides out with only 8" clearance and filters, fans and electrical panel can be accessed easily from the access panel.
- Duct Connections
- 4" round metal duct connections with rubberized seal.
- Product Includes
- (1) FIT70E Energy Recovery Ventilator (ERV).
- (1) Ceiling bracket.
- (2) Angle brackets.

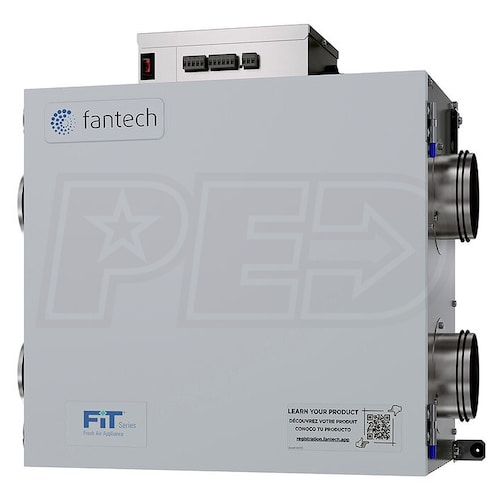

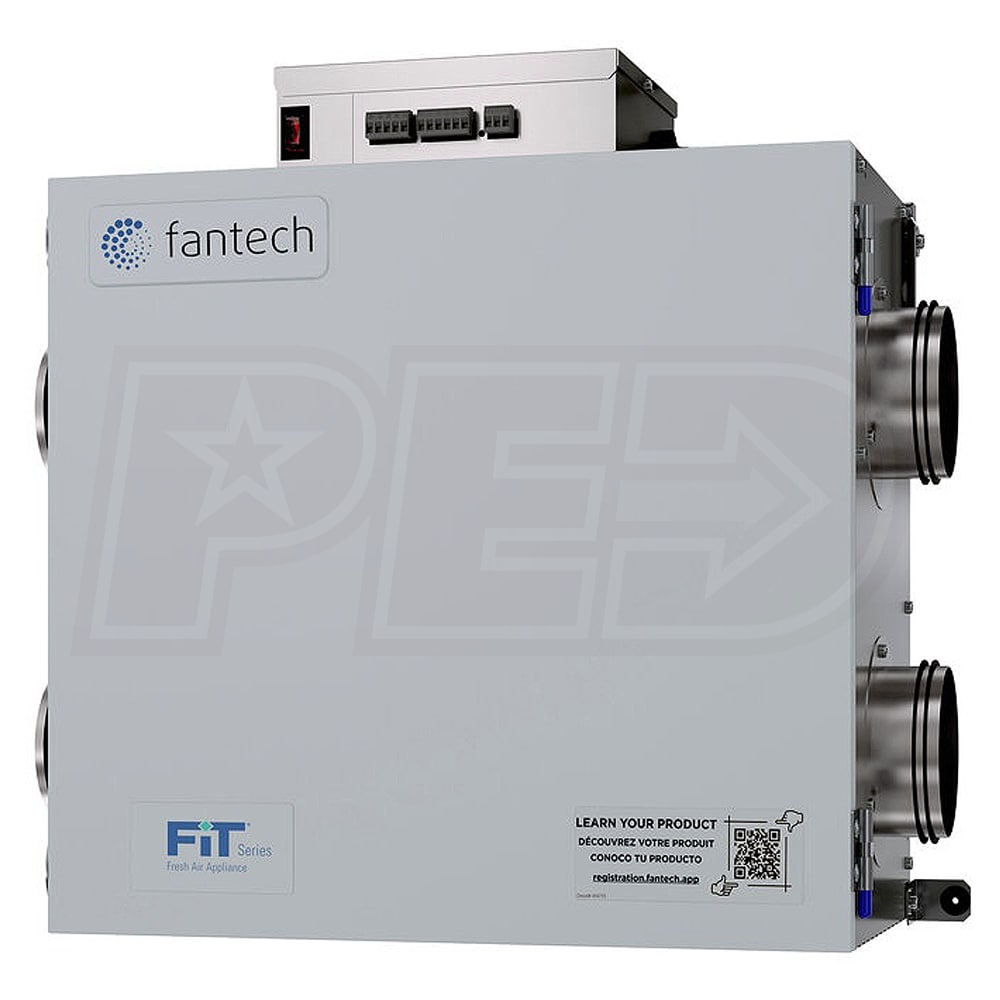

The Fantech FIT70E Energy Recovery Ventilator (ERV) has a slim profile, 4" side port connection, energy recovery core, supply fan modulation for frost prevention, and more. This 70-cfm appliance is ideally suited for condominiums and apartments. The FIT70E brings a continuous supply of fresh air into the premises while exhausting an equal amount of contaminated air out. The energy recovery core transfers both heat and moisture from the outgoing exhaust air to the incoming fresh air reducing the energy required to condition it. In summertime, the appliance cools and removes humidity from the fresh air and in wintertime, it heats it while retaining humidity to keep the living area comfortable year-round.
Specifications
FIT70E
General Information
Type
ERV
Product Category
Energy Recovery Ventilators (ERVs)
Ports Quantity
4
Port Location
Side
Performance
Maximum Air Flow
70 CFM
Apparent Sensible Effectiveness
72 %
Minimum Air Flow
51 CFM
Total Recovery Efficiency
40 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
4 Inches
Product Height
17 1/4 Inches
Product Width
18 1/2 Inches
Product Depth
10 3/8 Inches
Product Weight
29 Pounds
Shipping Width
13 Inches
Shipping Height
21 Inches
Shipping Length
11 Inches
Shipping Weight
29 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
