Fantech FKD12XL-230
Fantech FKD12XL-230
Hover to zoom
1 Of 5

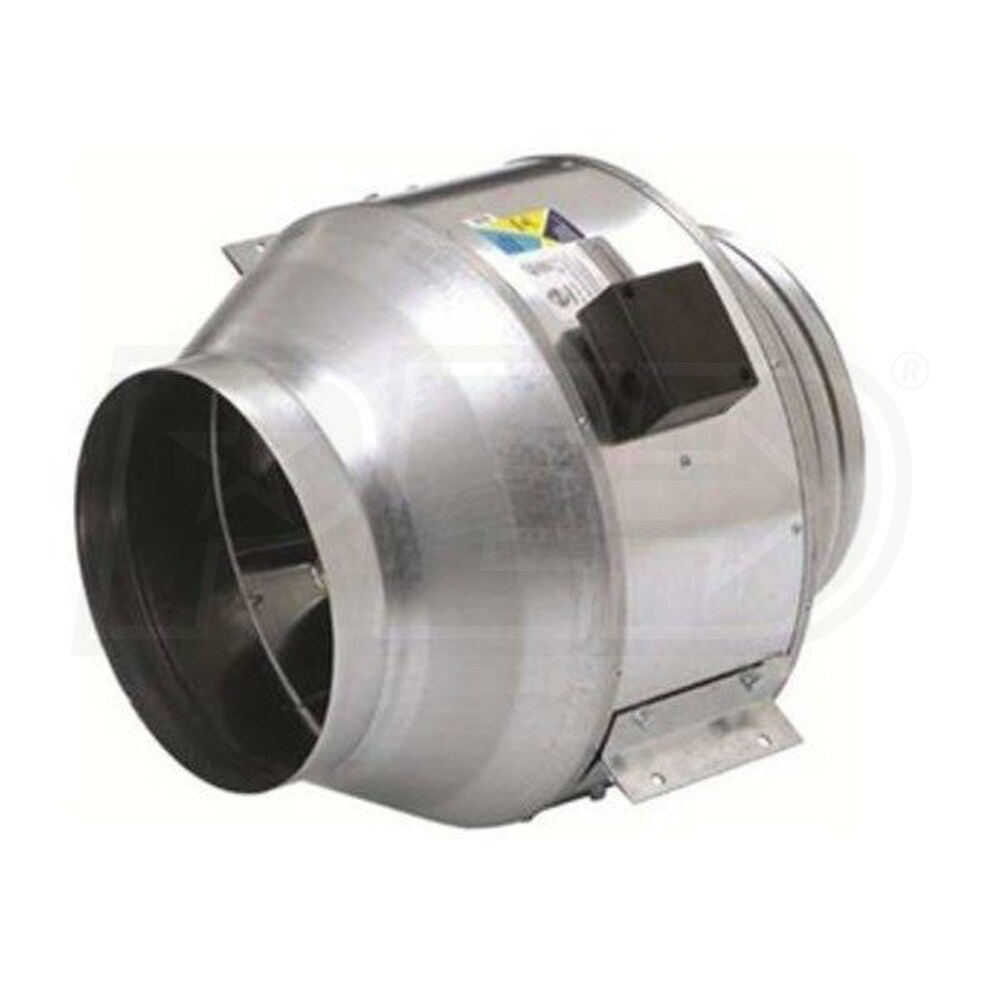

Fantech FKD 2,016 CFM Inline Duct Fan 12" Duct 230V

Model:

FKD12XL-230

Write A Review
$962.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
synchrony card logo
$161 / Month
Suggested monthly payments with 6 month financing.
Fantech FKD 2,016 CFM Inline Duct Fan 12
Fantech FKD 2,016 CFM Inline Duct Fan 12" Duct 230V
Model: FKD12XL-230
$962.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

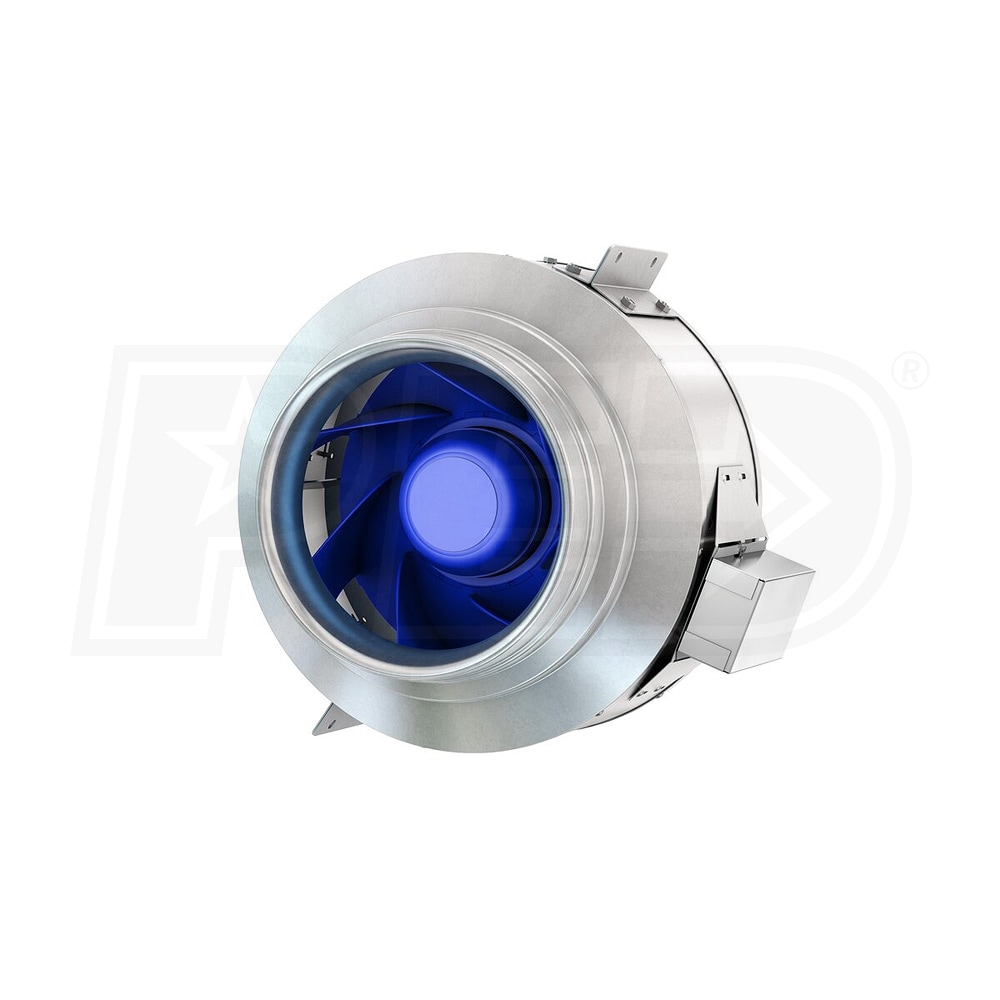

    Featuring a galvanized steel housing, the Fantech FKD 12XL-230 Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 230 volt model can produce a maximum airflow of up to 2,016 CFM. The FKD 12XL-230 is constructed with a 12" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.

Specifications

FKD12XL-230
specs product image PID-31455
Overview
Product Category
Fans
UPC
650737453008
General Information
Type
Duct Fan
Product Line
FKD
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
2016 CFM
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
12 Inches
Product Diameter
17 7/8 Inches
Product Height
18 7/8 Inches
Shipping Height
24 Inches
Shipping Width
20 Inches
Shipping Length
20 Inches
Shipping Weight
44 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
