Features
- Mixed Flow Centrifugal Fan
- Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
- Prewired Fan
- For your convenience, this fan is prewired and ready to install out of the box.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
- External Rotor Motor
- An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
- Thermal Overload Protection
- Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.

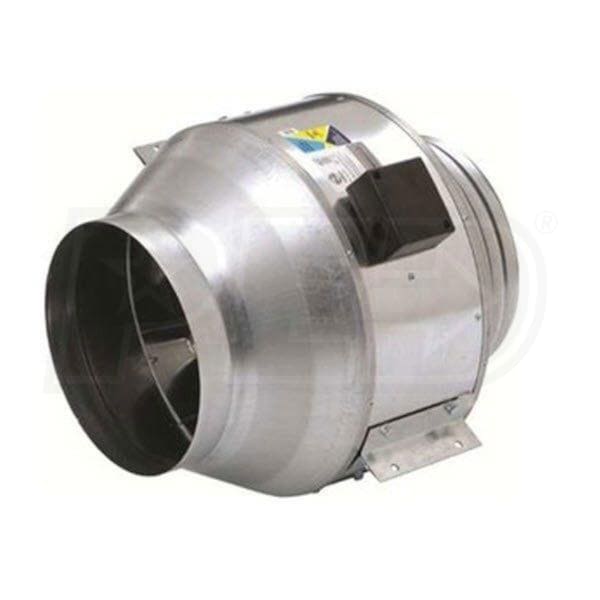

Featuring a galvanized steel housing, the Fantech FKD 12XL Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 115 volt model can produce a maximum airflow of up to 2,016 CFM. The FKD 12XL is constructed with a 12" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
Specifications
FKD12XL
Overview
Product Category
Fans
UPC
650737091255
General Information
Type
Duct Fan
Product Line
FKD
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
2016 CFM
Maximum Sound Level
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
18.7 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
4.8 Amps
Dimensions
Duct Connection
12 Inches
Product Diameter
17 7/8 Inches
Product Height
18 7/8 Inches
Shipping Height
24 Inches
Shipping Width
20 Inches
Shipping Length
20 Inches
Shipping Weight
44 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
