Features
- Mixed Flow Centrifugal Fan
- Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
- Prewired Fan
- For your convenience, this fan is prewired and ready to install out of the box.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction. The EC fans are controlled with a 0-10VDc signal.
- Efficient EC Motor
- High Efficient EC motor allows for less power consumption and reduced cost all around.
- Thermal Overload Protection
- Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.

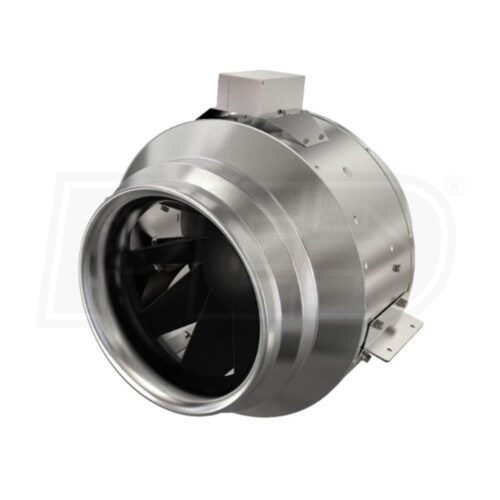

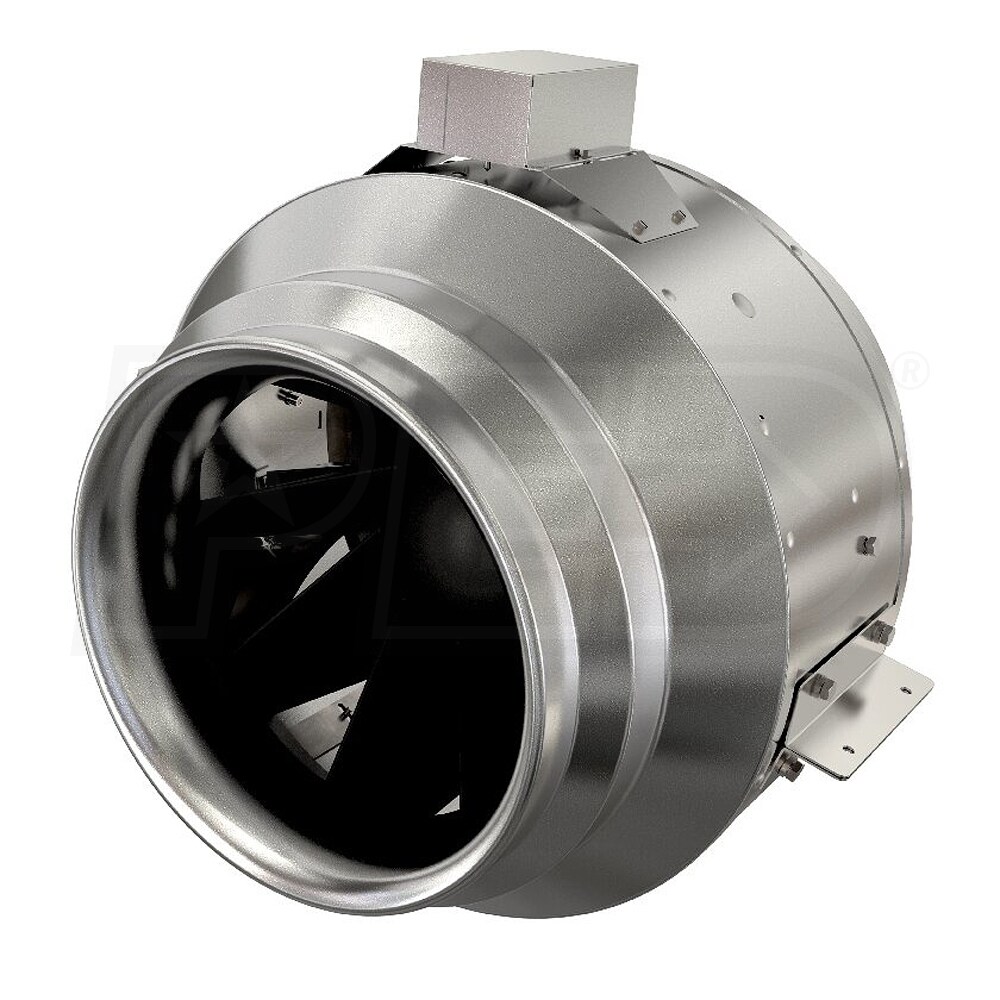

Featuring a galvanized steel housing, the Fantech FKD16XLEC Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 460 volt model can produce a maximum airflow of up to 5,136 CFM. The FKD16XLEC is constructed with a 16" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
Specifications
FKD16XLEC
Overview
Product Category
Fans
UPC
650737449565
Additional Model Numbers
FKD16XLEC, FKD16XLEC
General Information
Type
Duct Fan
Product Line
FKD
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
5196 CFM
Electrical Data
Voltage
460 Volts
Power Consumption
1965 Watts
Phase
3
Frequency
60 Hz
Dimensions
Duct Connection
16 Inches
Product Height
22 1/8 Inches
Product Width
23 3/4 Inches
Product Weight
75 Pounds
Shipping Height
28 Inches
Shipping Width
23 Inches
Shipping Depth
23 Inches
Shipping Weight
85 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
