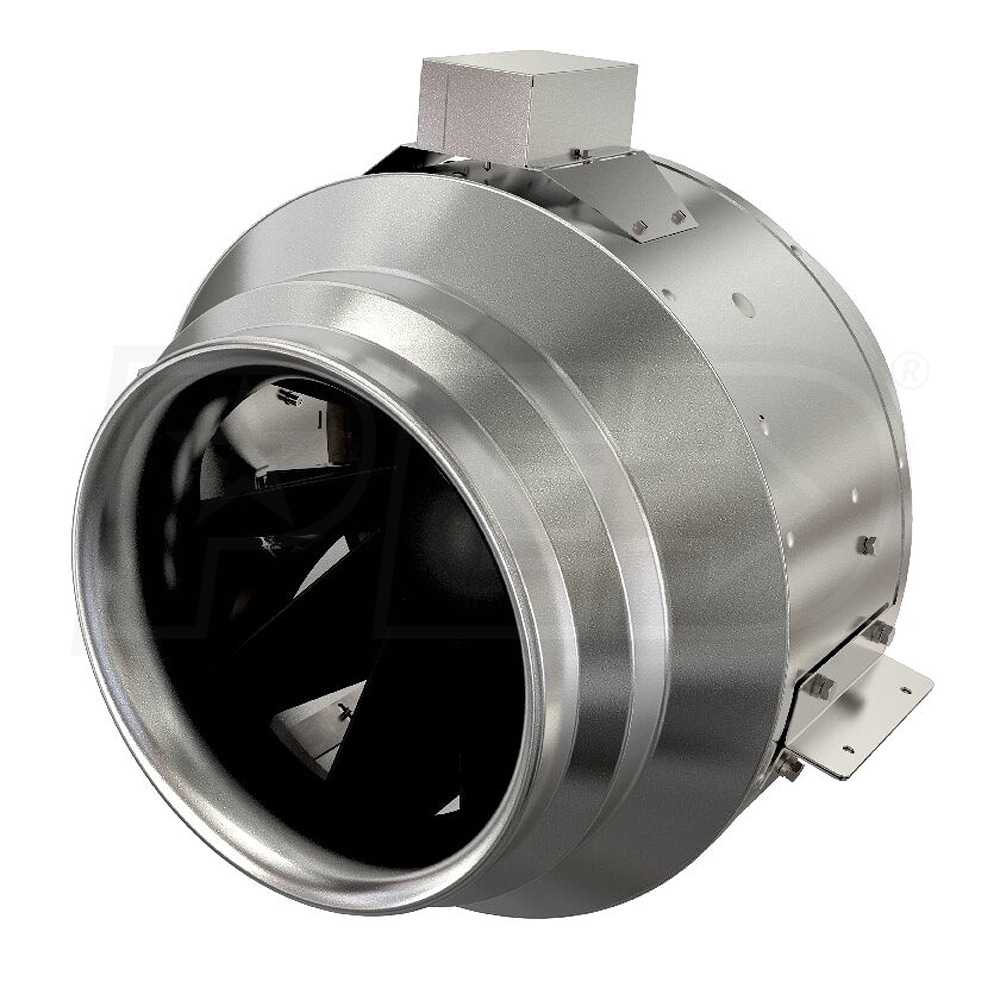

Fantech FKD - 6,062 CFM - Inline Duct Fan - 20" Duct - 460V

Model:

FKD20EC

Write A Review
$3,400.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks
synchrony card logo
$60 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Fantech FKD - 6,062 CFM - Inline Duct Fan - 20
Fantech FKD - 6,062 CFM - Inline Duct Fan - 20" Duct - 460V
Model: FKD20EC
$3,400.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Featuring a galvanized steel housing, the Fantech FKD20EC Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 460 volt model can produce a maximum airflow of up to 6,062 CFM. The FKD20EC is constructed with a 20" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.

    Product Features

    Mixed Flow Centrifugal Fan
    Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.

    Prewired Fan
    For your convenience, this fan is prewired and ready to install out of the box.

    100% Speed Controllable
    On-demand ventilation and precision balancing of systems is controllable through voltage reduction. The EC fans are controlled with a 0-10VDc signal.

    Efficient EC Motor
    This product is equipped with a highly efficient EC motor which uses significantly less power.

    Thermal Overload Protection
    Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.

Specifications

FKD20EC
specs product image PID-62614
Overview
Product Category
Fans
UPC
650737449582
Additional Model Numbers

FKD20EC, FKD20EC

General Information
Product Line
FKD EC
Product Category
Fans
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
6062 CFM
Electrical Data
Voltage
460 Volts
Power Consumption
2002 Watts
Phase
3
Frequency
60 Hz
Dimensions
Duct Connection
20 Inches
Product Height
26 5/48 Inches
Product Width
27 5/24 Inches
Product Weight
99.2 Pounds
Shipping Height
30 Inches
Shipping Width
30 Inches
Shipping Depth
30 Inches
Shipping Weight
109 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
