Features
- Plastic Housing
- Plastic housings are UV protected and allow the fan to be mounted in wet and outdoor locations.
- Prewired Fan
- For your convenience, this fan is prewired and ready to install out of the box.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
- External Rotor Motor
- An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
- Product Includes
- (1) 263 CFM Inline Fan
- (1) Mounting Bracket

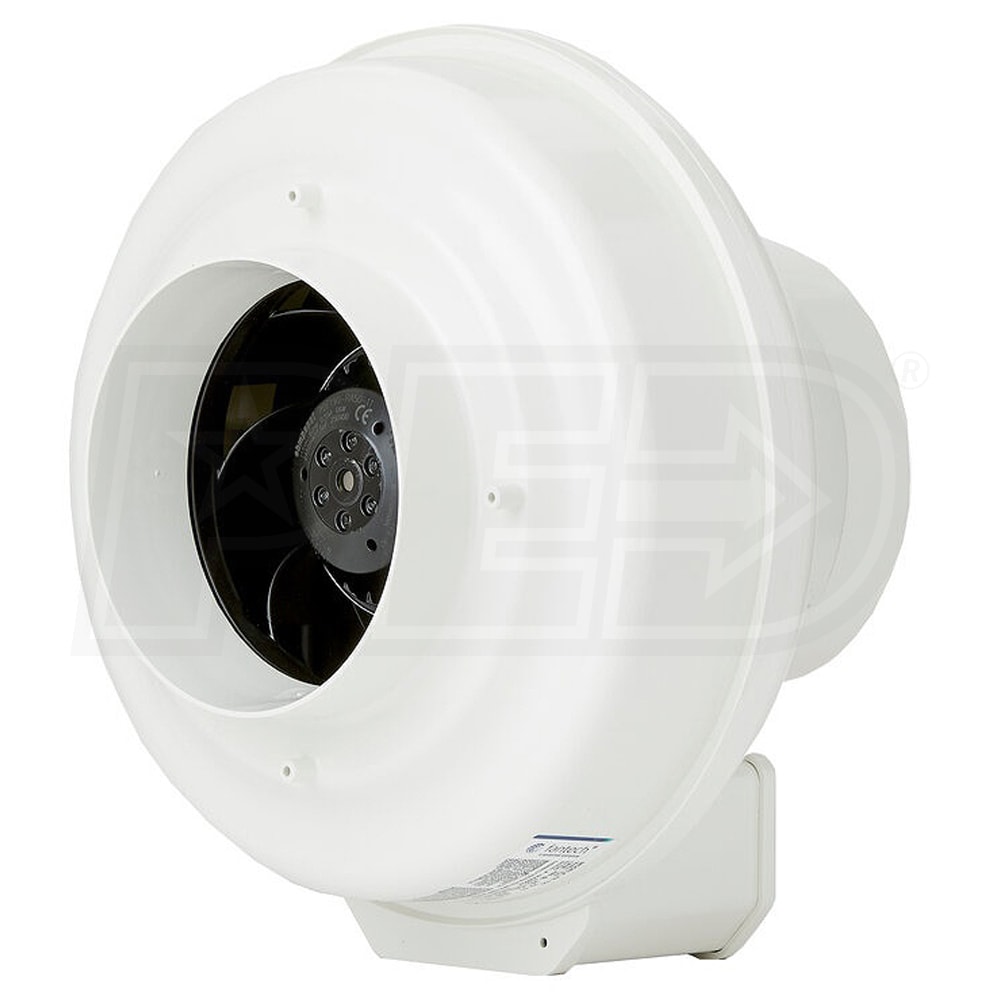

Featuring a plastic housing constructed of UL-recognized, UV protected thermoplastic resin, the Fantech FR 150 Centrifugal Inline Duct Fan is weather-resistant and can be mounted in outdoor or wet locations and can be used for a variety of exhaust applications. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 263 CFM. The FR 150 is constructed with a 6" round duct. It is constructed with an external rotor motor. Fans come prewired and include a mounting bracket easy installation. FR Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
Specifications
FR150
Overview
Product Category
Fans
UPC
650737011505
General Information
Type
Duct Fan
Product Line
FR
Product Category
Fans
Mount Type
Inline
Housing Material
Plastic
Performance
Maximum Air Flow
263 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.67 Amps
Dimensions
Duct Connection
6 Inches
Product Diameter
11 3/4 Inches
Shipping Width
13 Inches
Shipping Height
11 Inches
Shipping Length
13 Inches
Shipping Weight
8 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
