Features
- Duct-to-Duct Installation
- A compact rectangular design allows for installation directly within rectangular ductwork without the need for large elbows or transitions.
- Easy Maintenance
- All serviceable components are easily accessible in under 5 minutes.
- Backward Curved Impeller
- Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
- Permanently Lubricated Motor
- Permanently lubricated sealed ball bearings keep your fan working maintenance-free.

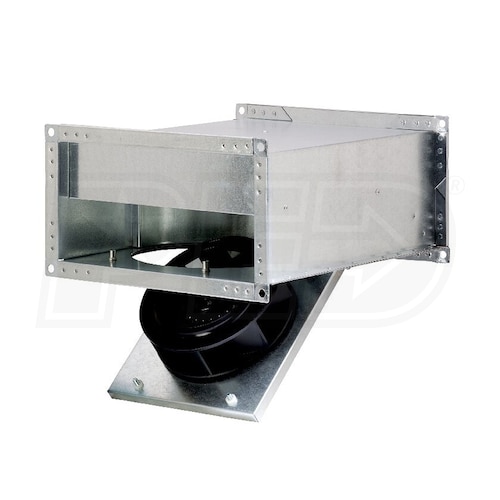

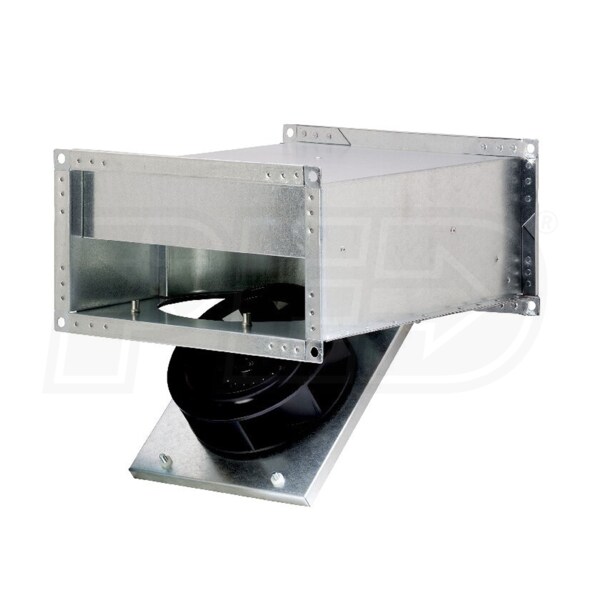

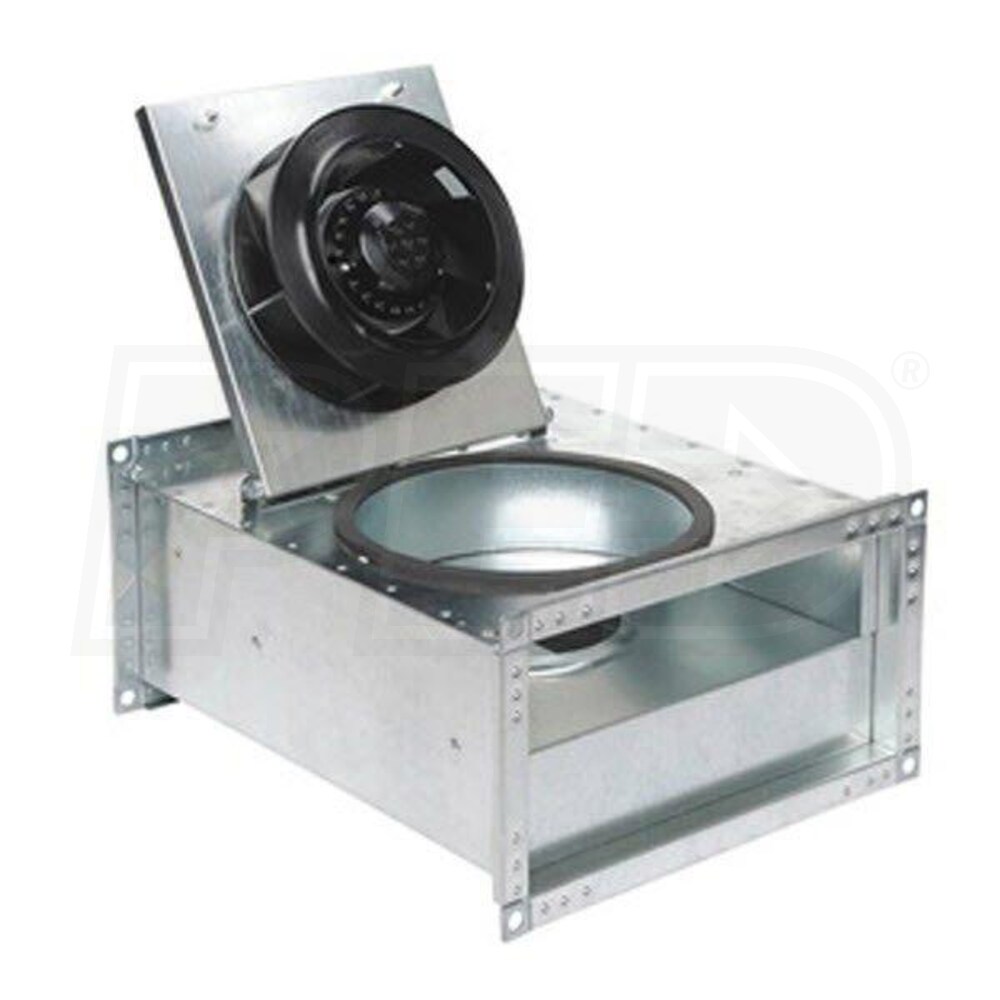

The Fantech FRD 20-10-230 Rectangular Inline Duct Fan is a 964 CFM centrifugal supply and exhaust fan designed for large ventilation in areas of limited space. It is constructed for 20 x 10 inch venting. FRD Series Duct Fans can install directly within equally sized rectangular ductwork without the need for transitions. The motor is mounted on a hinged door for easy access. This unit is wired for 230 volts.
Specifications
FRD20-10-230
Overview
Product Category
Fans
UPC
755897385296
General Information
Type
Duct Fan
Product Line
FRD
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
964 CFM
Maximum Sound Level
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
16 Sones
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.86 Amps
Dimensions
Duct Connection
20 Inches
Product Height
9 3/4 Inches
Product Width
19 5/8 Inches
Product Length
20 3/8 Inches
Shipping Height
14 Inches
Shipping Width
25 Inches
Shipping Length
26 Inches
Shipping Weight
43 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
