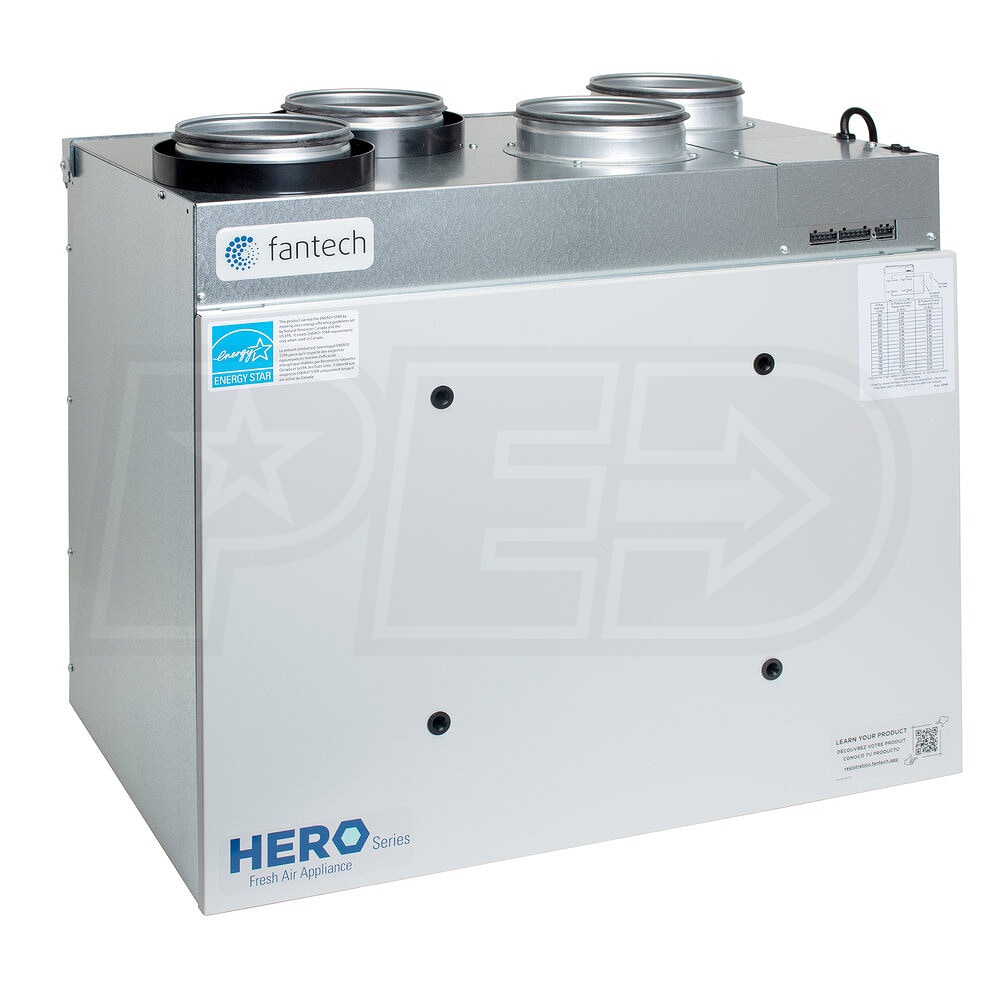

Fantech HERO - 263 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Duct - Recirculation Defrost

Model:

HERO 250H-EC

Write A Review
$1,695.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$283 / Month
Suggested monthly payments with 6 month financing.
Fantech HERO - 263 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6
Fantech HERO - 263 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Duct - Recirculation Defrost
Model: HERO 250H-EC
$1,695.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Fantech HERO 250H-EC Heat Recovery Ventilator (HRV) is a 263 CFM heat recovery ventilator with top ports and recirculation defrost capabilities. The HERO 250H-EC is a 120 volt unit designed with 4 ports with 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The HERO 250H-EC Heat Recovery Ventilator (HRV) features a counterflow core, washable electrostatic filters and an EC motor.
  • Exceptional Efficiency
  • The Fantech HERO is capable of extracting up to 82% of the heat from the air exiting your home, which is then used to temper the fresh air coming in. With efficiency like that, the Fantech HERO will be your hero!
  • Healthier Home
  • Without proper ventilation, you are subject to indoor air pollutants like chemical products, pet dander or building materials. With an HRV, your home will be ventilated up to 20 times per day, making for a healthier home.
  • EC Motor
  • With integrated electronic controls, energy savings are ensurred no matter the airflow demands with an ECM. Less heat is created with an EC motor, resulting in less maintenance and longer life span.
  • Winterguard™
  • A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.
  • Washable Electrostatic Filters
  • Easily washable, these filters can be used throughout the life of the HERO. With the integrated MERV 8 filter, you will have exceptional filtration.
  • Easy Maintenance and Service
  • An access panel on the HERO allows for simple maintenance and serviceability. The core easily slides out with a 12" clearance for additional service ease.
  • Insulated Cabinet
  • The 24 gauge galvanized steel cabinet is insulated with 3/4" high density expanded polystyrene.
  • Product Includes
  • HERO 250H-EC HRV
  • Wall Mounting Speed Bracket

Specifications

HERO 250H-EC
specs product image PID-99369
Overview
Product Category
Heat Recovery Ventilators (HRVs)
General Information
Type
HRV
Product Line
HERO
Product Category
Heat Recovery Ventilators (HRVs)
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Ports Quantity
4
Port Location
Top
Performance
Maximum Air Flow
263 CFM
Apparent Sensible Effectiveness
90 %
Sensible Recovery Efficiency
82 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
6 Inches
Product Height
24 7/8 Inches
Product Width
27 7/8 Inches
Product Depth
13 3/8 Inches
Product Weight
55.6 Pounds
Shipping Height
24 7/8 Inches
Shipping Width
27 7/8 Inches
Shipping Length
15 3/8 Inches
Shipping Weight
62 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
