Features
- Fantech Makeup Air Controller (FMAC)
- The FMAC is a controller that allows the installer to select the appropriate pressure balance for your home. Once set, this controller will automatically adjust the air flow supply to match changing exhaust flows.
- EC Motor
- EC motors are some of the most efficient motors on the market. EC motors are not only more efficient, but also smaller and much quieter than standard AC motors. The EC motor in the MUAS750 can provide efficient, quiet, and effective air flow in your home.
- Shut-off Damper
- The MUAS750 has a motorized damper that remains closed until needed. This motorized damper opens only when the makeup air system is running to keep unwanted air out of the home.
- Filter Cassette
- The MUAS750 includes a MERV 8 filter cassette to ensure air you bring into your home is free from pollutants and contaminants. Replacing the filter is a snap, thanks to the easy access design.
- Optional Duct Heater
- An optional duct heater can be installed with the MUAS750 that heats the air as it enters your home. Set the desired temperature and enjoy the warm fresh air.

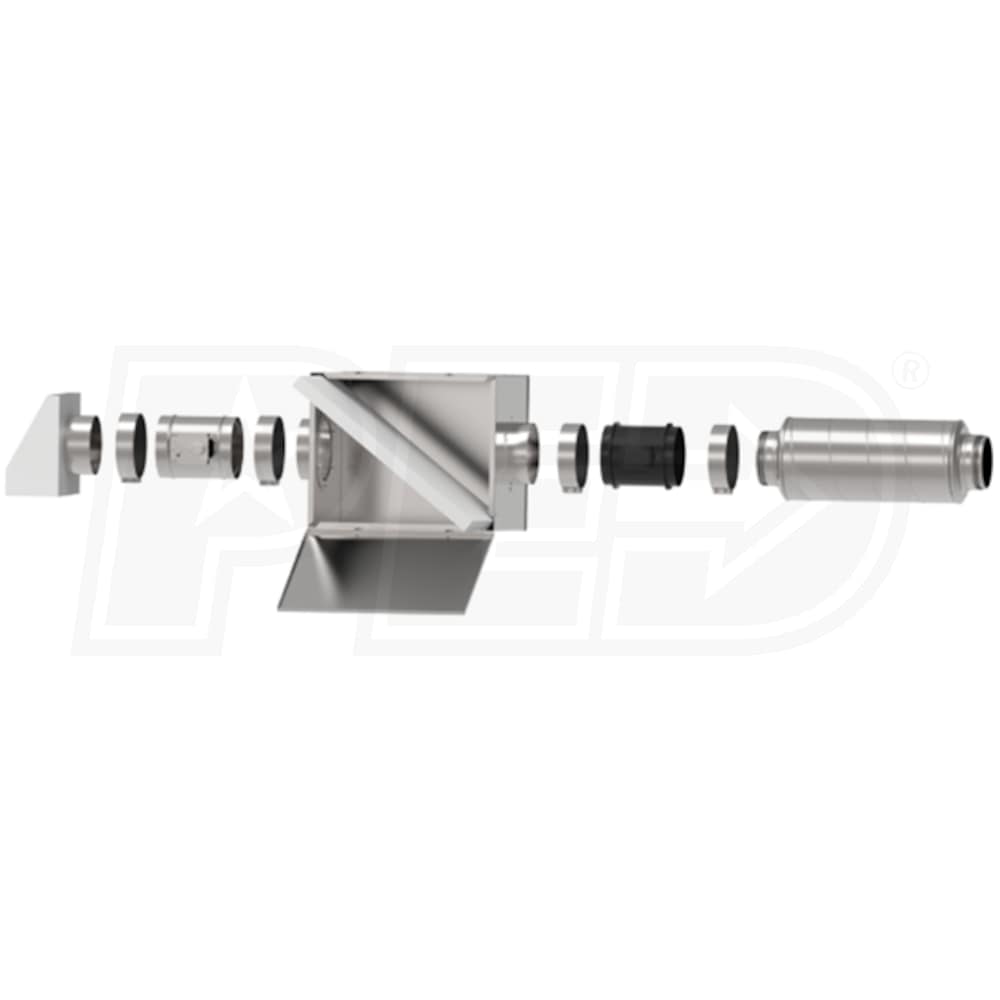

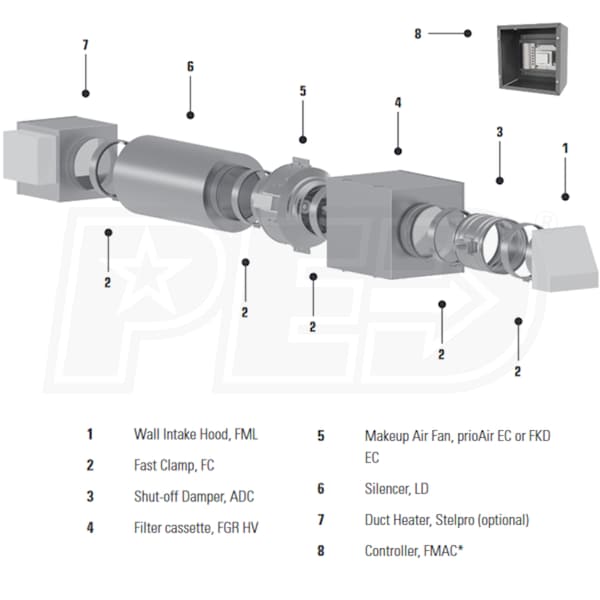

- Product Includes
- Fantech Makeup Air Controller (FMAC)
- Wall Intake Hood
- Shut-Off Damper
- Filter Cassette
- (6) Mounting Clamps
- Makeup Air Fan
- Duct Silencer
Modern homes are being built more tightly than ever before and you can no longer rely on passive means to replace the air exhausted by bathroom fans, kitchen exhaust hoods, and other ventilation devices. The Fantech MUAS750 Makeup air system is the perfect solution to bring in fresh air and protect your home from the consequences of low pressure. The MUAS uses the Fantech Makeup Air Controller to automatically detect the rate of exhaust air from your home and automatically adjust the air flow to maintain a safe and healthy pressure in your home.
Product Note
Fantech Makeup air systems comply with the International Residential Code (IRC).
Specifications
MUAS750
Overview
Product Category
Make-Up Air
UPC
650737460136
General Information
Product Line
MUAS
Product Category
Make-Up Air
Performance
Maximum Air Flow
750 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
8 Inches
Product Length
99 Inches
Product Weight
121 Pounds
Shipping Height
50 Inches
Shipping Width
40 Inches
Shipping Depth
48 Inches
Shipping Weight
121 Pounds
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
