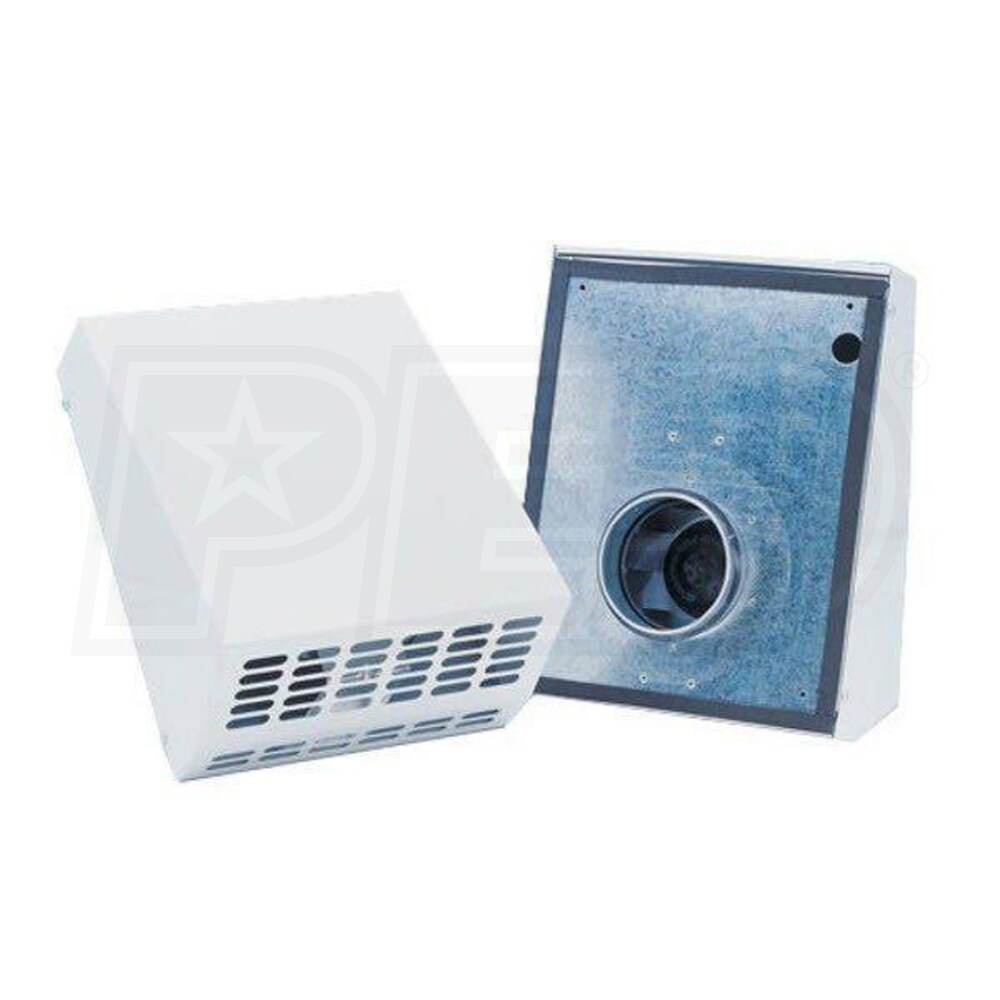

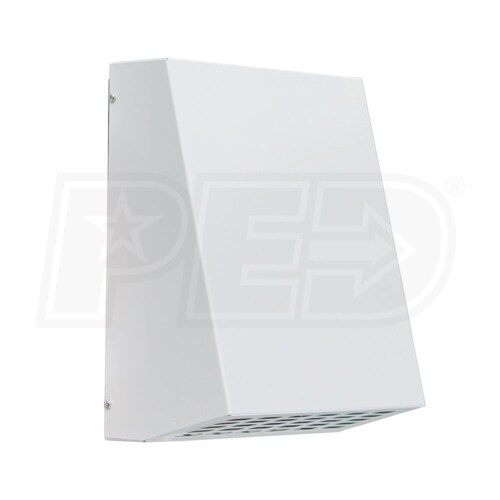

Fantech RVF 124 CFM Exterior Duct Fan Wall Mount 4" Duct

Model:

RVF4

Write A Review
$211.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$36 / Month
Suggested monthly payments with 6 month financing.
Fantech RVF 124 CFM Exterior Duct Fan Wall Mount 4
Fantech RVF 124 CFM Exterior Duct Fan Wall Mount 4" Duct
Model: RVF4
$211.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Featuring a galvanized steel housing, the Fantech RVF 4 Centrifugal Exterior Duct Fan is the perfect solution for direct through-wall ventilation where quiet operation is required in residential or commercial applications. RVF fan motors mount to the outside wall of the building limiting noise from operation. This 115 volt model can produce a maximum airflow of up to 124 CFM. The RVF 4 is constructed with a 4" round duct.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.

Specifications

RVF4
specs product image PID-31293
Overview
Product Category
Fans
UPC
650737230401
General Information
Type
Exterior Duct Fan
Product Line
RVF
Product Category
Fans
Mount Type
Wall
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
124 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.17 Amps
Dimensions
Duct Connection
4 Inches
Product Height
13 Inches
Product Width
10 1/4 Inches
Product Length
6 Inches
Shipping Width
11 Inches
Shipping Height
8 Inches
Shipping Length
14 Inches
Shipping Weight
8 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
