Features
- Permanently Lubricated Sealed Ball Bearings
- Permanently lubricated sealed ball bearings extend the service life of your fan.
- Quiet Operation
- By having the ability to be installed outdoors, all of the ambient noise is kept outside.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction. A pre-wired speed control potentiometer is included to control the EC motor for the most efficient solution for your needs.
- Easy Inspection
- By being located on an outside wall, you have easy access to the fan. This unit comes with a removable housing for immediate access to the motor and wiring.
- High Efficiency Motor
- The RVF6XLEC features a high efficiency EC motor that both reduces energy consumption and also provides 100% speed control.

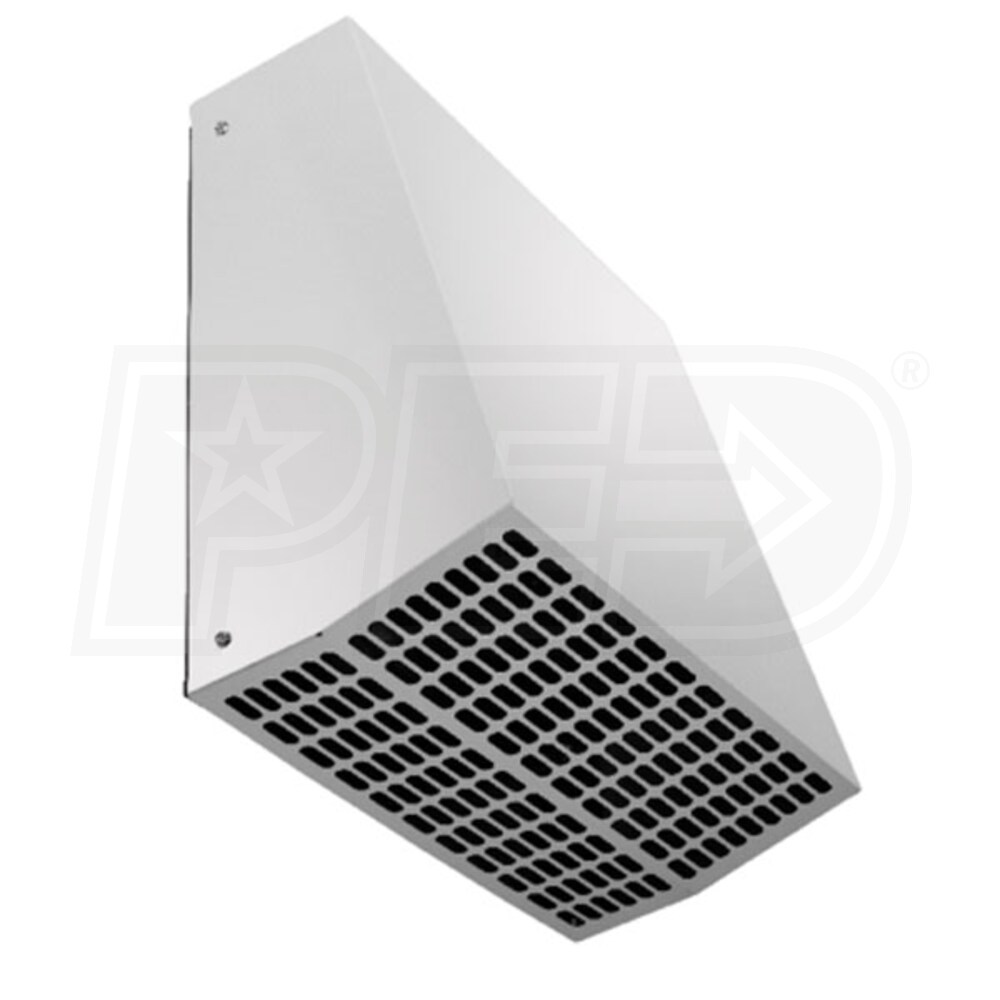

Featuring a galvanized steel housing, the Fantech RVF6XLEC Centrifugal Exterior Duct Fan is the perfect solution for direct through-wall ventilation where quiet operation is required in residential or commercial applications. RVF fan motors mount to the outside wall of the building limiting noise from operation. This 120 volt model can produce a maximum airflow of up to 409 CFM. The RVF6XLEC is constructed with a 6" round duct.
Specifications
RVF6XLEC
Overview
Product Category
Fans
UPC
650737448615
Additional Model Numbers
RVF6XLEC, RVF6XLEC
General Information
Type
Exterior Duct Fan
Product Line
RVF
Product Category
Fans
Mount Type
Wall
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
409 CFM
Electrical Data
Voltage
120 Volts
Power Consumption
69.2 Watts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
6 Inches
Product Height
17 Inches
Product Width
14 1/4 Inches
Product Length
8 Inches
Product Weight
17 Pounds
Shipping Width
16 Inches
Shipping Height
19 Inches
Shipping Depth
12 Inches
Shipping Weight
20 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
