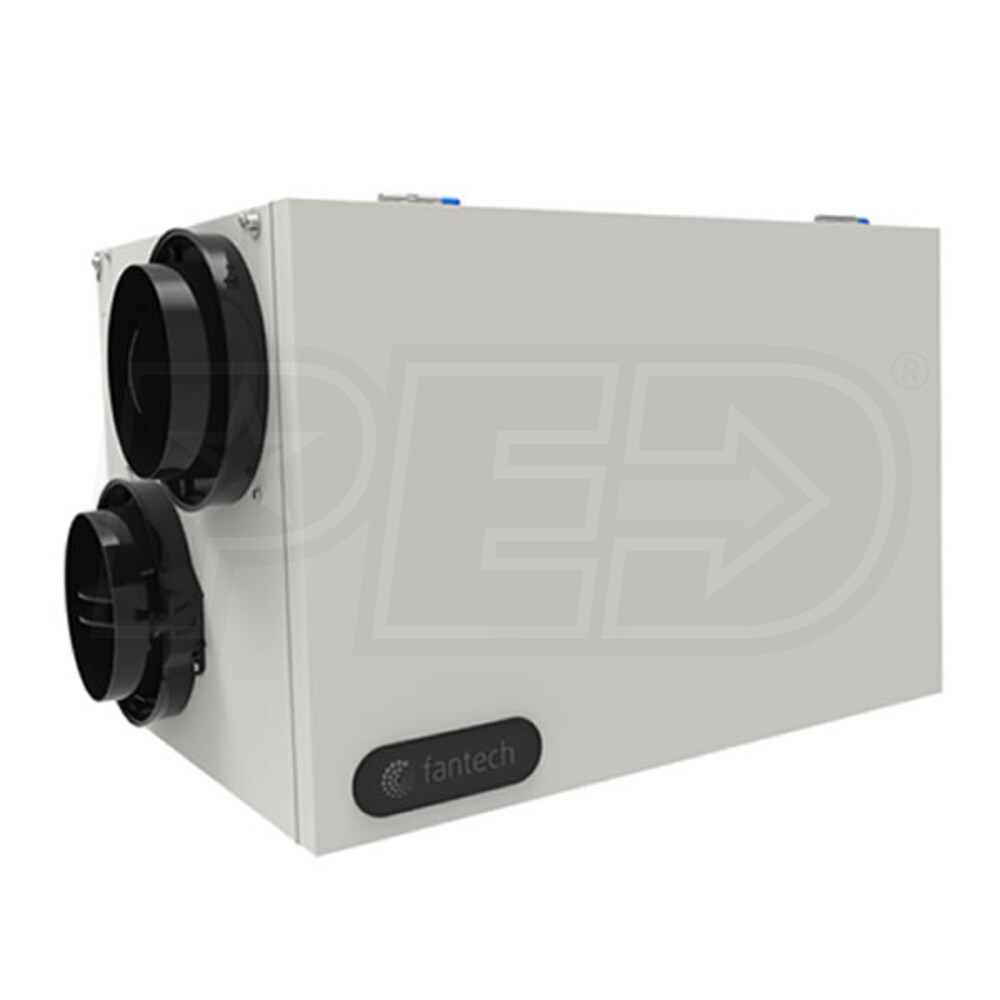

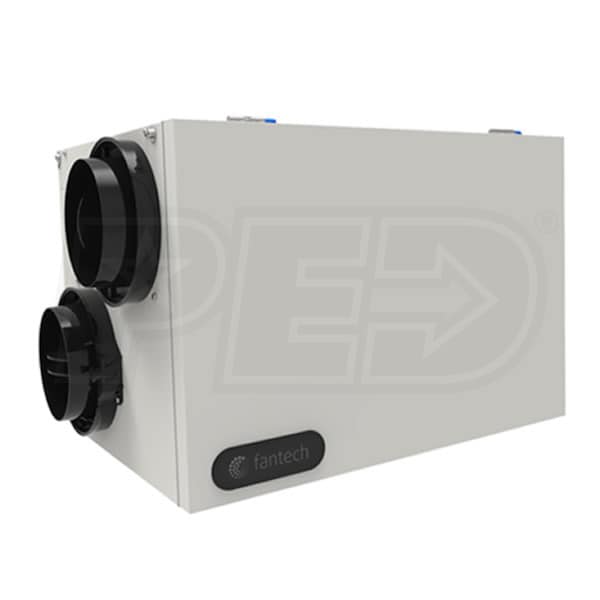

Fantech SHR - 195 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 6" Duct - Recirculation Defrost
Model:
SHR 200R
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Heat Recovery Core
- An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores. Fantech designs their heat recovery cores to withstand drastic temperature variations.
- Winter Protection
- A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.
- Controls
- An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
- Washable Electrostatic Filters
- Easily washable, these filters can be used throughout the life of the SHR 200R.
- Easy Maintenance and Service
- An access panel on the SHR 200R allows for simple maintenance and serviceability.
- Insulated Cabinet
- The 24 gauge galvanized steel cabinet is insulated with 1" high density expanded polystyrene. It also has a baked power coated paint for exceptional adhesion and resistance.
- Product Includes
- (4) Mounting bolts

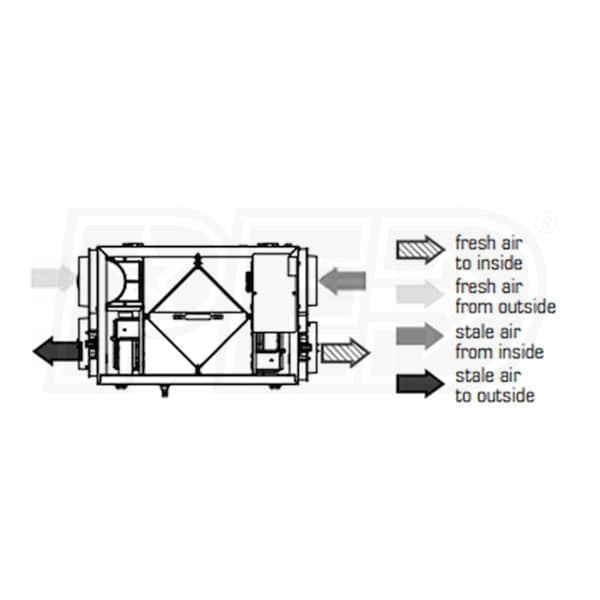

The Fantech SHR200R is a 195 CFM heat recovery ventilator (HRV) with side ports and recirculation defrost capabilities. The SHR200R is a 120-volt unit designed with 4 ports and 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The SHR200R features an aluminum core, washable electrostatic filters and internal recirculation defrost.
Specifications
SHR 200R
Overview
Product Category
Heat Recovery Ventilators (HRVs)
UPC
650737992136
General Information
Type
HRV
Product Line
SHR
Product Category
Heat Recovery Ventilators (HRVs)
Defrost Type
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Port Location
Side
Performance
Maximum Air Flow
222 CFM
Apparent Sensible Effectiveness
68 %
Minimum Air Flow
104 CFM
Sensible Recovery Efficiency
62 %
Electrical Data
Voltage
120 Volts
Power Consumption
240 Watts
Phase
1
Frequency
60 Hz
Current Draw
2.3 Amps
Dimensions
Duct Connection
6 Inches
Product Height
28 Inches
Product Width
20 1/2 Inches
Product Depth
17 1/4 Inches
Product Weight
61.7 Pounds
Shipping Height
26 Inches
Shipping Width
18 Inches
Shipping Length
34 Inches
Shipping Weight
62 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
HVI Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
