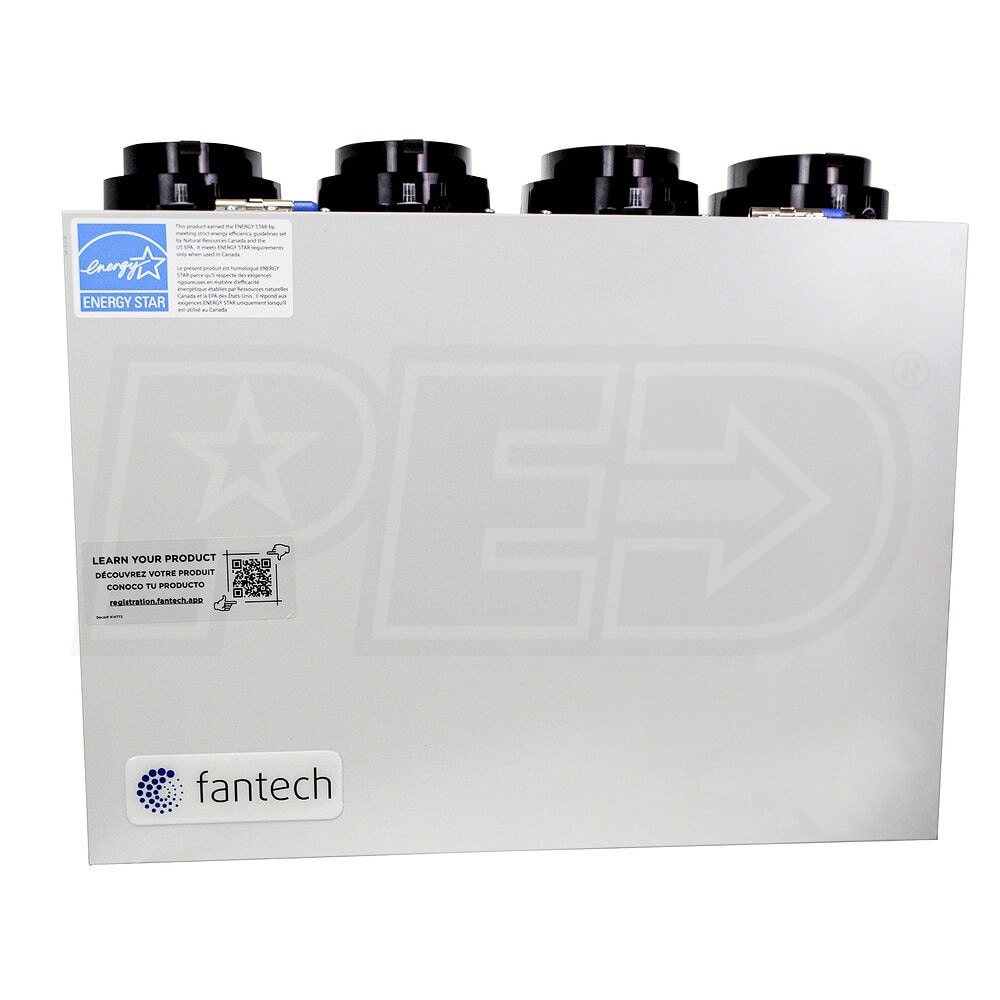

Fantech VHR - 70 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 5" Duct - Recirculation Defrost
Model:
VHR70R-ES
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Heat Recovery Core
- An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
- Winter Guard
- A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
- Controls
- An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
- Washable Electrostatic Filters
- Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
- Product Includes
- VHR70R-ES Heat Recovery Ventilator (HRV)
- Mounting Bracket
The Fantech VHR70R-ES Heat Recovery Ventilator (HRV) is a 81 CFM heat recovery ventilator with top ports defrost capabilities. The VHR70R-ES is a 120 volt unit designed with 4 ports with 5" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size makes this HRV easy to mount. The VHR70R-ES Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters and internal recirculation defrost.
Specifications
VHR70R-ES
Overview
Product Category
Heat Recovery Ventilators (HRVs)
UPC
650737632656
General Information
Type
HRV
Product Line
VHR
Product Category
Heat Recovery Ventilators (HRVs)
Defrost Type
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Ports Quantity
4
Port Location
Top
Performance
Maximum Air Flow
89 CFM
Apparent Sensible Effectiveness
70 %
Minimum Air Flow
51 CFM
Sensible Recovery Efficiency
63 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
5 Inches
Product Height
17 3/16 Inches
Product Width
22 1/2 Inches
Product Depth
10 5/24 Inches
Product Weight
30.9 Pounds
Shipping Width
13 Inches
Shipping Height
21 Inches
Shipping Depth
24 Inches
Shipping Weight
32 Pounds
Certifications
CSA Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
