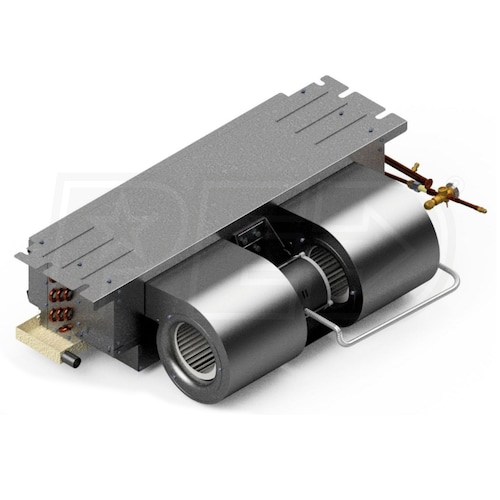

First Company - HX Series - 2 Ton - Horizontal Fan Coil - 5kW Heat - Uncased
Model:
24HX5
+
Share This Product
Features
- First Company HX Series Features
- Horizontal Recessed
- Space Saving
- Include 240/24V Transformer
- Insulated and Coated Galvanized Steel Sloped Drain Pan
- Copper Tube and Aluminum Fin Heating and Cooling Coils
- Prewired
Started in 1966, First Company has built and delivered over 5.5 million products to the HVAC industry. With a reputation of being a leader, innovator and trusted supplier, First Company continues to be an independent source of unique fan coils in a rapidly growing HVAC industry. The First Company HX fan coils are space saving at only 11" with enclosure. This design saves valuable floor space and eliminates the need for equipment closets. Completely pre-wired, the HX fan coils include a 240/24 volt transformer as well as a sloped drain pan.
Product Note
BTU heating ratings are rated at 240V. For 208V, derate heating capacity by 25%.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
24HX5
Overview
Product Category
Hydronic Air Handler
General Information
Type
Fan Coil
Product Line
HX Series
Product Category
Air Handler
Refrigerant Type
R410A
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Electric Heat
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Heating BTU
17000
Electric Heat Capacity
5 kW
Minimum Air Flow
800 CFM
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
22.8 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Product Height
10 Inches
Product Width
37 1/4 Inches
Product Depth
21 Inches
Shipping Weight
63 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
