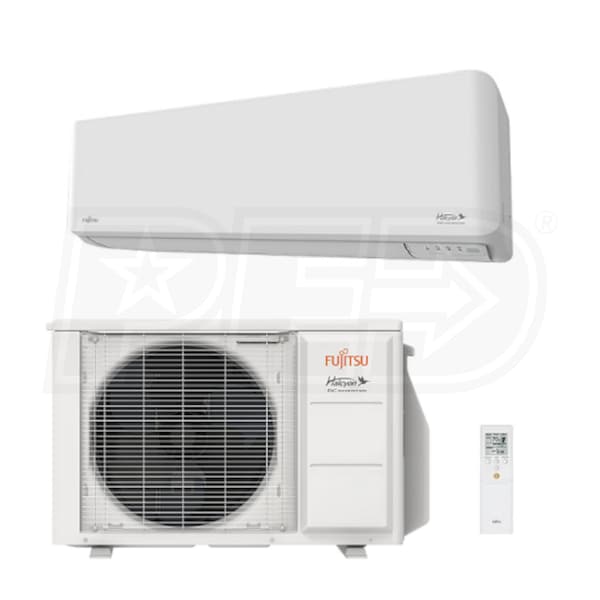

Fujitsu - 9k BTU Cooling + Heating - LMAS Wall Mounted Air Conditioning System - 26.5 SEER2
Model:
09LMAS1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Inverter Technology
- The AOUG09LMAS1 outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change. This enables the system to maintain a more stable temperature.
- Advanced Filtration
- The ASUG09LMAS unit has two filters for keeping your home, or business, safe and clean. An ion deodorizing filter uses fine ceramic particles to capture and remove odors and an apple catechin filter isolates and deactivates mold, bacteria, and dust.
- Timer Function
- With this indoor unit, you can set a sleep timer to gradually decrease the heating or cooling output after you have gone to bed. It also supports a 24 hour timer, allowing designation of an activation and deactivation time once per day.
- Dehumidify and Cool
- Dry Mode demonstrates the ASUG09LMAS wall mounted unit's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
- Airflow Control
- The airflow direction of this indoor unit may be set to swing automatically between its six vertical positions. This disperses the hot or cold air evenly across your zone, resulting in consistent and thorough heating and cooling.
- Quiet Operating Mode
- The ASUG09LMAS wall mounted unit may be set in a quiet operating mode. This operating mode limits airflow slightly to reduce fan noise from the unit, allowing you to enjoy supremely quiet comfort.
- Economy Mode
- The 09LMAS1 system features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
- Power Diffuser
- This wall-mounted unit has an additional vertical airflow louver known as a power diffuser that directs heated air to the floor of the room and cold air outwards to blanket the room.
- (1) Fujitsu - 9k BTU - LMAS1 Outdoor Condenser - Single Zone Only (AOUG09LMAS1)

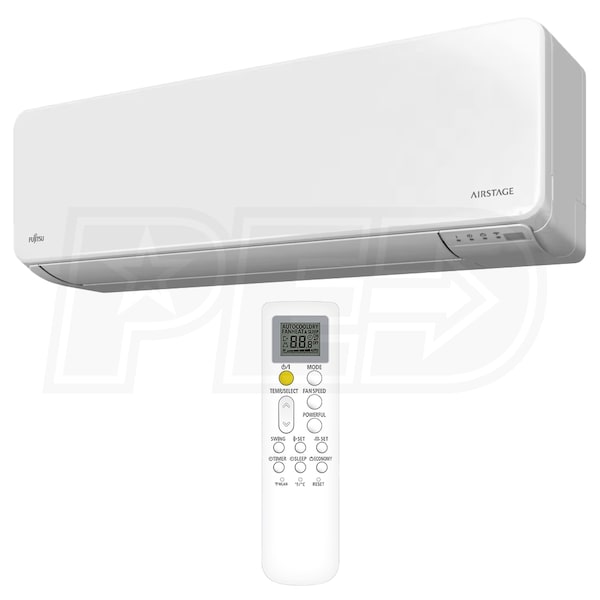

- (1) Fujitsu - 9k BTU - Compact Wall Mounted Unit - Single Zone Only (ASUG09LMAS)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the LMAS wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the LMAS mini split system is a reliable and efficient choice. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu LMAS is a powerful, versatile addition to any home or business.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Fujitsu - 9k BTU - LMAS1 Outdoor Condenser - Single Zone Only (AOUG09LMAS1)
- (1) Fujitsu - 9k BTU - Compact Wall Mounted Unit - Single Zone Only (ASUG09LMAS)
09LMAS1
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
Airstage LMAS
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
12000 BTU
Minimum Operating Temperature
5 F
Maximum Operating Temperature
14 F
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
26.5
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
14.3
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
11.5
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9.7 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
90 Pounds
Shipping Weight
104 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
204752937
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Limited Years
AOUG09LMAS1
General Information
Type
Outdoor Condenser
Product Line
LMAS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
9000 BTU
Performance
Cooling BTU
9000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/16 Inches
Product Width
31 7/16 Inches
Product Depth
11 7/16 Inches
Product Weight
68 Pounds
Shipping Width
37 Inches
Shipping Height
23 11/16 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
75 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
204752937
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASUG09LMAS
General Information
Type
Wall Mounted
Product Line
LMAS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Outdoor Unit Size
9000 BTU
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
542 CFM
Minimum Air Flow
206 CFM
Minimum Sound Level
19 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 5/8 Inches
Product Width
32 13/16 Inches
Product Depth
8 3/4 Inches
Product Weight
22 Pounds
Shipping Height
10 7/8 Inches
Shipping Width
36 Inches
Shipping Depth
13 1/16 Inches
Shipping Weight
29 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
