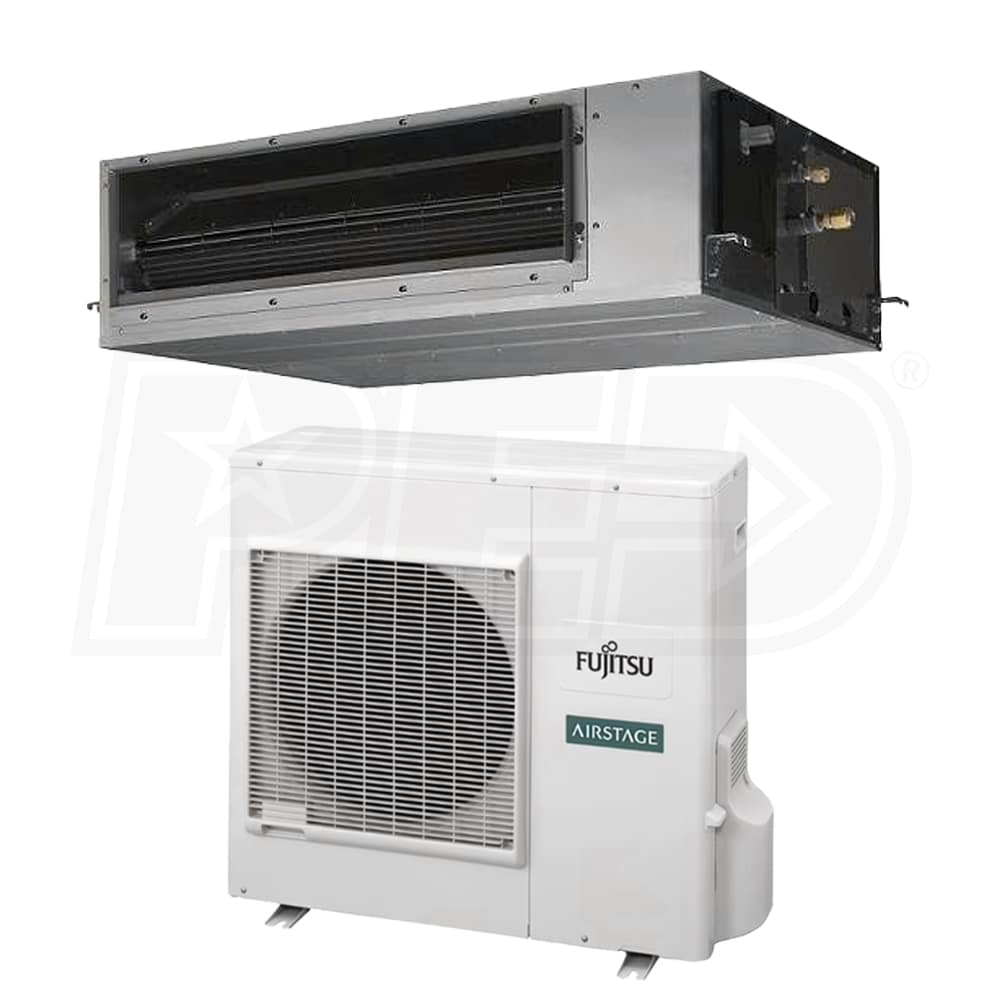

Fujitsu - 18k BTU Cooling + Heating - Slim Concealed Duct Air Conditioning System - 16.7 SEER2
Model:
18RGLXD
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Inverter Technology
- The AOU18RGLX outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
- Low Ambient Heating
- Fujitsu's low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as -5 degrees Fahrenheit. The ARU18RGLX can operate in heating mode in conditions as low as -5 degrees Fahrenheit.
- (1) Fujitsu - 18k BTU - RGLX Outdoor Condenser - Single Zone Only (AOU18RGLX)
- (1) Fujitsu 18k Mid Static Concealed Duct - Single Zone Only (ARU18RGLX)
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 18RGLXD concealed duct mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 18RGLXD mini split system is a reliable and efficient choice. The concealed duct indoor unit installs easily in ductwork, where it can provide comfort without disrupting the design of your room. The Fujitsu 18RGLXD is a low-profile addition to any home or business.
Product Includes
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Fujitsu - 18k BTU - RGLX Outdoor Condenser - Single Zone Only (AOU18RGLX)
- (1) Fujitsu 18k Mid Static Concealed Duct - Single Zone Only (ARU18RGLX)
18RGLXD
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Concealed Duct
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Outdoor Unit Size
18000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Heating Capacity
21000 BTU
Maximum Air Flow
618 CFM
Minimum Air Flow
371 CFM
Minimum Operating Temperature
-5 F
Minimum Sound Level
24 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
-5 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
16.7
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.9
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.3
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
18.3 Amps
Recommended Breaker Size
20 Amps
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Weight
227 Pounds
Shipping Weight
262 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202534923
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
AOU18RGLX
General Information
Type
Outdoor Condenser
Product Line
Airstage RGLX
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Performance
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
22
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
13.4
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
10.5
Overview
Product Category
Mini Split System Components
ARU18RGLX
General Information
Type
Concealed Duct
Product Line
Halcyon
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18000
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
618 CFM
Minimum Air Flow
371 CFM
Minimum Sound Level
24 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
