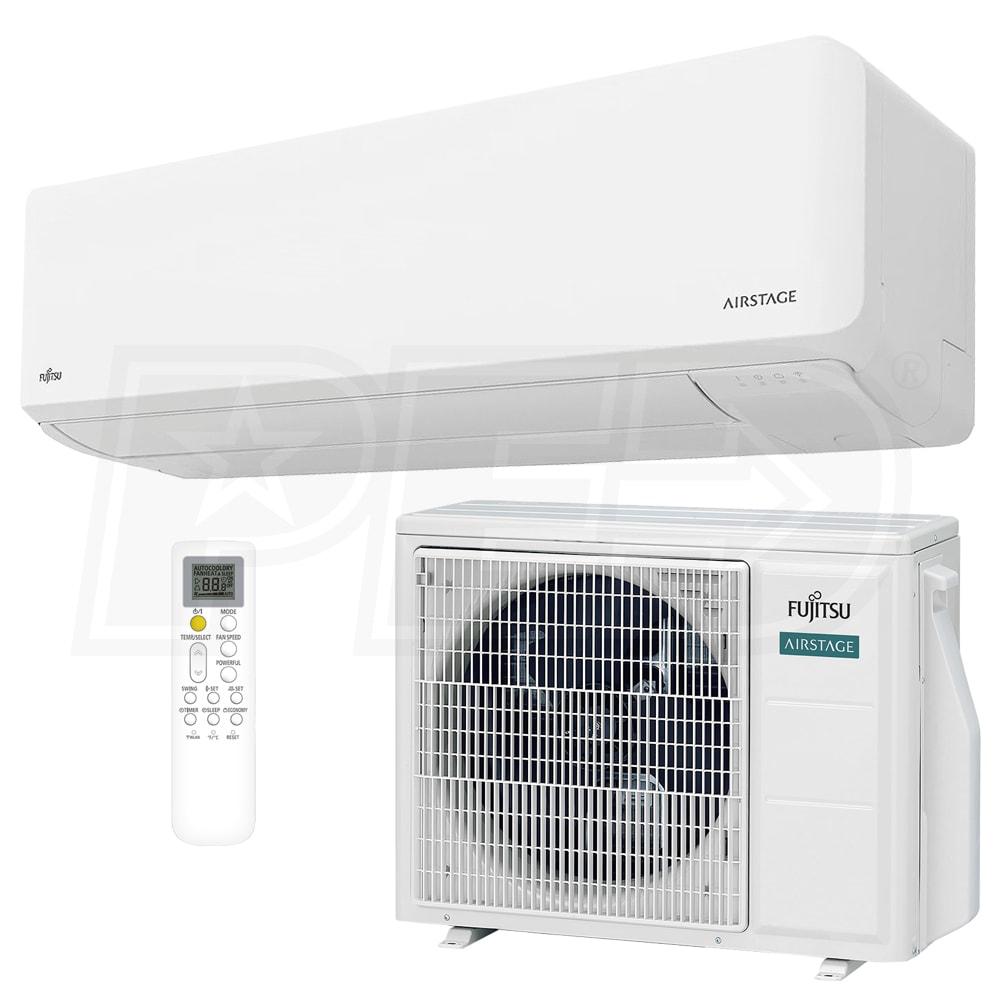

Fujitsu - 24k BTU Cooling + Heating - LPAS Wall Mounted Air Conditioning System - 19.0 SEER2
Model:
24LPAS1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Auto Changeover
- The air conditioner switches between the cooling and heating modes automatically according to the set temperature and the room temperature.
- Weekly & 24 hr. Timer
- You can choose any day between Monday and Sunday, and can be set up to four ON Timers or OFF Timers in one day.
- Auto Louver
- Redirects airflow automatically with up/down and left/right motion.
- Minimum Heat Mode
- The room temperature can be maintained at 50 degrees fahrenheit so as to prevent the room temperature from falling too far.
- Auto Restart
- The air conditioner will then restart automatically in its previous mode when the power is restored.
- Economy Mode
- Economy operation mode allows you to save more energy by setting the room temperature to be little higher than the set-temp under cooling mode and lower than set-temp under heating mode.
- Energy Saving Program (ESP)
- With the ESP function, the system actively monitors occupancy and adjusts system settings accordingly to achieve optimum energy savings.
- Wireless Remote control
- The Wireless Remote Controller allows convenient control of indoor unit operation.
- Outdoor Unit Low Noise Schedule
- Limits compressor and fan speed during high speed operation for noise reduction purposes. It is effective when the surrounding area is quiet, such as in the night.
- (1) Fujitsu - 24k BTU - LPAS1 Outdoor Condenser - Single Zone Only (AOUH24LPAS1)
- (1) Fujitsu - 24k BTU - Wall Mounted Unit - For Multi or Single-Zone (ASUH24LPAS)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the LPAS wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the LPAS mini split system is a reliable and efficient choice. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu LPAS is a powerful, versatile addition to any home or business.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Fujitsu - 24k BTU - LPAS1 Outdoor Condenser - Single Zone Only (AOUH24LPAS1)
- (1) Fujitsu - 24k BTU - Wall Mounted Unit - For Multi or Single-Zone (ASUH24LPAS)
24LPAS1
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
Airstage LPAS
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Outdoor Unit Size
24000 BTU
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
24000 BTU
Minimum Operating Temperature
14 F
Maximum Operating Temperature
115 F
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
19.0
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
9.2
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.8
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17.2 Amps
Recommended Breaker Size
20 Amps
Dimensions
Suction Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Weight
132 Pounds
Shipping Weight
145 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
207131735
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
AOUH24LPAS1
General Information
Type
Outdoor Condenser
Product Line
LPAS1
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
24000 BTU
Performance
Cooling BTU
24000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
24 7/8 Inches
Product Width
31 7/16 Inches
Product Depth
11 7/16 Inches
Product Weight
95 Pounds
Shipping Width
42 7/16 Inches
Shipping Height
12 11/16 Inches
Shipping Depth
13 5/8 Inches
Shipping Weight
104 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASUH24LPAS
General Information
Type
Wall Mounted
Product Line
Airstage LPAS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
642 CFM
Minimum Air Flow
306 CFM
Minimum Sound Level
31 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Voltage
208/227 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 Inches
Product Width
38 9/16 Inches
Product Depth
9 7/16 Inches
Product Weight
37 Pounds
Shipping Height
27 1/4 Inches
Shipping Width
37 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
46 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
