Fujitsu 24RLB
Fujitsu 24RLB
Fujitsu 24RLB
Fujitsu 24RLB
Fujitsu 24RLB
Fujitsu 24RLB
Hover to zoom
1 of 3
Fujitsu 24RLB
Fujitsu 24RLB
Fujitsu 24RLB

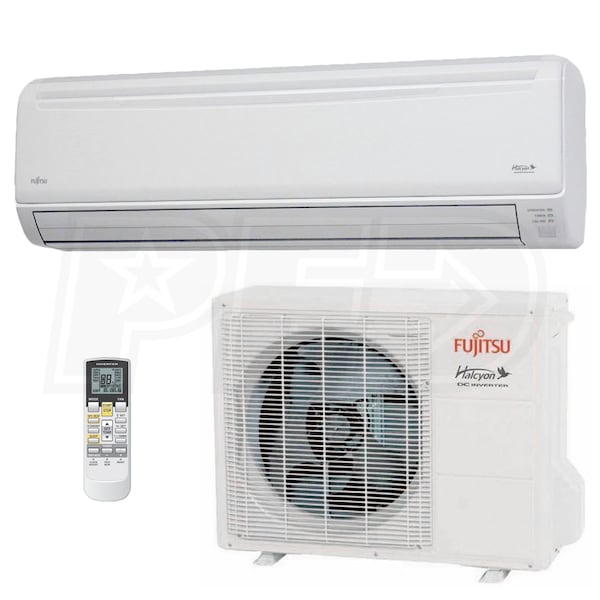

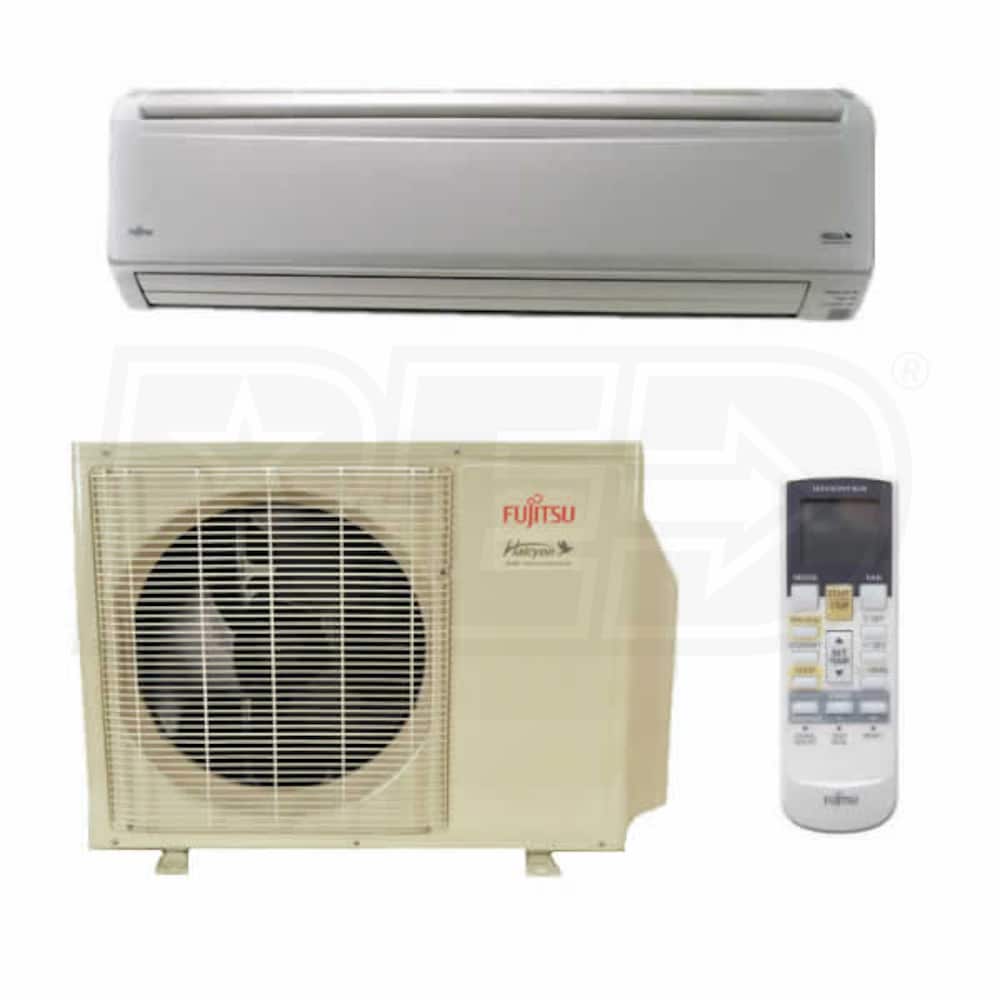

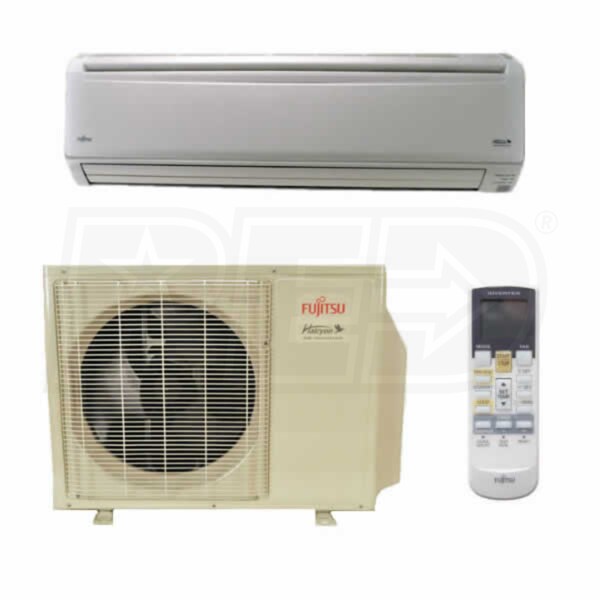

Fujitsu - 24k BTU Cooling + Heating - RLB Wall Mounted Air Conditioning System - 18.0 SEER

Model:

24RLB

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fujitsu - 24k BTU Cooling + Heating - RLB Wall Mounted Air Conditioning System - 18.0 SEER
Fujitsu - 24k BTU Cooling + Heating - RLB Wall Mounted Air Conditioning System - 18.0 SEER
Model: 24RLB
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 3
These accessories are required to properly setup/install this product.
$44.00
In-Stock
Length (ft)
$313.62
In-Stock
Optional Accessories 8
Color
$46.70
In-Stock
$45.00
In-Stock
Length (ft)
$160.00
In-Stock
Color
$137.43
In-Stock
$18.00
In-Stock
$5.30
In-Stock
$86.49
In-Stock

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 24RLB wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 24RLB mini split system is a reliable and efficient choice. This system is designed to provide effective heating and cooling on a budget. The Fujitsu 24RLB is an excellent addition to any home or business.
  • Inverter Technology
  • The 24RLB outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change. This enables the system to maintain a more stable temperature.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a blue fin coating to the heat exchanger of th AOU24RLB. This improves its resistance to many common sources of corrosion and extends the unit's longevity.
  • Advanced Filtration
  • The ASU24RLB has two filters for keeping your home, or business, safe and clean. An ion deodorizing filter uses fine ceramic particles to capture and remove odors and an apple catechin filter isolates and deactivates mold, bacteria, and dust.
  • Timer Function
  • With this unit, you can set a sleep timer to gradually decrease the heating or cooling output after you have gone to bed. This timer allows you to curtail energy use without sacrificing comfort.
  • Airflow Control
  • The airflow direction of this indoor unit may be set to swing automatically between its six vertical positions and five horizontal positions. This disperses the hot or cold air evenly across your zone.
  • Economy Mode
  • The 24RLB system features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
  • Product Includes
    • (1) Fujitsu - 24k BTU - RLB Outdoor Condenser - Single Zone Only (AOU24RLB)
    • (1) Fujitsu 24k BTU Wall Mounted Unit - For Single-Zone (ASU24RLB)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 24k BTU - RLB Outdoor Condenser - Single Zone Only (AOU24RLB)
  • (1) Fujitsu 24k BTU Wall Mounted Unit - For Single-Zone (ASU24RLB)
24RLB
specs product image PID-65517
General Information
Type
Wall Mounted
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
24000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.0
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.6
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
117 Pounds
Shipping Weight
121 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
7940753
AOU24RLB
General Information
Type
Outdoor Condenser
Product Line
RLB
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
24 7/16 Inches
Product Width
31 1/8 Inches
Product Depth
11 7/16 Inches
Product Weight
86 Pounds
Shipping Height
28 1/16 Inches
Shipping Width
37 3/16 Inches
Shipping Depth
15 9/16 Inches
Shipping Weight
93 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASU24RLB
General Information
Type
Wall Mounted
Product Line
RLB
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
659 CFM
Minimum Air Flow
365 CFM
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 5/8 Inches
Product Width
39 5/16 Inches
Product Depth
9 Inches
Product Weight
31 Pounds
Shipping Width
42 15/16 Inches
Shipping Height
12 9/16 Inches
Shipping Depth
16 7/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years

Reviews

(5)
Fujitsu 24RLB Reviews & Ratings
Verified Buyer
Verified Buyer
Great customer service
By John J.
Newport, Minnesota
Purchased 08/11/2020 |
Review Posted 09/02/2020
I was Replacing an existing unit. Your customer service person helped me match the best new unit to utilize my existing line set and electric run.
John J. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the AOU24RLB.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
So Far So Good
By Don B.
Orangevale, California
Purchased 03/28/2020 |
Review Posted 04/21/2020
Have had the unit in use for 2 weeks & so far at this point have been completely pleased with the unit. We are in a moderate climate and at this time of year have not challenged at all, the heating capacity or efficiency. These units operate a little differently that say a natural gas furnace, in that it takes a few minutes for it to cycle up to begin generating heat. Example: at about 42 degrees outside temp, it takes about 15-20 minutes to fully cycle up to fully heat, although it does provide incremental heat in the process. I don't consider this a negative, it's just different than systems I am familiar with.
I have every expectation this unit will function very well for years to come. I researched mini-split units extensively before making this choice.
Don B. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the 18RLB.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Verified Buyer
Verified Buyer
I'd Buy Again
By Carl U.
Iowa
Purchased 06/24/2017 |
Review Posted 07/17/2017
I'm very picky on noise but this unit is quiet. Very happy with that part. The unit doesn't seem to stay on temperature target very well. 2 degrees +- both side of temp setting but I'm still testing to verify that. I'd buy again.

When I tested the amps it showed 4 amps on both sides (220).
Carl U. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the 24RLXFW.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Verified Buyer
Verified Buyer
Great Product.
By Jack W.
John Day, Oregon
Purchased 09/26/2016 |
Review Posted 11/28/2016
This exceeded my expectations and then some.
Jack W. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Quiet, Exceeded Expectations, High Quality, I'd Buy It Again
Cons:
No cons
Verified Buyer
Verified Buyer
Great unit, easy to install
By R.
Oregon
Purchased 09/13/2016 |
Review Posted 10/28/2016
So far this seems like a terrific unit. We bought it primarily for heating. We spoke with a professional local installer who was terrific. They let us do some of the things to save costs. It's really easy if you can drill a hole through your wall. The professionals came before and after to check over what we did and then do the vacuum pumping and a few other things we just weren't sure about. They charged us $360, so we ended up with an installed unit at a fraction of the price as if we'd ordered locally (from the same company, ironically). since it's for heat and it's mounted up high, if you want your room to be 68, you have to set the temperature at 78 (heat rises, so it's hotter up at ceiling).

That's a little weird... but... whatever. I saw online that everyone has the same problem (not just with Fujitsu, it's a physics problem), so I was expecting it. Lots of people ordering these (mostly) for heat mount them lower (like under a window). We didn't do that for aesthetic and space reasons, and I'm glad. I'd do it this way again. It blows pretty hard when it blows, (another reason I wouldn't mount it low down, we have a small house and would have had to keep that area clear) but it's not that loud (this replaced a whole house forced hot air natural gas furnace) and it's a "whoosh" of sound rather than the more deeper... almost hum of the furnace.

So I'm not saying it's "whisper quiet" but it's not intrusive which is a relief. (Noise was our primary reason for buying this thing.) Finally, the other reason we bought this was that it has a narrow profile (doesn't stick out into the room much). Aesthetically my wife and I are both very pleased (and relieved) to see that this blends in REALLY well above the window.

It's like a window treatment (in no small part because of the narrow profile). I'd say that the aesthetics absolutely exceeded our expectations -- as has the heat output (so far, we aren't very deep into winter yet, so we'll see!!) Overall I'm very happy with this. It's only been about 1 month since installation, but so far I'd say "I'd buy it again".
R. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, Light Weight, Fast

How-To Articles

How to Pick the Perfect Mini Split Wall Mounted Indoor Unit
How to Pick the Perfect Mini Split Wall Mounted Indoor Unit
Wall-mounted units are the most commonly found, most affordable option for indo...
What You Should Know About Mini-Split Wiring
What You Should Know About Mini-Split Wiring
Although they are easier to install than central air conditioning systems, mini...
How to Pick the Perfect Mitsubishi Mini-Split Condenser
How to Pick the Perfect Mitsubishi Mini-Split Condenser
If you're struggling to keep your home or office comfortable, you are not alone...
eComfort How-To Library
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Fujitsu - 24k BTU Cooling + Heating - RLB Wall Mounted Air Conditioning System - 18.0 SEER
Fujitsu 24RLB
Fujitsu 24RLB
Fujitsu 24RLB
Fujitsu 24RLB
Customer Review Images
