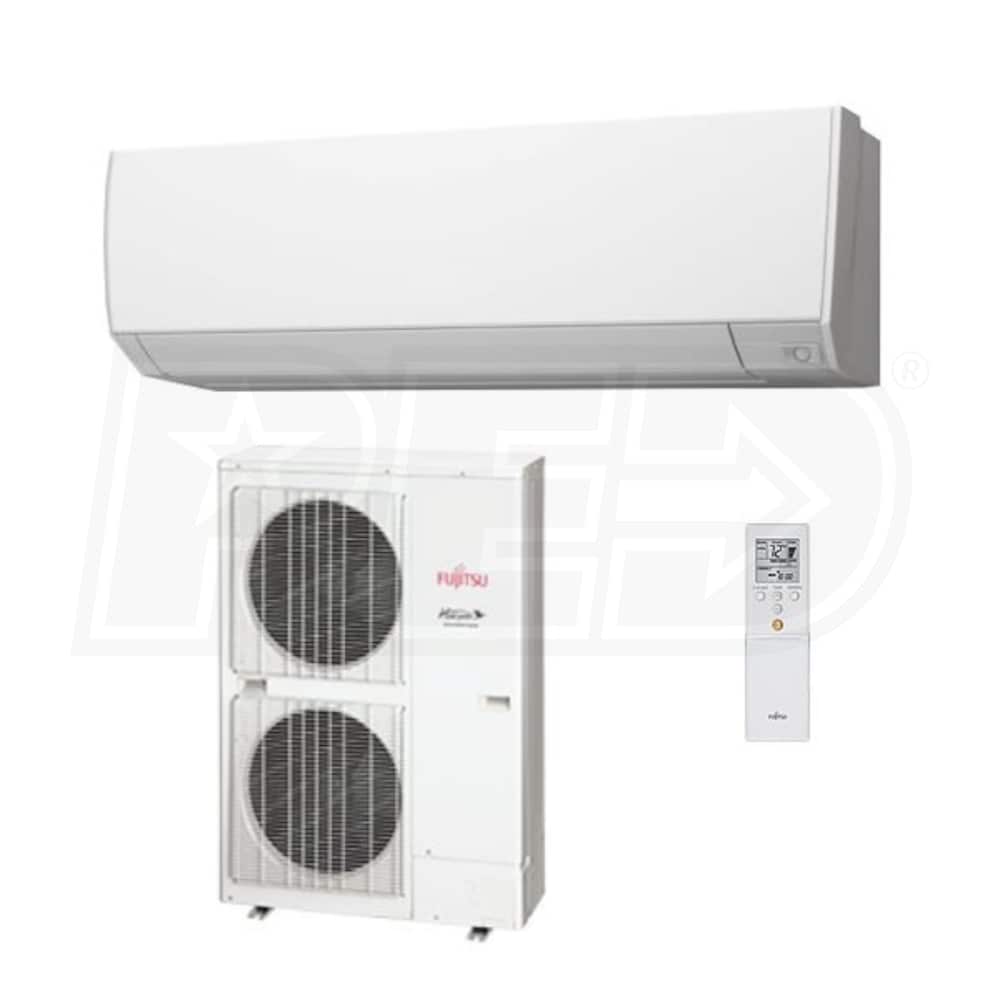

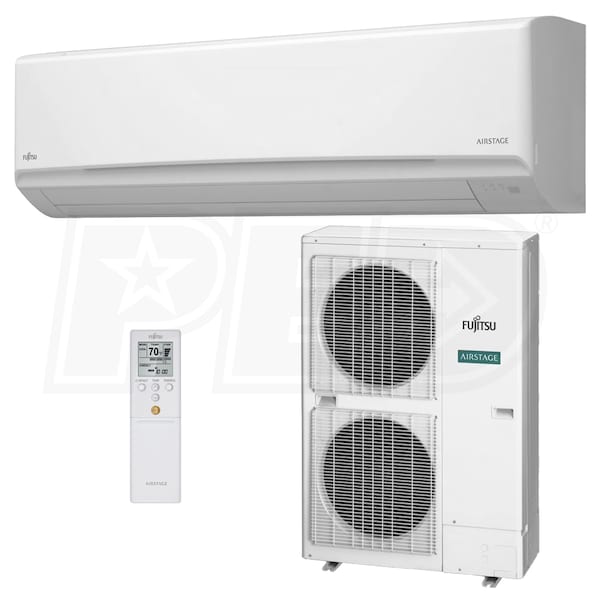

Fujitsu - 30k BTU Cooling + Heating - RLXEH Wall Mounted Air Conditioning System - 18.7 SEER2
Model:
30RLXEH
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Server Room Mode
- Two 30RLEXH systems can be paired together using Server Room Mode to generate cool air 24 hours a day. The pair can operate in three different modes: Alternating Operation, Backup Operation, or Supporting Operation.
- Inverter Technology
- The AOU30RLXEH outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change. This enables the system to maintain a more stable temperature.
- Extended Line Set
- The 30RLXEH features a maximum line set length of 246 feet and a maximum height difference of 98 feet, providing more installation flexibility and increased applications.
- Low Ambient Heating
- Fujitsu's extra low temperature heating technology allows this condenser to safely maintain operation in outdoor temperatures as low as -15° F. The XLTH outdoor condensers also include a base pan heater to prevent freezing damage.
- Corrosion Resistant Heat Exchanger
- Fujitsu applies a blue fin coating to the heat exchanger of the outdoor condenser. This improves its resistance to many common sources of corrosion and extends the unit's longevity.
- Advanced Filtration
- The indoor unit features two filters for keeping your home, or business, safe and clean. An ion deodorizing filter uses fine ceramic particles to capture and remove odors and an apple catechin filter isolates and deactivates mold, bacteria, and dust.
- Timer Function
- This system offers seven day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home.
- Economy Mode
- The 30RLXEH system features an Economy Mode that restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
- (1) Fujitsu - 30K BTU - RLXEH Outdoor Condenser - Single Zone Only (AOU30RLXEH)
- (1) Fujitsu - 30K BTU - Wall Mounted Indoor Unit - Single Zone Only (ASU30RLE)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 30RLXEH wall mounted mini split system. The 30RLXEH is ideal for applications where constant cool temperatures are required year-round, such as server rooms or large meeting spaces. The system features low ambient heating technology that allows it to maintain operations in subzero Fahrenheit temperatures. The indoor unit has a sleek, modern design with 4-way airflow to effectively warm or cool the entire room. This system has an array of effective operating modes that allow you to customize operations to suit your comfort.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Fujitsu - 30K BTU - RLXEH Outdoor Condenser - Single Zone Only (AOU30RLXEH)
- (1) Fujitsu - 30K BTU - Wall Mounted Indoor Unit - Single Zone Only (ASU30RLE)
30RLXEH
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
Airstage RLXEH
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Base Pan Heater Included
Yes
Outdoor Unit Size
30000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating Capacity
30000 BTU
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-15 F
Minimum Outdoor Temperature for Cooling
-5 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
18.7
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
12.5
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
10.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
245 Pounds
Shipping Weight
249 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
8912454
AOU30RLXEH
General Information
Type
Outdoor Condenser
Product Line
Halcyon HFI XLTH
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Base Pan Heater Included
Yes
Outdoor Unit Size
30000 BTU
Performance
Cooling BTU
30000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-15 F
Minimum Outdoor Temperature for Cooling
-5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
246 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
50 13/16 Inches
Product Width
35 3/8 Inches
Product Depth
13 Inches
Product Weight
205 Pounds
Shipping Width
37 Inches
Shipping Height
55 Inches
Shipping Depth
15 Inches
Shipping Weight
210 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8912454
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASU30RLE
General Information
Type
Wall Mounted
Product Line
Halcyon HFI XLTH
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Outdoor Unit Size
30000 BTU
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Air Flow
812 CFM
Minimum Air Flow
418 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
50 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
13 3/8 Inches
Product Width
45 1/4 Inches
Product Depth
9 Inches
Product Weight
40 Pounds
Shipping Width
46 Inches
Shipping Height
14 Inches
Shipping Depth
12 Inches
Shipping Weight
42 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8912454
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
