Features
- Inverter Technology
- The AOU12RL2 outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
- Corrosion Resistant Heat Exchanger
- Fujitsu applies a blue fin coating to the heat exchanger of the outdoor condenser. This improves its resistance to many common sources of corrosion and extends the unit's longevity.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser. The bracket is a simple and sturdy way to mount your outdoor condenser off of the ground. Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. This unit has an array of effective operating modes that allow you to customize operations to suit your comfort, making it an intelligent addition to any home or business.
Product Note
This product requires a compatible Fujitsu mini split indoor unit and the following accessories for indoor unit installation:
Fujitsu provides a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at fujitsugeneral.com/us/support/downloads/halcyon/warranty.html.
Fujitsu provides a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at fujitsugeneral.com/us/support/downloads/halcyon/warranty.html.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
AOU12RL2
Overview
Product Category
Mini Split System Components
General Information
Type
Outdoor Condenser
Product Line
Airstage RL2
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
12000 BTU
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
15 F
Minimum Outdoor Temperature for Cooling
15 F
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 1/4 Inches
Product Width
26 Inches
Product Depth
11 17/48 Inches
Product Weight
69 Pounds
Shipping Width
31 3/8 Inches
Shipping Height
24 1/16 Inches
Shipping Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Limited Years
Reviews
(14)
Fujitsu AOU12RL2 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
How to Pick the Perfect Mini Split Suspended Indoor Unit
A ceiling-suspended mini split is the perfect ductless solution for large open ...
eComfort Boosts Comfort and Energy Savings at Historic Home
Owning a historic home can be very rewarding. But those rewards come with respo...
How to Pick the Perfect Mini Split Ceiling Cassette Unit
Many of us like it when our heating and cooling equipment is out of sight and o...
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

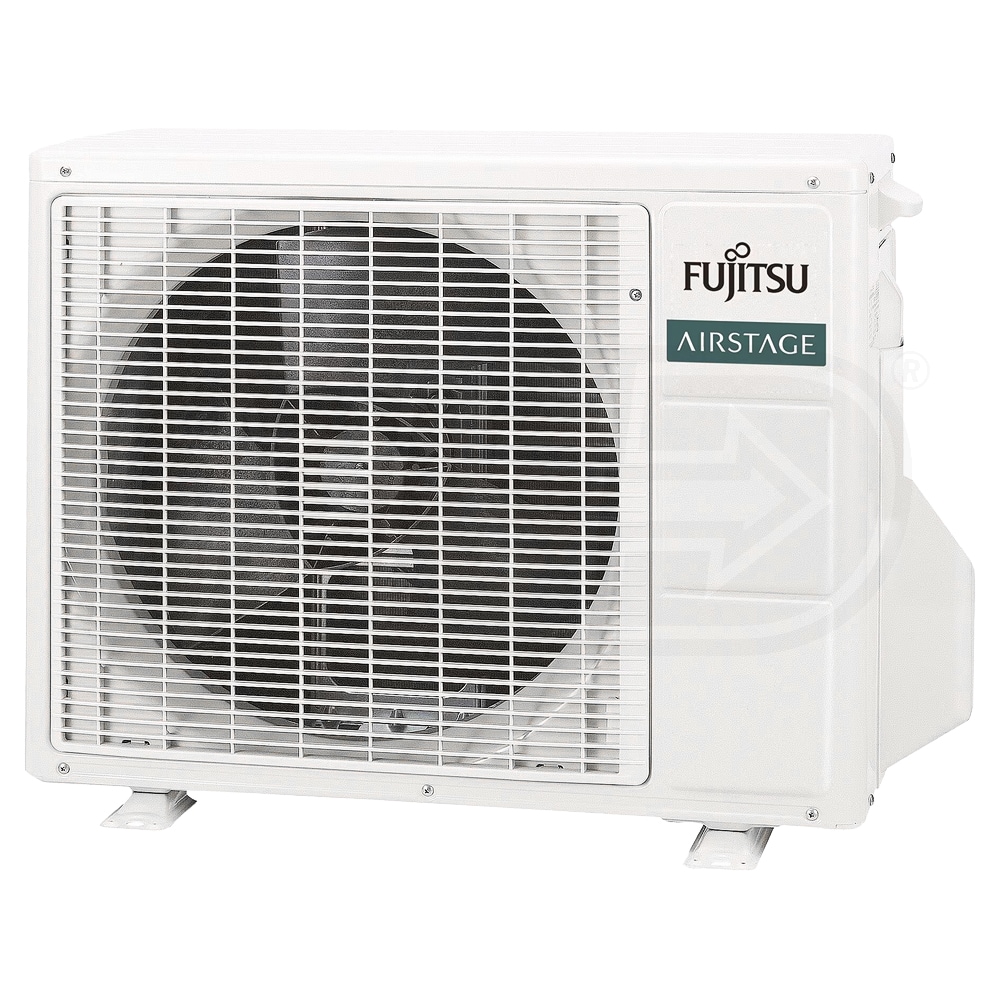

Fujitsu - 12k BTU - RL2 Outdoor Condenser - Single Zone Only
