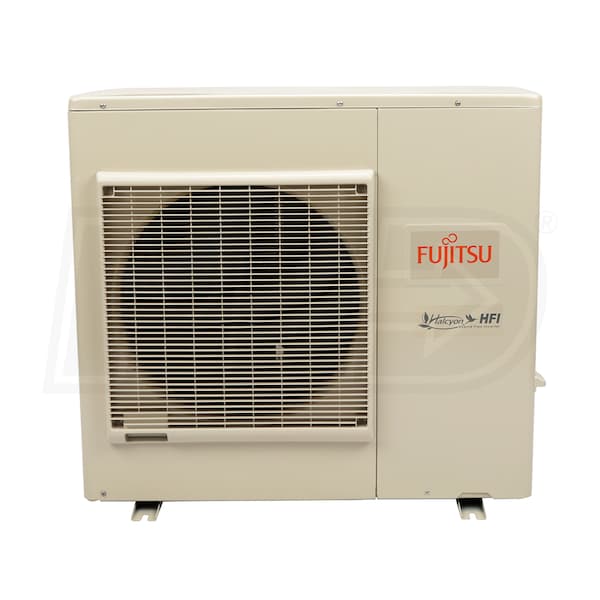

Fujitsu - 36k BTU - RLXFZ1 Outdoor Condenser - For 2-4 Zones

Model:

AOU36RLXFZ1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fujitsu - 36k BTU - RLXFZ1 Outdoor Condenser - For 2-4 Zones
Fujitsu - 36k BTU - RLXFZ1 Outdoor Condenser - For 2-4 Zones
Model: AOU36RLXFZ1
Was $3,133.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the AOU36RLXFZ1 mini split outdoor condenser. This Halcyon HFI Multi Series mini split outdoor condenser is easy to install and capable of providing power and refrigerant flow for two to four indoor units. Fujitsu multi-zone mini split systems are cost-effective and customizable. The AOU36RLXFZ1 supports wall mounted, compact ceiling cassette, floor mounted, and concealed duct units, making it simple for you to design a system that fits your application perfectly.
  • Inverter Technology
  • Inverter technology drives the compressor, allowing it to match output to demand. The result: a more stable and comfortable temperature within the space. This type of operation removes more moisture, reduces short-cycling, and improves efficiency.
  • Increased Connectable Capacity
  • Connect indoor units with as much as 130% of the outdoor unit capacity, allowing design flexibilty. If all zones are active, indoor units will run at reduced output. As zones are satisfied, output will be redistributed zones that are still active.
  • Simple Installation Process
  • This outdoor condenser does not require branch boxes or separation tube assemblies. All indoor units connect directly to ports on the condenser, streamlining the installation process to save you time and money.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a blue fin coating to the heat exchanger of their multi-zone outdoor condensers. This improves their resistance to many common sources of corrosion and extends their longevity.
  • Product Note
    This product requires two or more compatible Fujitsu mini split indoor units and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

AOU36RLXFZ1
specs product image PID-50256
Overview
Product Category
Mini Split System Components
General Information
Type
Outdoor Condenser
Product Line
Airstage HFI RLXFZ
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
1/2 Inch
Product Height
32 11/16 Inches
Product Width
35 7/16 Inches
Product Depth
13 Inches
Product Weight
149 Pounds
Shipping Height
38 3/16 Inches
Shipping Width
41 5/16 Inches
Shipping Depth
17 1/2 Inches
Shipping Weight
165 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
