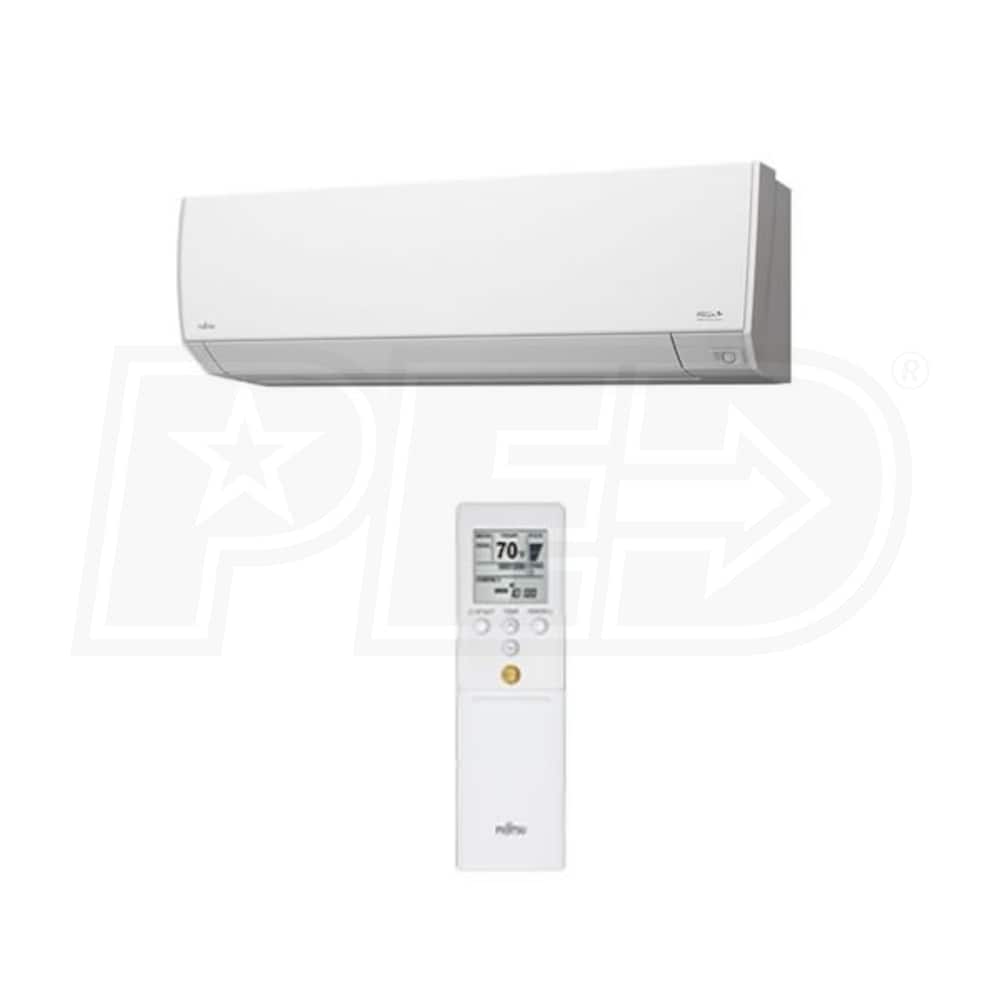

Fujitsu ASU12RLS3Y
Fujitsu ASU12RLS3Y
Hover to zoom
1 of 1

Fujitsu Designer 12k BTU Wall Mounted Unit - For Single-Zone

Model:

ASU12RLS3Y

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Fujitsu Designer 12k BTU Wall Mounted Unit - For Single-Zone
Fujitsu Designer 12k BTU Wall Mounted Unit - For Single-Zone
Model: ASU12RLS3Y
Not For Individual Sale
Features
Specifications
Reviews
How-To Articles

Features

    Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center for alternate options.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

ASU12RLS3Y
specs product image PID-72505
General Information
Type
Wall Mounted
Product Line
RLS3Y
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
489 CFM
Minimum Air Flow
224 CFM
Minimum Sound Level
23 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
37 Inches
Product Depth
10 5/8 Inches
Product Weight
31 Pounds
Shipping Height
14 3/8 Inches
Shipping Width
40 15/16 Inches
Shipping Depth
14 Inches
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years

Reviews

(3)
Fujitsu ASU12RLS3Y Reviews & Ratings
Verified Buyer
Verified Buyer
works great
By Mickey D.
Las Vegas, Nevada
Purchased 07/27/2018 |
Review Posted 09/08/2018
works great second one 9000 and 12000 btu
Mickey D. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Quiet, High Quality
Cons:
Expensive
Verified Buyer
Verified Buyer
works great. super quiet
By Cindy J
Kansas City, Missouri
Purchased 05/27/2018 |
Review Posted 08/14/2018
Great experience. Fairly easy install. Works great and super quiet.
Cindy J Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the ASU9RLF1.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Works great. Very quiet and comfortable
By Cindy J
Kansas City, Missouri
Purchased 05/27/2018 |
Review Posted 08/14/2018
Great experience. Fairly easy install. Works great and super quiet.
Cindy J Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the ASU18RLF.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
