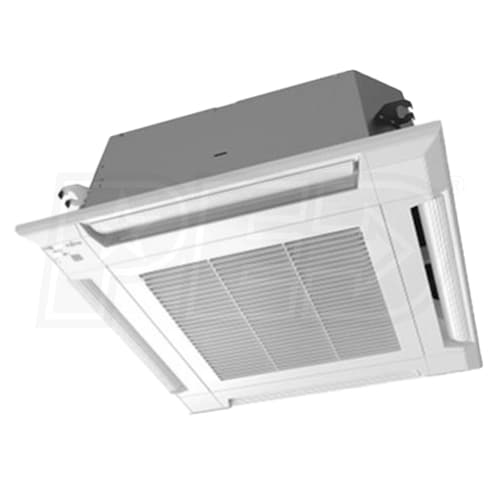

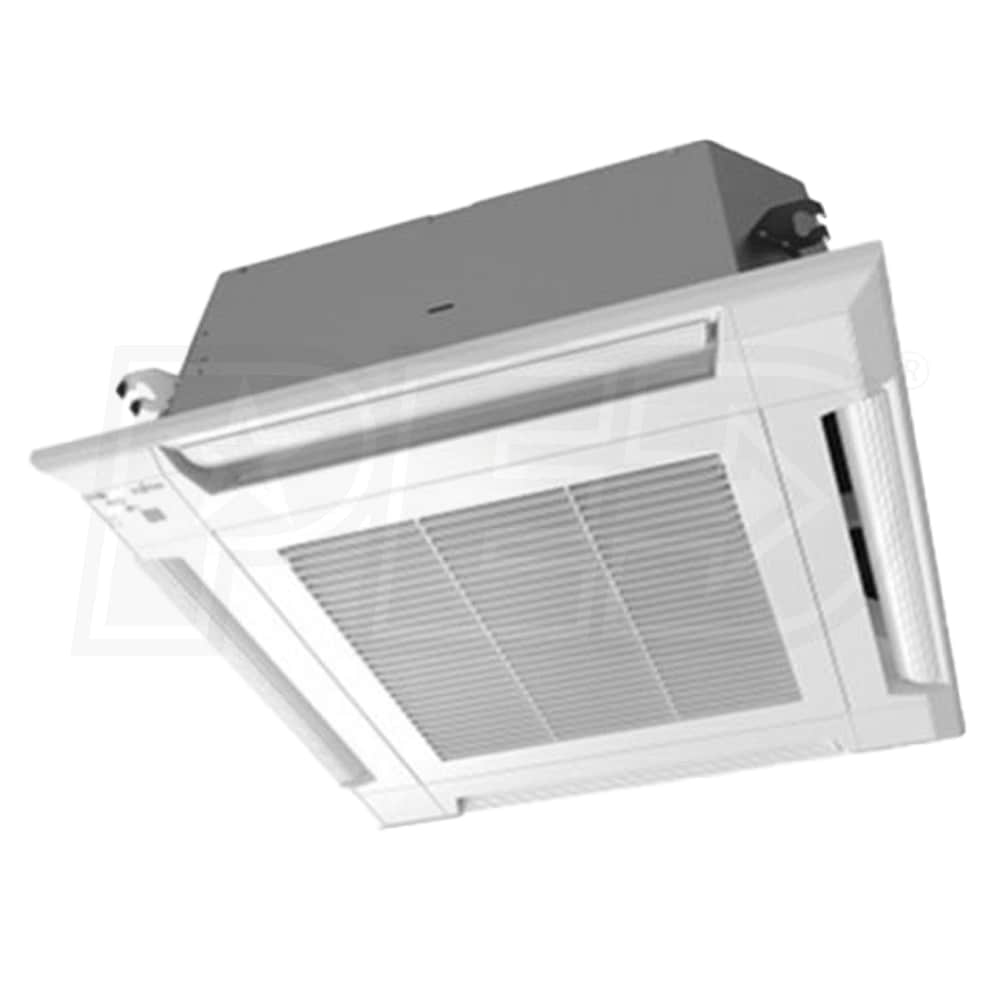

Fujitsu - 12k BTU - Ceiling Cassette with Grille - For Multi or Single-Zone

Model:

AUU12RLF

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Fujitsu - 12k BTU - Ceiling Cassette with Grille - For Multi or Single-Zone
Fujitsu - 12k BTU - Ceiling Cassette with Grille - For Multi or Single-Zone
Model: AUU12RLF
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the AUU12RLF wall mounted designer mini split indoor unit. This mini split indoor unit has a sleek, modern design, and a front panel that slides upwards to maintain its slim profile. The AUU12RLF is capable of cooling, drying, and heating operations, none of which will disrupt your home thanks to the low operating sound levels. Between the advanced filtration technology and the additional operating modes, the AUU12RLF is a choice that promotes health and comfort year round.
  • Quiet Operating Mode
  • The AUU12RLF may be set in a quiet operating mode. This operating mode limits airflow slightly to reduce fan noise from the unit, allowing you to enjoy supremely quiet comfort.
  • Intelligent Temperature Calculation
  • Rooms with raised ceilings heat differently than traditionally sized rooms. The AUU12RLF can be set to account for ceiling height when making temperature calculations. This keeps you comfortable, even in rooms with unconventional heating patterns.
  • Condensate Protection
  • There is a condensate pump in the AUU12RLF. This pump removes condensation build up from your system, protecting it from potential damage and keeping it running efficiently.
  • Two-Stage Turbo Fan
  • Fujitsu employs a two-stage turbo fan to optimize the distribution of air over this unit's heat exchanger. By employing two separate currents of air, the turbo fan ensures even temperatures and improves both efficiency and comfort.

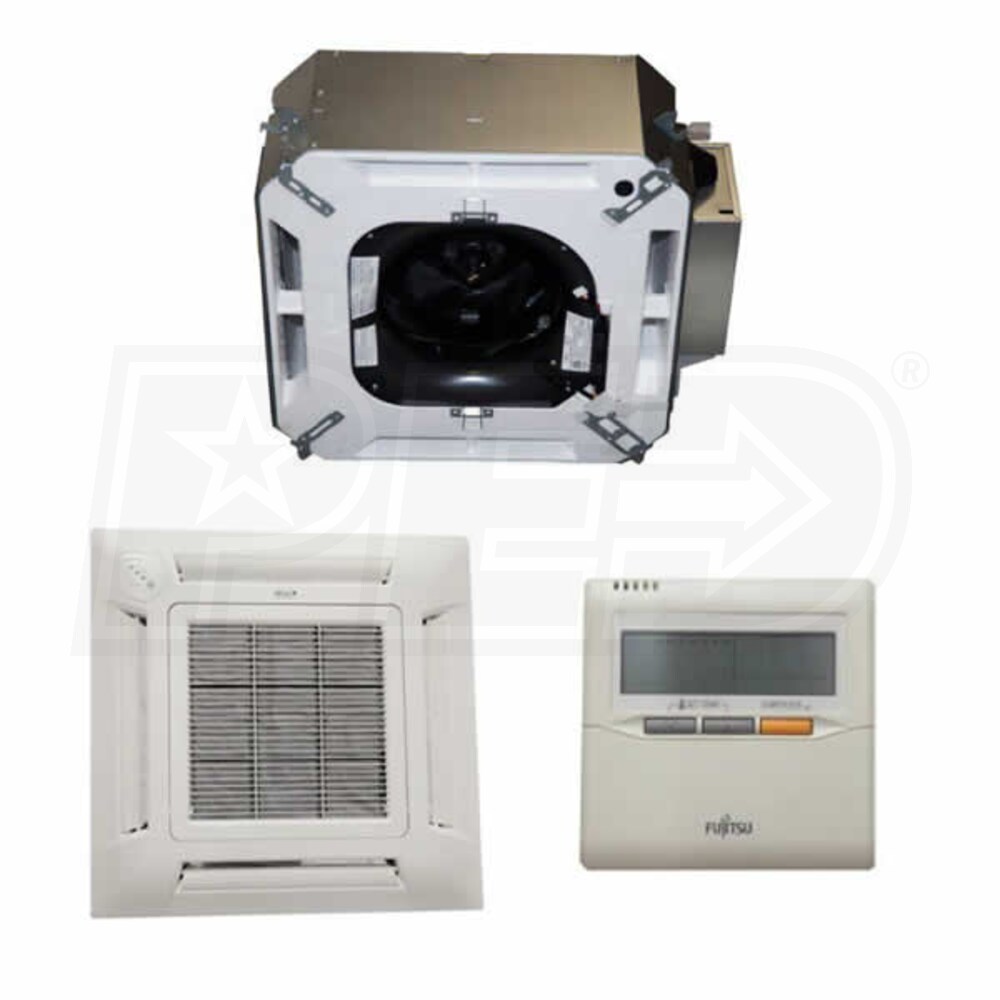

  • Product Includes
    • (1) Fujitsu - 12k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH12LUAS1-NG)
    • (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
    Product Note
    This product requires a compatible Fujitsu mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 12k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH12LUAS1-NG)
  • (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
AUU12RLF
specs product image PID-68593
Overview
Product Category
Mini Split System Components
General Information
Type
Ceiling Cassette
Product Line
Halcyon HFI
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Outdoor Unit Size
12000 BTU
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
359 CFM
Minimum Air Flow
241 CFM
Minimum Sound Level
28 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
27 9/16 Inches
Product Width
27 9/16 Inches
Product Depth
11 29/48 Inches
Product Weight
38.7 Pounds
Shipping Height
30 1/8 Inches
Shipping Width
29 35/48 Inches
Shipping Depth
15 2/12 Inches
Shipping Weight
50 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
ACUH12LUAS1-NG
General Information
Type
Ceiling Cassette
Product Line
Airstage LUAS
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12000
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
359 CFM
Minimum Air Flow
241 CFM
Minimum Sound Level
28 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 3/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Width
28 3/4 Inches
Shipping Height
10 7/16 Inches
Shipping Depth
24 5/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
UTG-CCGFGA
General Information
Type
Grille
Product Line
Halcyon
Product Category
Mini Split System Components
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Overview
Product Category
Mini Split System Components
