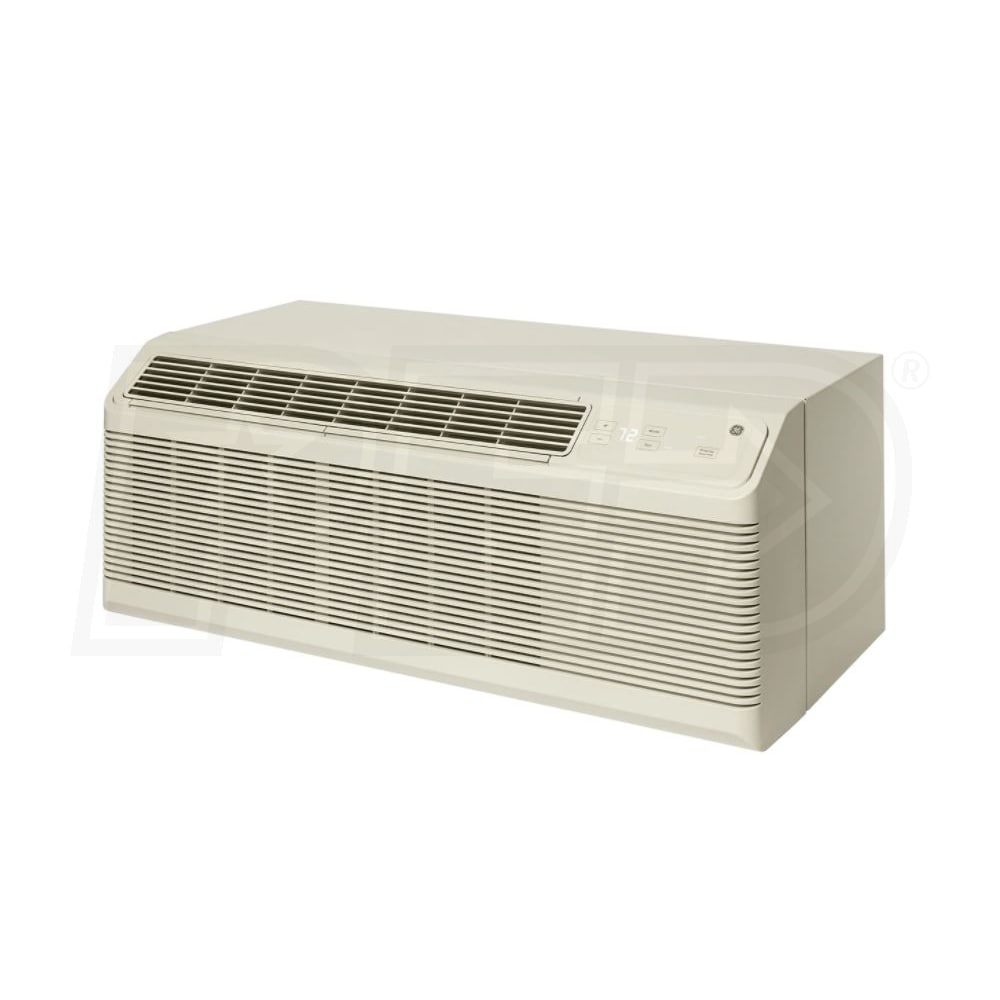

GE Zoneline - 15k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - Makeup Air - 208/230V

Model:

AZ65H15DBM

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
GE Zoneline - 15k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - Makeup Air - 208/230V
GE Zoneline - 15k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - Makeup Air - 208/230V
Model: AZ65H15DBM
Was $2,303.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    GE appliances makes every day better by answering to real-life needs. They do this by simplifying routines with next generation features. GE Zoneline packaged terminal air conditioners (PTAC) offer unrivaled reliability and consistent performance. Thanks to the integrated structural components, GE Zoneline PTACs are easy to maintain and service. When it comes to guest comfort, GE Zoneline PTAC is the best choice.
  • Heat and Freeze Sentinels
  • The GE Zoneline PTAC comes with specially designed sentinels that prevent the unit from overheating or freezing. This feature reduces operating cost as well as improving room comfort.
  • Makeup Air
  • The GE Zoneline PTAC with Makeup Air removes the need to install duct work by allowing fresh air into room through the Zoneline PTAC instead.
  • Two DC Fan Motors
  • Independent fan motors provide a quiet and more exact airflow for each heating and cooling function.
  • Large Cross-Flow Blower
  • While providing efficient heating and cooling performance, the airflow of a GE Zoneline PTAC is optimized for a balanced sound that is hardly noticeable.
  • Electronic Temperature Limiting
  • Temperature limits are preset to avoid excessive temperature swings, so seasonal adjustments are not necessary.
  • Baked-On Mastic Sound Barrier
  • The GE Zoneline PTAC Provides a heavy-duty barrier that covers the back of the unit for sound insulation.
  • Electronic Touch Controls
  • All the operations can be handled with the Easy-to-use controls, providing a user-friendly experience.
  • Product Note
    PTAC units require a power cord, wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

AZ65H15DBM
specs product image PID-113895
Overview
Product Category
PTAC Unit
UPC
084691848592
General Information
Type
PTAC
Product Line
AZ65H
Product Category
PTAC Unit
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Refrigerant Type
R-410a
Electric Heat
Yes
Performance
Cooling BTU
15000
Cooling Capacity
14500 BTU
Heating Capacity
13500 BTU
Moisture Removal
4.8 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.6
Cooling Power Input
1360 Watts
Maximum Air Flow
370 CFM
Heating Power Input
1165 Watts
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
16 Inches
Product Width
42 Inches
Product Depth
20 13/16 Inches
Product Weight
130 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
