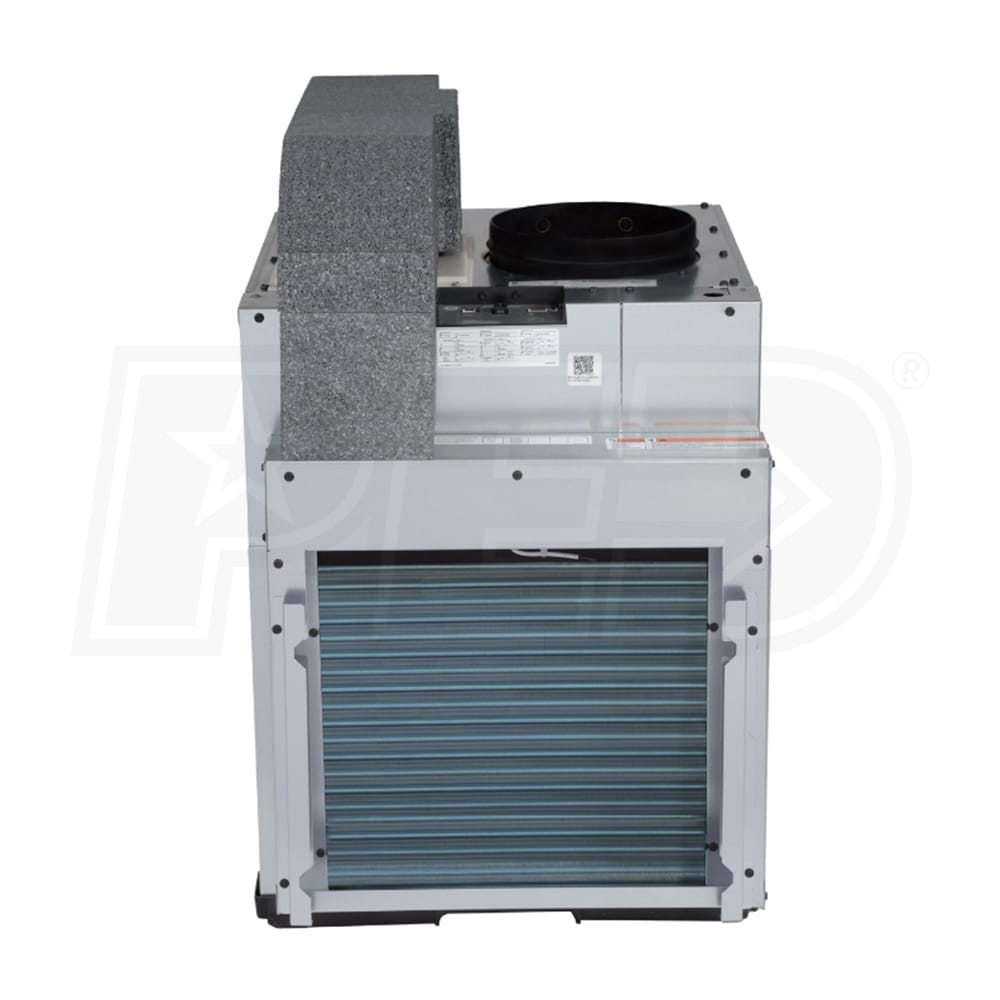

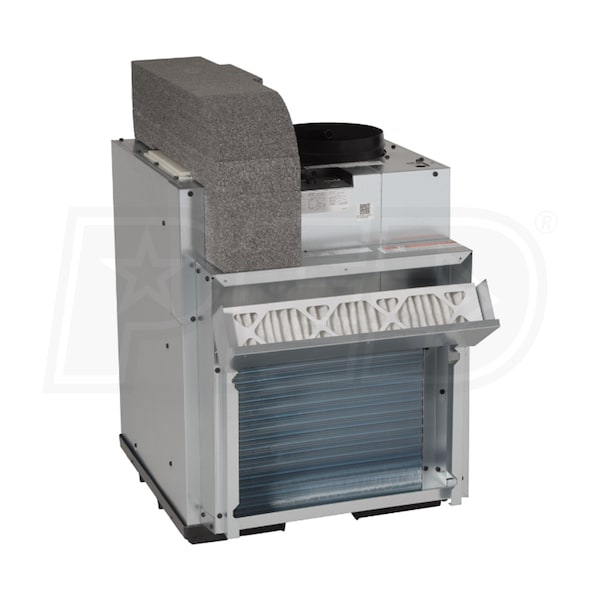

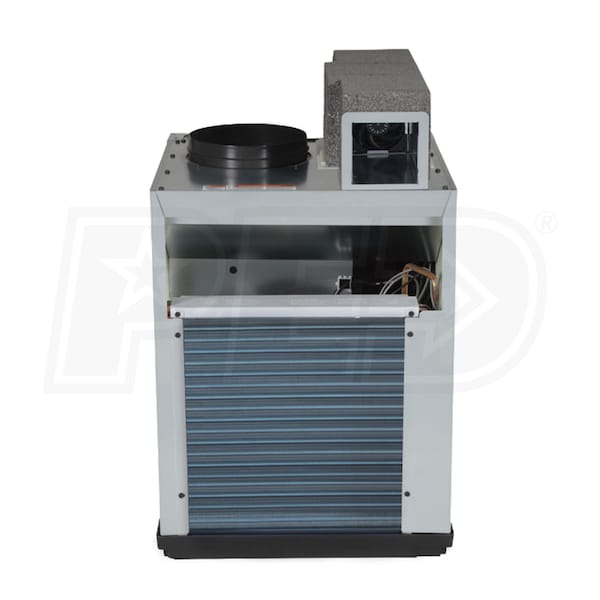

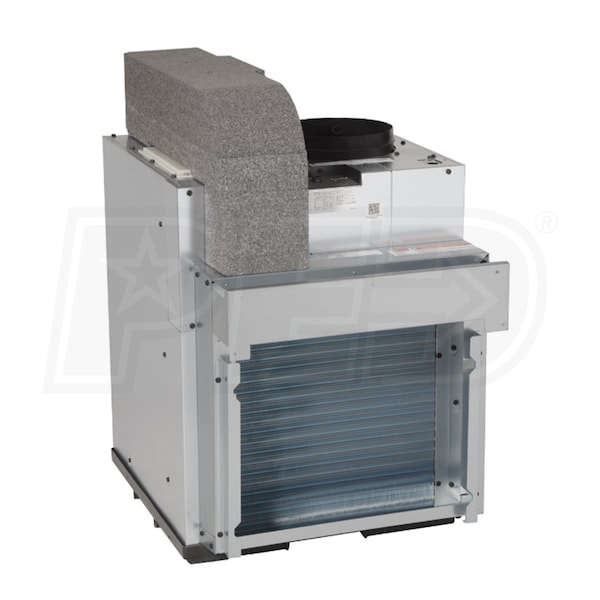

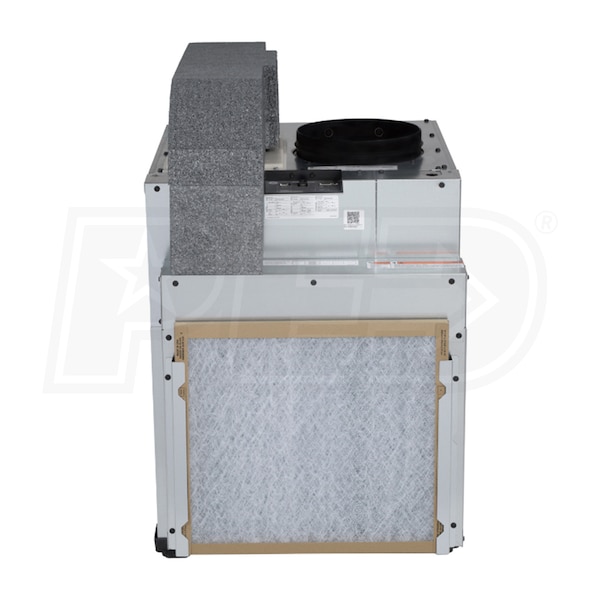

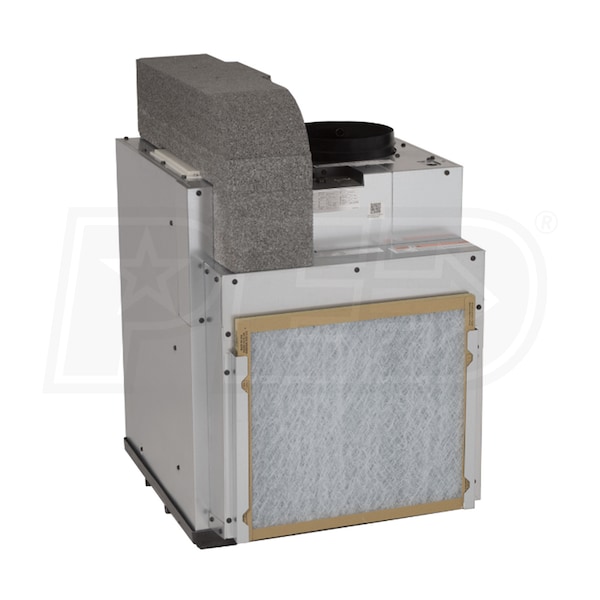

GE Zoneline® UltimateV12™ - 12k BTU Packaged Vertical Air Conditioner with Makeup Air - 208/230 Volt
Model:
AZ9VH12DBM
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Adjustable Speed Makeup Air
- With makeup air technology, the GE Zoneline® UltimateV12™ can provide precise airflow. The efficient UltimateV12™ saves energy by cycling makeup air delivery based on occupancy with a sold separate occupancy detecting thermostat.
- Inverter Technology
- With a cooling capacity range from 5.2k BTU to 16.2k BTU and a heating capacity range from 4.5k BTU to 13k BTU, inverter technology enables variable speed operation, providing improved efficiency and consistent room temperatures for total room comfort.
- Improved Sound Quality
- Operating at slower speeds and smoothly changing speeds, the GE Zoneline® UltimateV12™ delivers quiet cooling power and keeps the volume down for a good night's sleep.
- Enhanced Dehumidification
- Featuring three selectable levels of dehumidification and intelligent monitoring, the GE Zoneline® UltimateV12™ can maintain comfortable room conditions and reduce humidity, in almost any environment.
- Corrosion Protection
- With a standard corrosion protection treatment, the GE Zoneline® UltimateV12™ has an exclusive rust-proof base pan and bulkhead to ensure long lasting performance, even in challenging environments.
- Onboard Diagnostics
- With onboard electronic controls, you get clear and fast diagnosis of data or fault codes.
- SmartHQ™ Wi-Fi Capable
- Get the ability to monitor multiple units, remotely, to ensure your guests' comfort. Download the SmartHQ™ App on your smart phone to get started.
GE appliances makes every day better by answering to real-life needs. They do this by simplifying routines with next generation features. Bringing a new level of intelligence and performance to the user-friendly GE lineup, the Zoneline® UltimateV12™ Packaged Vertical Air Conditioner is a vertically designed PTAC. Neither seen nor heard by residents or guests, the GE Zoneline® UltimateV12™ is an efficient cooling option, kept together in one internal unit with vertical airflow. Ideal for applications such as multifamily communities, high-end hotel rooms or assisted living facilities, the GE Zoneline® UltimateV12™ can be framed into a closet and remain unseen. The vertical design of the Zoneline® UltimateV12™ provides a simple ducting system, with one unit accommodating multiple rooms. To simplifying installation, the GE Zoneline® UltimateV12™ can be installed with the Insta-Platform™ and a wall plenum, both sold separately. These items will eliminate the need to have a customized platform built and save you time and money. The latest innovation in vertical air conditioners, inverter technology and adjustable speed makeup air deliver precise airflow for specific applications and exceptional efficiency and comfort. With features like Heat Sentinel, Freeze Sentinel, frost control and a defrost system, the GE Zoneline® UltimateV12™ Packaged Vertical Air Conditioner detects undesirable room temperatures and protects itself.
Product Note
GE recommends consulting an HVAC engineer to determine proper application. The GE AZ9V models with makeup air are not recommended for installation within two miles of coastal areas.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
AZ9VH12DBM
General Information
Type
Package
Product Line
UltimateV12
Product Category
PTAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Refrigerant Type
R-410A
Electric Heat
Yes
UPC
084691870906
Performance
Cooling Capacity
12000 BTU
Heating Capacity
11500 BTU
Moisture Removal
3.16 Pints/Hour
Cooling Power Input
970 Watts
Maximum Air Flow
465 CFM
Minimum Air Flow
380 CFM
Heating Power Input
925 Watts
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
15.9
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.6
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
7.5
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Cooling Amps
4.7
Heating Amps
4.4
Dimensions
Product Height
36 7/8 Inches
Product Width
23 5/8 Inches
Product Depth
28 3/8 Inches
Product Weight
145 Pounds
Shipping Weight
158 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
213607365
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Refrigeration System Warranty
5 Years
