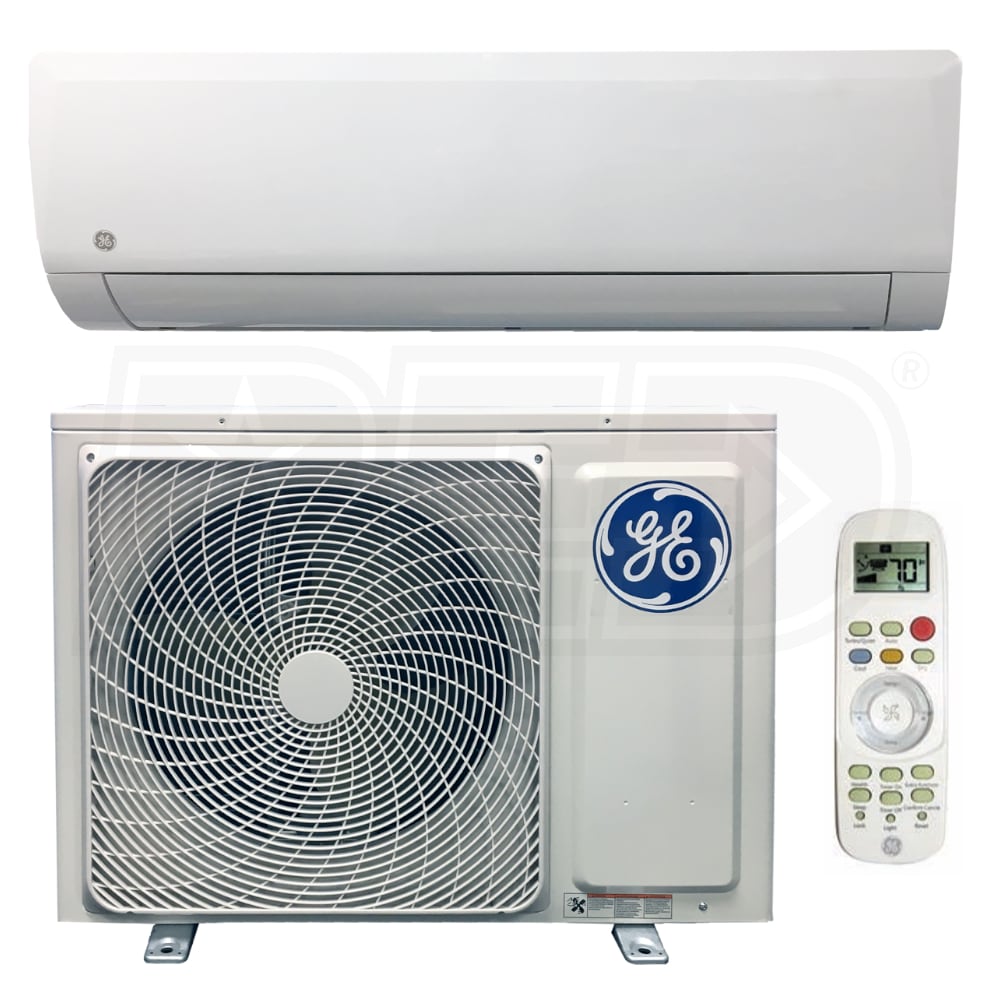

GE - 24k BTU Cooling + Heating - Altitude Series Wall Mounted Air Conditioning System - 20.0 SEER2
Model:
AS24PRD
+
Share This Product
Recommended Accessories
![eComfort expert image](http://www.powerequipmentdirect.com/images/experts/expert-avatar-15-18.png?v=1)
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Inverter Technology
- The Altitude Series features leading A-PAM DC Inverter Technology to provide efficient and quiet operation. The inverter is used to continuously regulate refrigerant flow and ensure there's no wasted energy.
- Low Ambient Heating
- With the ability to provide heat at ambient temperatures reaching -15° F, the Altitude Series won't leave you hanging when it gets cold outside. An included base pan heater ensures condensate water from the outdoor unit never freezes.
- Blue Fin Coating
- The Altitude Series outdoor unit features a special coating to whisk away condensate water, preventing rust and extending its lifespan.
- Effective Airflow
- Each wall mounted unit in the Altitude Series features 3D air flow that delivers air vertically and horizontally for even distribution throughout the room. An auto louver automatically adjusts air flow upward when cooling and downward when heating.
- Long Distance Air Supply
- Altitude Series wall mounted units feature an optimized fan motor and blower design that enables up to 60 feet of air flow.
- Warm Start
- GE's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
- (1) GE - 24k BTU - Altitude Series Outdoor Condenser - Single Zone Only (ASH124PRDWA)

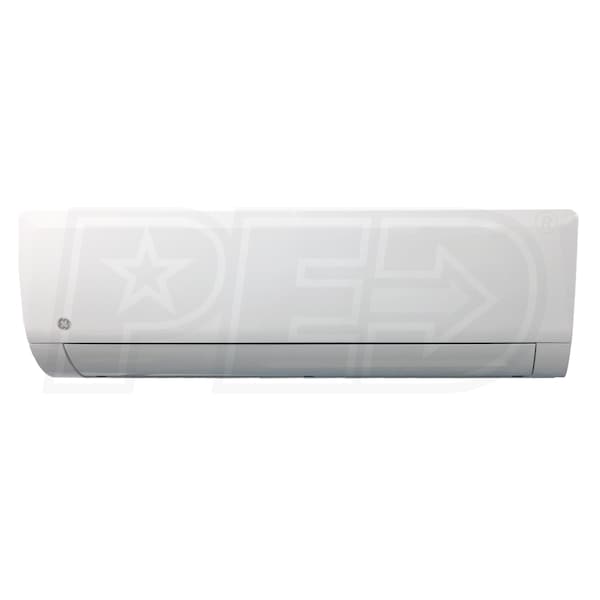

- (1) GE Altitude Series 24k BTU Wall Mounted Unit - For Single Zone (ASYW24PRDWB)
The GE Altitude Series mini split system is a go-to solution for efficient home heating and cooling. The Altitude Series features low ambient heating down to -15° F and includes a base pan heater to prevent condensed water from freezing and blocking drain openings. The innovative wall mounted design includes a variety of airflow and scheduling options to keep room temperature right where you want it. Experience the peak of home comfort technology with the Altitude Series from GE.
Product Includes
Product Note
GE products include a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://www.geappliances.com/ductless/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) GE - 24k BTU - Altitude Series Outdoor Condenser - Single Zone Only (ASH124PRDWA)
- (1) GE Altitude Series 24k BTU Wall Mounted Unit - For Single Zone (ASYW24PRDWB)
AS24PRD
![specs product image PID-107181](/products-image/150/mass_107177_.png)
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
Altitude Series
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Subscription Eligible
No
Performance
Cooling BTU
24000
Cooling Capacity
22000 BTU
Heating Capacity
27600 BTU
Cooling Power Input
1760 Watts
Heating Power Input
2630 Watts
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-15 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
20.0
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
12.5
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.5
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20 Amps
Recommended Breaker Size
30 Amps
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
30 Inches
Product Width
36 1/4 Inches
Product Depth
15 1/8 Inches
Product Weight
167.6 Pounds
Shipping Weight
194.9 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202588314
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASH124PRDWA
General Information
Type
Condenser
Product Line
Altitude Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Inverter Driven Rotary
Performance
Cooling BTU
24000
Cooling Capacity
22000 BTU
Heating Capacity
28000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
20
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10
Cooling Power Input
1760 Watts
Heating Power Input
2630 Watts
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-15 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20 Amps
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
83 Feet
Gas Connection Size
1/2 Inch
Suction Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
30 Inches
Product Width
36 1/4 Inches
Product Depth
15 1/8 Inches
Product Weight
130 Pounds
Shipping Weight
150 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ASYW24PRDWB
General Information
Type
Air Handler
Product Line
Altitude Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Motor Type
Digital Controlled
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
22000 BTU
Heating Capacity
28000 BTU
Maximum Air Flow
710 CFM
Minimum Air Flow
410 CFM
Minimum Sound Level
34 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
13 1/4 Inches
Product Width
43 7/8 Inches
Product Depth
9 5/8 Inches
Product Weight
38 Pounds
Shipping Weight
45 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
1/2 Inch
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
