GE Mini Splits ASH436NCDWA
GE Mini Splits ASH436NCDWA
Hover to zoom
1 Of 5

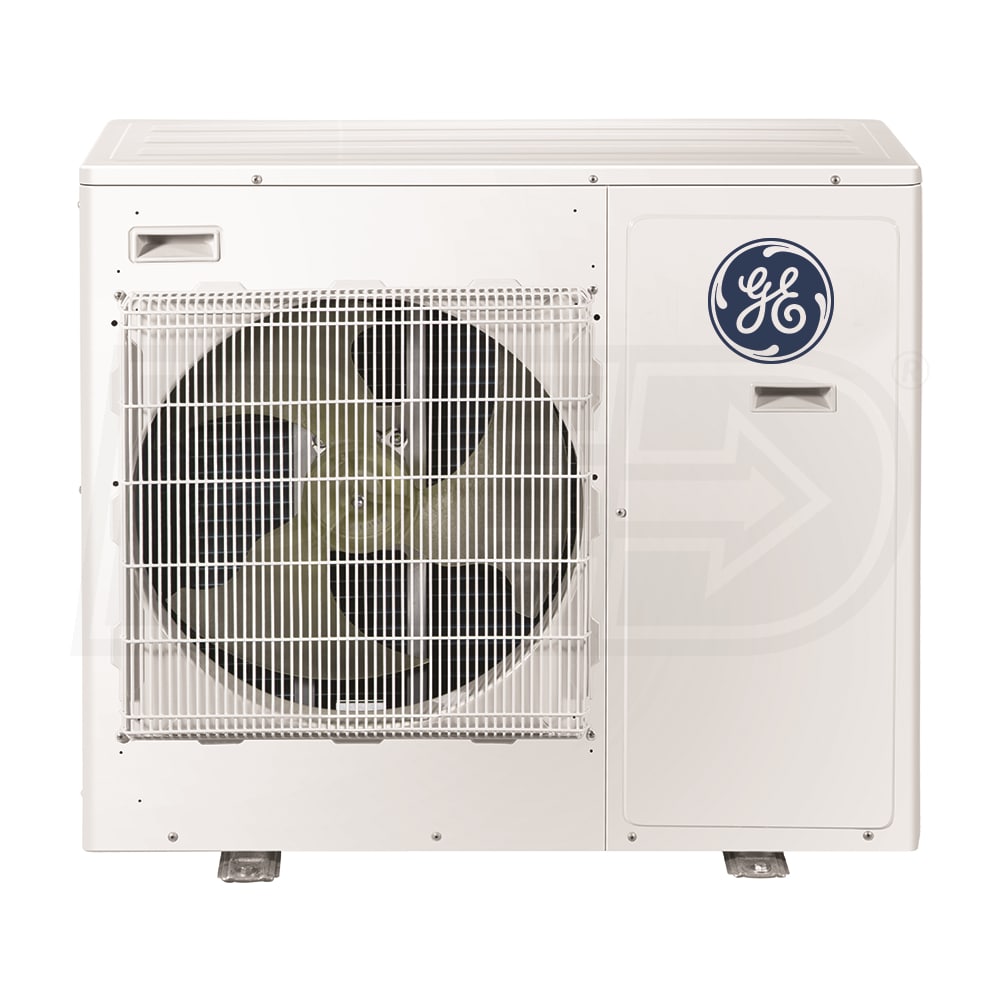

GE - 36k BTU - Endure Series Outdoor Condenser - For 2-4 Zones

Model:

ASH436NCDWA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
GE - 36k BTU - Endure Series Outdoor Condenser - For 2-4 Zones
GE - 36k BTU - Endure Series Outdoor Condenser - For 2-4 Zones
Model: ASH436NCDWA
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Endure Multi Series from GE was designed with innovative technology to achieve complete home comfort, even in frigid climates. The condenser features a blue fin coating to prevent rust from condensate water and extend its lifespan. Pair with a compatible Endure Multi Series indoor unit for efficient, on-demand heating and cooling.
  • Inverter Technology
  • The Endure Series features leading A-PAM DC Inverter Technology to provide efficient and quiet operation. The inverter is used to continuously regulate refrigerant flow and ensure there's no wasted energy.
  • Low Ambient Heating
  • With the ability to provide heat at ambient temperatures reaching -15° F, the Endure Series won't leave you hanging when it gets cold outside. An included base pan heater ensures condensate water from the outdoor unit never freezes.
  • Blue Fin Coating
  • The Endure Series outdoor unit features a special coating to whisk away condensate water, preventing rust and extending its lifespan.
  • Warm Start
  • GE's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Product Note
    This product requires at least two compatible GE mini split indoor units and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.

    GE products include a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://www.geappliances.com/ductless/ within 60 days of installation.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ASH436NCDWA
specs product image PID-107800
Overview
Product Category
Mini Split System Components
General Information
Type
Outdoor Condenser
Product Line
Endure Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
59 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-15 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
1/2 Inch
Product Height
33 1/8 Inches
Product Width
37 3/8 Inches
Product Depth
13 3/8 Inches
Product Weight
198.4 Pounds
Shipping Weight
215 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
