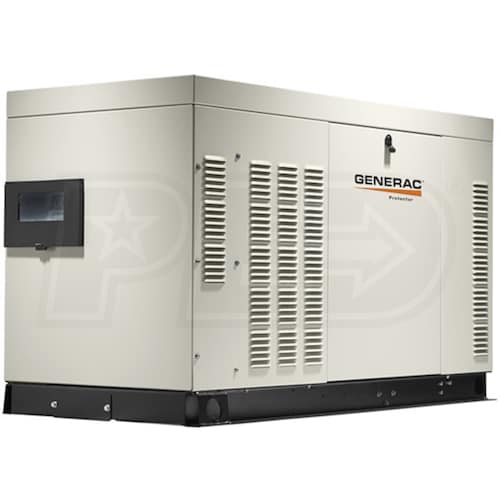

Generac Protector® Series 30kW Automatic Standby Generator (Aluminum) w/ Mobile Link™ (120/208V 3-Phase)
Model:
RG03015GNAX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Protector® Series Emergency Standby Power Generator
- For commercial buildings w/ 120/208V 3-Phase service
- Runs off natural gas or LP fuel source
- Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection
- Quiet-Test™
- Low-speed exercise mode for quieter weekly tests; 59 dB @ 23'

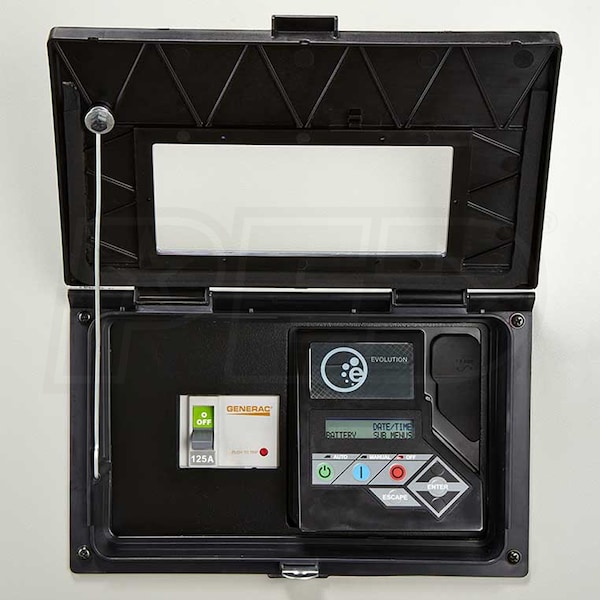

- Multi-Lingual Evolution™ Controller
- Two-Line LCD Display provides service & maintenance intervals
- Automotive-Style Engine
- Powerful Generac 1.5L DOHC 4-cylinder liquid-cooled engine
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Lockable, external viewing window for quick status check
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Transfer Switch (Sold Separately)
- Customize your system based on your actual application
- 5-Year Limited Warranty + 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
^Please Note - Requires Loading Dock or Forklift For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RG03015GNAX
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
807 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
30.6 Inches
Product Height
38.6 Inches
UPC
696471617429
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
30000 Watts
LP Power Capacity
30000 Watts
NG Fuel Consumption @ 50% Load
320 ft³/hr
NG Fuel Consumption @ 100% Load
492 ft³/hr
LP Fuel Consumption @ 50% Load
3.5 gallons/hr
LP Fuel Consumption @ 100% Load
5.4 gallons/hr
Rated Amps
104 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
59 Test (73 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
125 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 1.5L DOHC 4-Cylinder
Starting System
12v Auto Start
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
100 Amps
