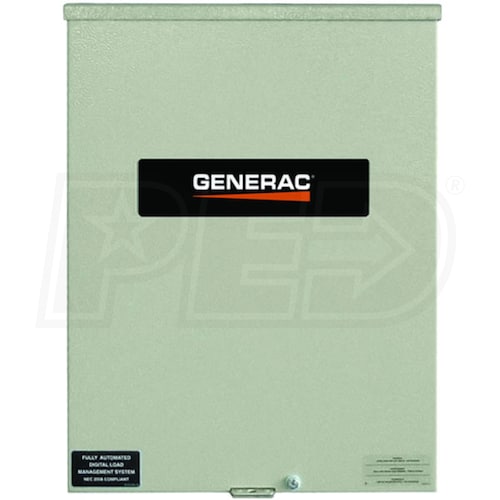

Generac 400-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)
Model:
RTSW400A3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 400-Amp Automatic Smart Transfer Switch
- For Generac Evolution
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Be Smart....Get More Out Of Your Generator
- Cycles power on and off as needed for different appliances
- Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- Service Entrance Rated
- Installs between main meter & service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (Gray)
- Tech Spec Summary: Only For Use w/ Generac Generators
- Load Transition Type: Open Transition
- Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
- 5-Year Limited Warranty - UL Listed
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RTSW400A3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
22 Inches
Product Height
10 Inches
UPC
696471619935
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Reviews
(12)
Generac RTSW400A3 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Ken, the eComfort Product Expert
Will the lugs in this switch allow for 2 4/0 conductors for (2) 200 amp panels?
EJ H.
from Ohio
December 13, 2016
My installer is asking if this unit has a breaker? Will mate this transfer switch to a Model 6721 16KW Generac.
Thank you.
Rob Smyth
from West Virginia
June 30, 2016
