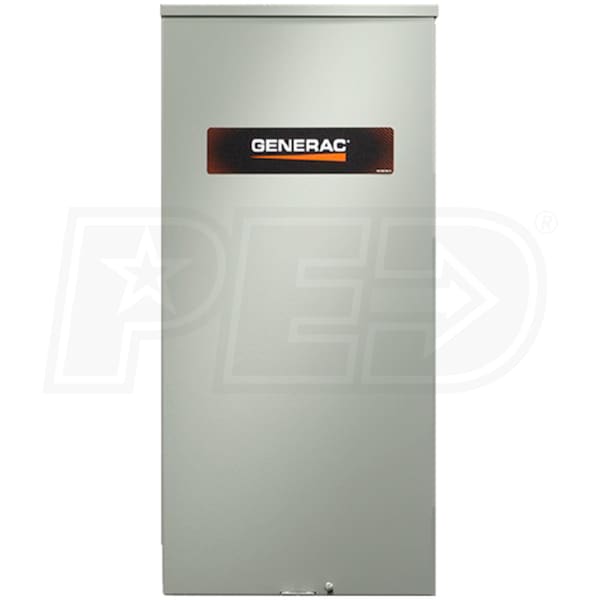

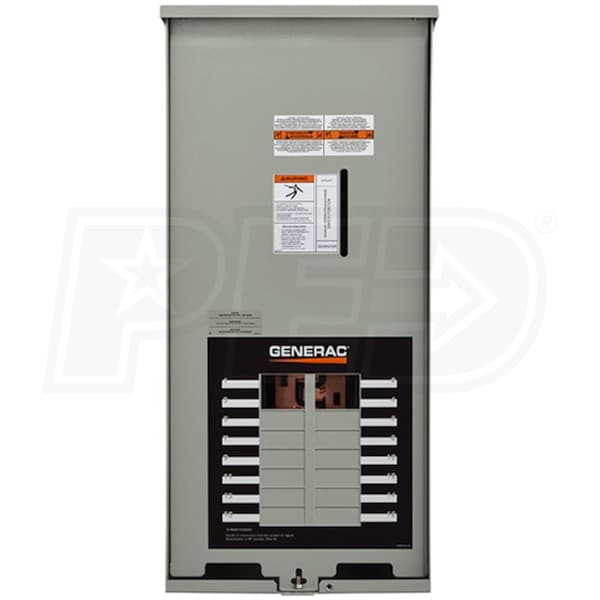

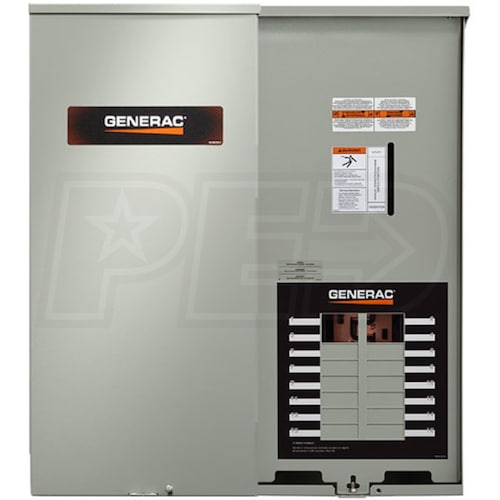

Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model:
RXG16EZA3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
4
$473.99
Factory-Direct
Model: 5703
$26.99
In-Stock
$26.99
Factory-Direct
$319.99
In-Stock
Features
Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Generac 100-Amp Outdoor AutomaticTransfer Switch
- Designed to operate with Generac air-cooled generators (7-16kW Only)
- 16-Circuit Integrated Load Center For Essential Circuit Backup
- For large main service & only partial generator backup
- Also when main electrical breaker panel is located outdoors
- 16-Circuit Breaker Panel (Breakers Not Included)
- Use with Siemens, Eaton, or Square D 1-Inch breakers
- Expandable to 24-Circuits
- Bottom (4) breaker spaces will accommodate tandem breakers
- UL/CUL Listed
- Suitable for use in optional standby systems (NEC702)
- Aluminum NEMA 3R Indoor/Outdoor Enclosure
- Electrostatically applied & baked powder paint to resist corrosion
- Heavy Duty Generac Contactor - Rated @ 250 VAC - 1P
- UL recognized device, designed for years of service
- *Note - Generator controller handles all timing, sensing & exercise
- Tech Spec: Only For Use w/ Generac Air-Cooled Generators
- Load Transition Type: Open Transition
- Withstand Rating: 10,000 Amps --- Lug Range: 1/0 - #14
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXG16EZA3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
39 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
30.1 Inches
Product Width
13.5 Inches
Product Height
6.91 Inches
UPC
696471069907
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
16000 Watts
UL Listed
Yes
