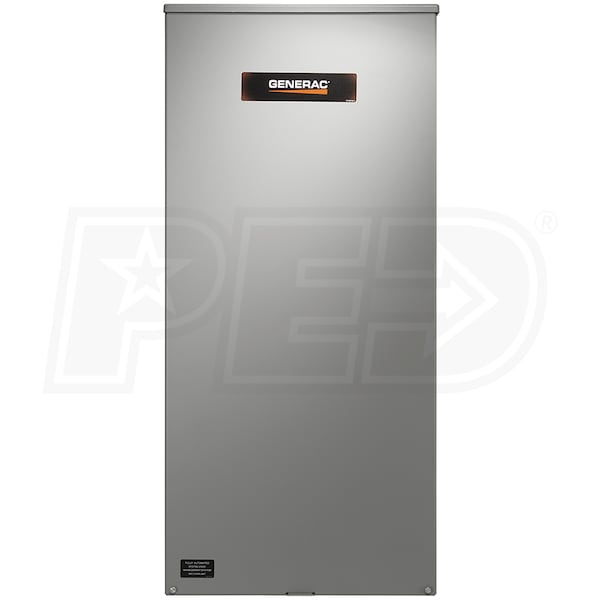

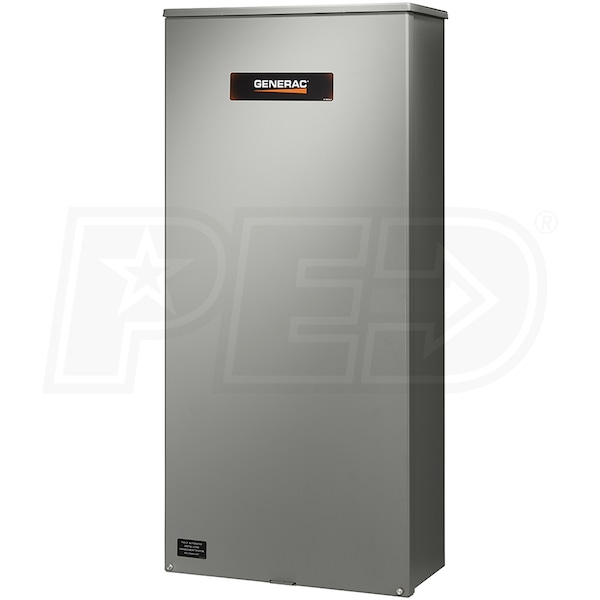

Generac 200-Amp Automatic Smart Transfer Switch & 20-Circuit Load Center w/ Power Management (Service Disc.)
Model:
RXGW20SHA3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Generac 200-Amp Auto Smart Transfer Switch w/ Power Management
- Compatible with Evolution™ or Nexus™ generator controllers
- Improved Design
- 35% Smaller footprint & greater branch circuit capacity
- Integrated 20-Circuit Load Center (Breakers Not Included)
- 40-Circuit capacity with the use of tandem breakers
- For use with Siemens, Murray, Square D and Eaton 1" breakers
- Accepts GFCI, AFCI and tandem breakers
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Be Smart....Get More Out Of Your Generator
- Cycles power on and off as needed for different appliances
- Manage Up To (4) Individual HVAC Loads - No Hardware Req.
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- Service Entrance Rated (Load Side & Line Side Disc. Breakers)
- Installs between main meter & service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (Gray)
- Tech Spec Summary: Only For Use w/ Generac Generators
- Load Transition Type: Open Transition
- Withstand Rating: 22,000 Amps --- Lug Range: 2/0 - #14
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXGW20SHA3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
45 Pounds
Certification
ETL
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
38.5 Inches
Product Width
17 Inches
Product Height
8 Inches
UPC
696471076219
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Max Circuits
20
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Reviews
(6)
Generac RXGW20SHA3 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
Manuals
RXGW20SHA3
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

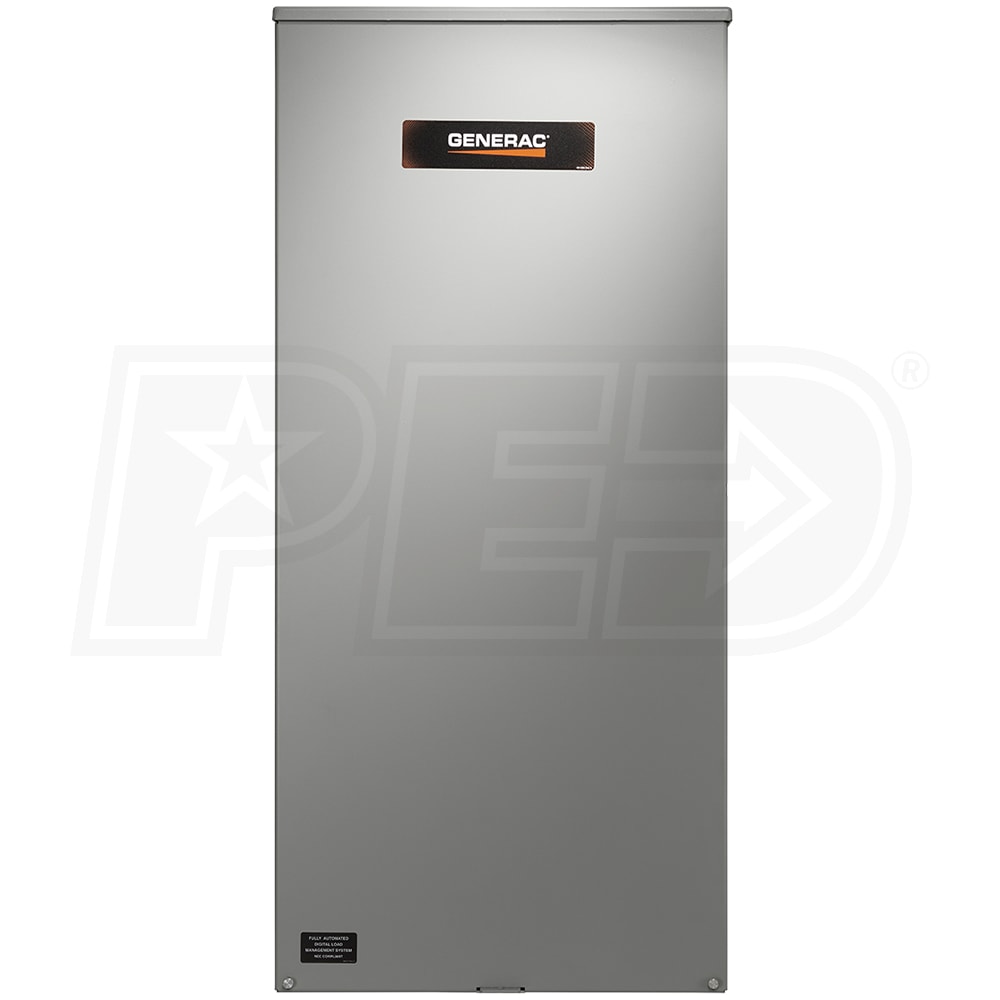

Generac 200-Amp Automatic Smart Transfer Switch & 20-Circuit Load Center w/ Power Management (Service Disc.)
