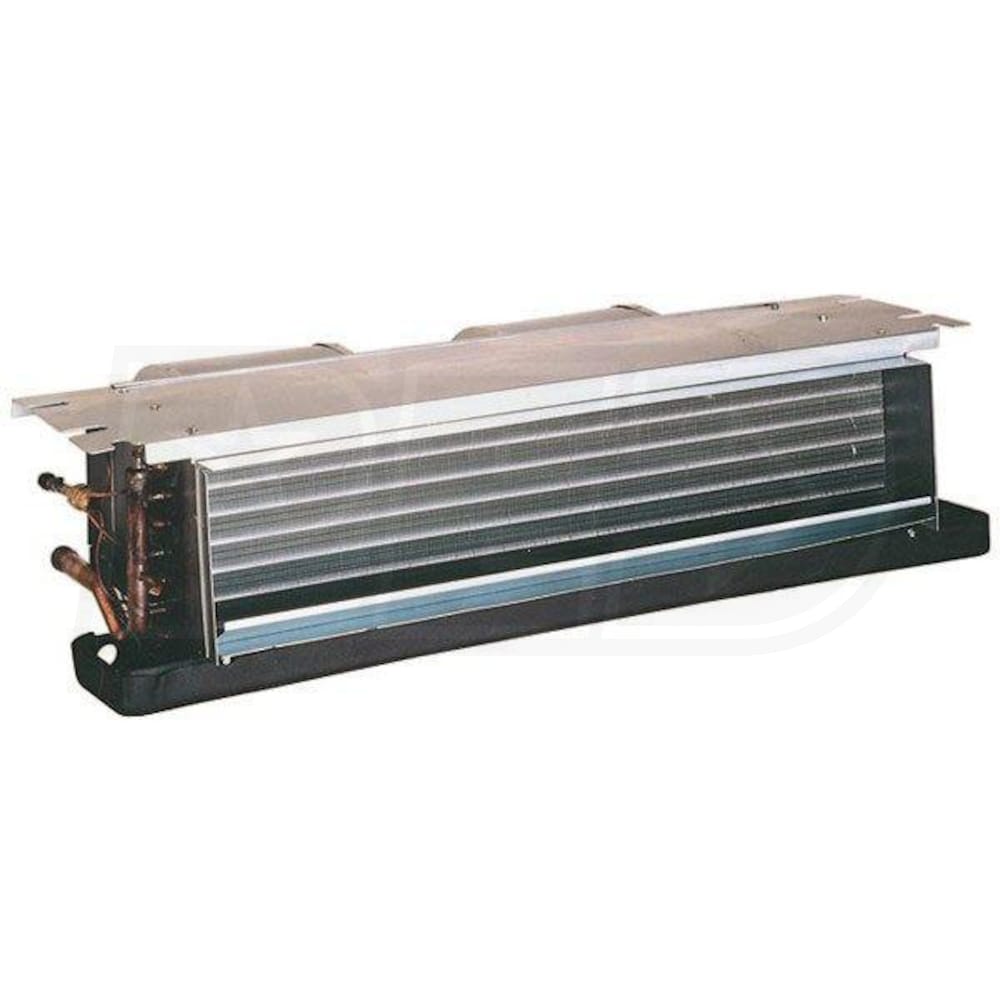

Goodman ACNF - 1.5 Ton - 4.8 kw Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - PSC Motor

Model:

ACNF180516

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman ACNF - 1.5 Ton - 4.8 kw Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - PSC Motor
Goodman ACNF - 1.5 Ton - 4.8 kw Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - PSC Motor
Model: ACNF180516
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF180516 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
  • Galvanized-Steel Construction
  • Galvanized-Steel is corrosion resistant, requiring less maintenance to remain at peak efficiency.
  • Easy Installation
  • The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ACNF180516
specs product image PID-26320
Overview
Product Category
Air Handler
UPC
663051523210
General Information
Type
Air Handler
Product Line
ACNF
Product Category
Air Handler
Refrigerant Type
R-22/R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Ceiling Mounted
Electric Heat
Yes
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling BTU
18000
Electric Heat Capacity
4.8 kW
Maximum Air Flow
660 CFM
Minimum Air Flow
595 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
23.5 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Product Height
10 Inches
Product Width
37 1/4 Inches
Product Depth
11 3/8 Inches
Product Weight
44 Pounds
Shipping Weight
59 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
