Features
- Galvanized-Steel Construction
- Galvanized-Steel is corrosion resistant, requiring less maintenance to remain at peak efficiency.
- Easy Installation
- The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF300816 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ACNF300816
Overview
Product Category
Air Handler
UPC
663051523326
Additional Model Numbers
ACNF300816, ACNF300816
General Information
Type
Air Handler
Product Line
ACNF
Product Category
Air Handler
Refrigerant Type
R-22/R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Ceiling Mounted
Electric Heat
Yes
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Electric Heat Capacity
7.3 kW
Maximum Air Flow
1005 CFM
Minimum Air Flow
890 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
36.1 Amps
Recommended Breaker Size
40 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Product Height
10 Inches
Product Width
49 1/4 Inches
Product Depth
11 3/8 Inches
Product Weight
46 Pounds
Shipping Weight
79 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Reviews
(1)
Goodman ACNF300816 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
How an Air Handler Works
If you live in a desert or tropical climate, chances are you have a central air...
How Central Air Conditioning Systems Work
Can you imagine life without air conditioning? Oppressive heat waves that can m...
How to Pick the Perfect Evaporator Coil & Air Handler
Evaporator coils and the refrigerant that flows through them are the veins and ...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

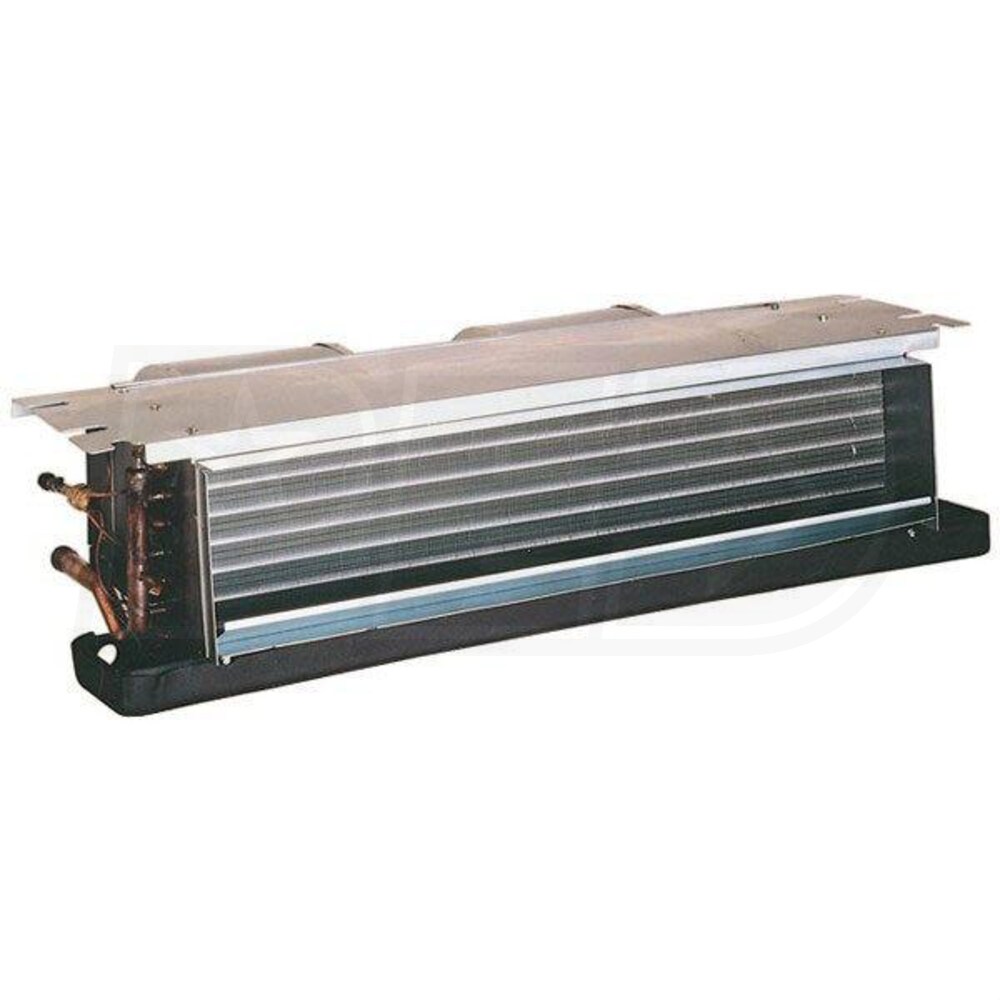

Goodman 2.5 Ton Air Conditioner Ceiling Mount Air Handler w/ 8 kW
